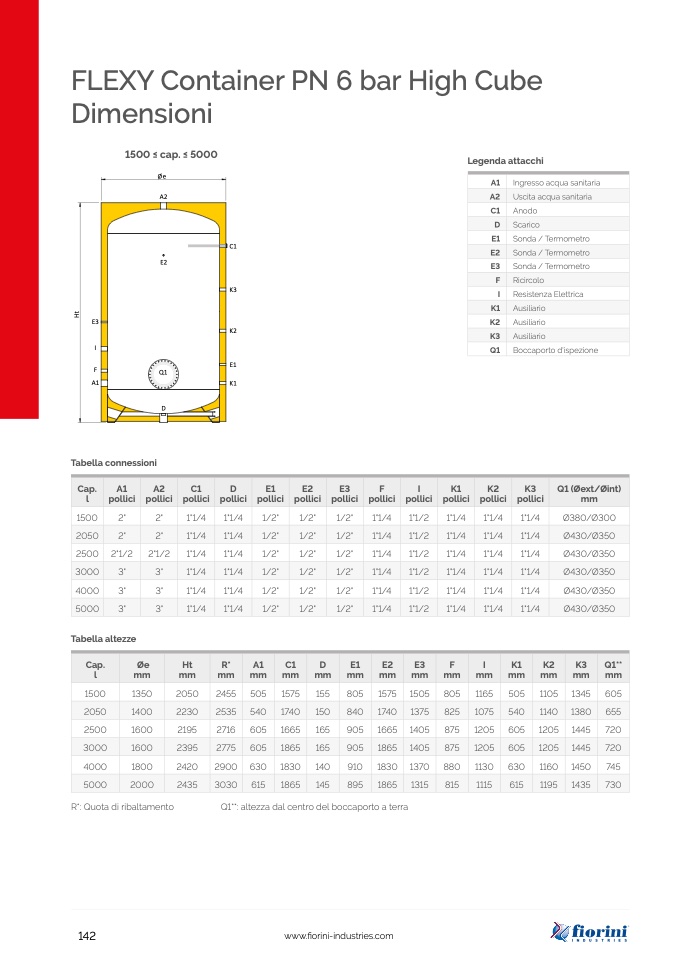

FLEXY Container PN 6 bar High Cube
Dimensioni
E3
I
F
A1
Øe
A2
E2
Q1
D
C1
K3
K2
E1
K1
Tabella connessioni
1500 ≤ cap. ≤ 5000
Legenda attacchi
A1
Ingresso acqua sanitaria
A2
Uscita acqua sanitaria
C1
Anodo
D
Scarico
E1
Sonda / Termometro
E2
Sonda / Termometro
E3
Sonda / Termometro
F
Ricircolo
I
Resistenza Elettrica
K1
Ausiliario
K2
Ausiliario
K3
Ausiliario
Q1
Boccaporto d'ispezione
H
t
Cap.
A1
A2
l
pollici pollici pollici pollici pollici pollici pollici pollici pollici pollici pollici pollici
mm
1500
2"
2"
1"1/4
1"1/4
1/2"
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
Ø380/Ø300
2050
2"
2"
1"1/4
1"1/4
1/2"
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
Ø430/Ø350
2500 2"1/2
2"1/2
1"1/4
1"1/4
1/2"
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
Ø430/Ø350
3000
3"
3"
1"1/4
1"1/4
1/2"
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
Ø430/Ø350
4000
3"
3"
1"1/4
1"1/4
1/2"
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
Ø430/Ø350
5000
3"
3"
1"1/4
1"1/4
1/2"
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
Ø430/Ø350
Tabella altezze
Cap.
Øe
Ht
R*
A1
C1
D
E1
E2
E3
F
I
K1
K2
K3
Q1**
l
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
1500
1350
2050
2455
505
1575
155
805
1575 1505
805
1165
505
1105 1345
605
2050
1400
2230
2535
540
1740
150
840
1740 1375
825
1075
540
1140 1380
655
2500
1600
2195
2716
605
1665
165
905
1665 1405
875
1205
605
1205 1445
720
3000
1600
2395
2775
605
1865
165
905
1865 1405
875
1205
605
1205 1445
720
4000
1800
2420
2900 630 1830
140
910
1830 1370
880
1130
630
1160 1450
745
5000
2000
2435
3030
615
1865
145
895
1865
1315
815
1115
615
1195
1435
730
R*: Quota di ribaltamento
Q1**: altezza dal centro del boccaporto a terra
C1
D
E1
E2
E3
F
I
K1
K2
K3
Q1 (Øext/Øint)
142
