High voltage

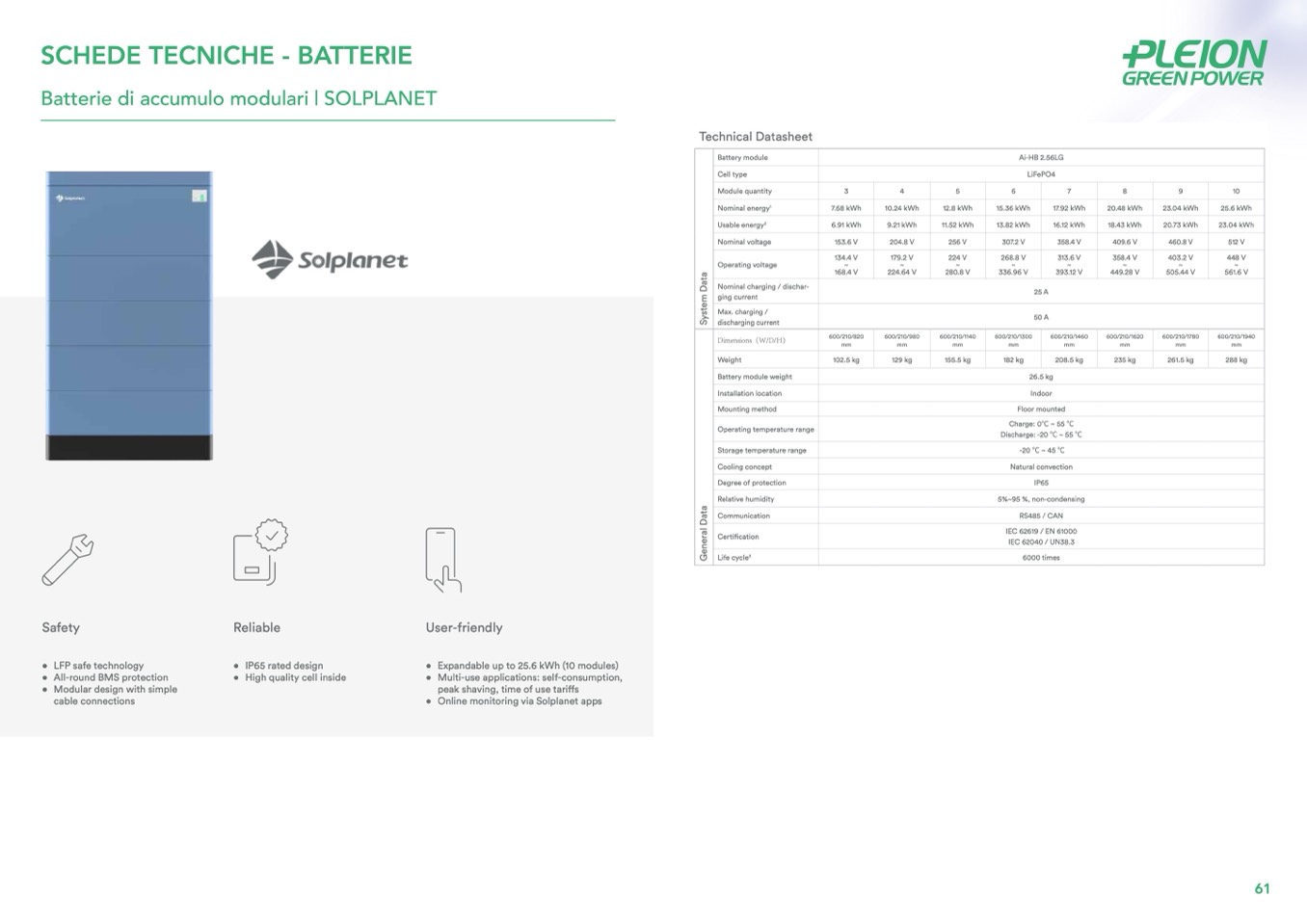

SCHEDE TECNICHE - BATTERIE

Battery

Batterie di accumulo modulari | SOLPLANET

solplanet.net

@Solplanet

1. Nominal energy is defined under the following conditions: cell voltage 2.0 ~ 3.65 V

，

1C charge & discharge at +25

°C

.

2. Usable energy is defined under the following conditions: 90 % DOD, 1C charge & discharge at +25

°C

.

Usable energy may vary depending on discharge, charge, environmental conditions and SOC % limits defined by the user.

3. Life cycle is defined under the following conditions: 80 % DOD, 0.2C charge & discharge at +25

°C

.

Version: May 2023

61

Technical Datasheet

G

e

n

e

r

a

l

D

a

t

a

S

y

s

t

e

m

D

a

t

a

Battery module

Ai-HB 2.56LG

Model:

Ai-HB 2.56LG

Safety

• LFP safe technology

• All-round BMS protection

• Modular design with simple

cable connections

Reliable

User-friendly

• IP65 rated design

• High quality cell inside

• Expandable up to 25.6 kWh (10 modules)

• Multi-use applications: self-consumption,

peak shaving, time of use tariffs

• Online monitoring via Solplanet apps

Cell type

LiFePO4

Module quantity

3

4

5

6

7

8

9

10

Nominal energy

1

7.68 kWh

10.24 kWh

12.8 kWh

15.36 kWh

17.92 kWh

20.48 kWh

23.04 kWh

25.6 kWh

Usable energy

2

6.91 kWh

9.21 kWh

11.52 kWh

13.82 kWh

16.12 kWh

18.43 kWh

20.73 kWh

23.04 kWh

Nominal voltage

153.6 V

204.8 V

256 V

307.2 V

358.4 V

409.6 V

460.8 V

512 V

Operating voltage

134.4 V

~

168.4 V

179.2 V

~

224.64 V

224 V

~

280.8 V

268.8 V

~

336.96 V

313.6 V

~

393.12 V

358.4 V

~

449.28 V

403.2 V

~

505.44 V

448 V

~

561.6 V

Nominal charging / dischar-

ging current

25 A

Max. charging /

discharging current

50 A

Dimensions(W/D/H)

600/210/820

600/210/980

600/210/1140

600/210/1300

600/210/1460

600/210/1620

600/210/1780

600/210/1940

mm

mm

mm

mm

mm

mm

mm

mm

Weight

102.5 kg

129 kg

155.5 kg

182 kg

208.5 kg

235 kg

261.5 kg

288 kg

Battery module weight

26.5 kg

Installation location

Indoor

Mounting method

Floor mounted

Operating temperature range

Charge: 0

°C

~ 55

°C

Discharge: -20

°C

~ 55

°C

Storage temperature range

-20

°C

~ 45

°C

Cooling concept

Natural convection

Degree of protection

IP65

Relative humidity

5%~95 %, non-condensing

Communication

RS485 / CAN

Certification

IEC 62619 / EN 61000

IEC 62040 / UN38.3

Life cycle

3

6000 times
