KESSEL AG

Spare parts catalogue 2021

1. Backwater protection

11

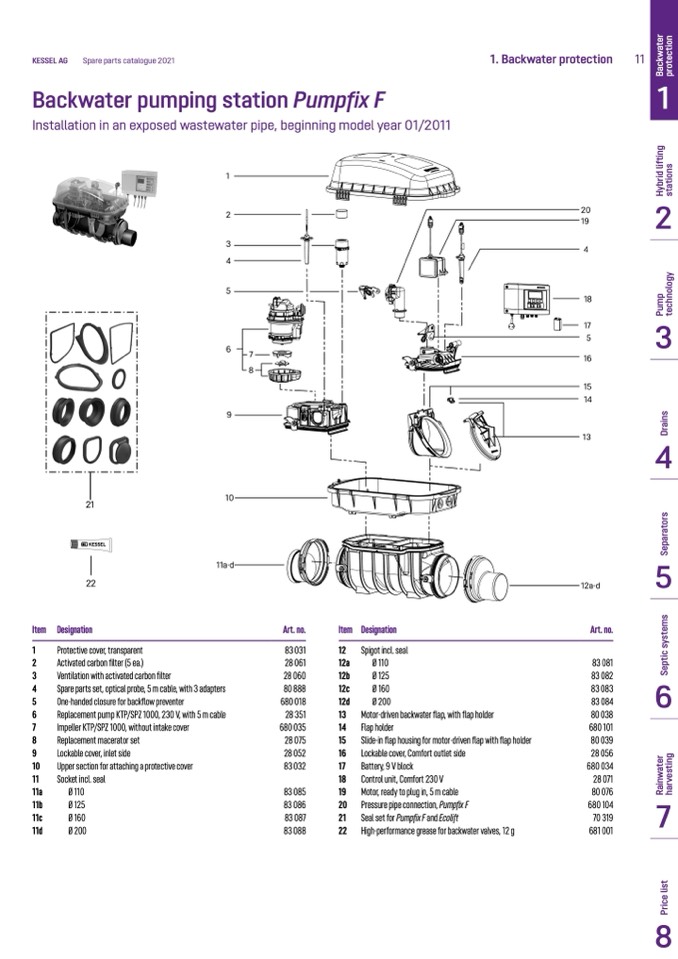

Backwater pumping station Pumpfix F

Installation in an exposed wastewater pipe, beginning model year 01/2011

1

2

3

4

5

6

7

8

21

22

Item Designation

Art. no.

83 031

28 061

28 060

80 888

680 018

28 351

680 035

28 075

28 052

83 032

83 085

83 086

83 087

83 088

Item Designation

12 Spigot incl. seal

12a

Ø 110

12b

Ø 125

12c

Ø 160

12d

Ø 200

13 Motor-driven backwater flap, with flap holder

14 Flap holder

15 Slide-in flap housing for motor-driven flap with flap holder

16 Lockable cover, Comfort outlet side

17

Battery, 9 V block

18 Control unit, Comfort 230 V

19 Motor, ready to plug in, 5 m cable

20 Pressure pipe connection, Pumpfix F

21 Seal set for Pumpfix F and Ecolift

22 High-performance grease for backwater valves, 12 g

1

Protective cover, transparent

2

Activated carbon filter (5 ea.)

3

Ventilation with activated carbon filter

4

Spare parts set, optical probe, 5 m cable, with 3 adapters

5

One-handed closure for backflow preventer

6

Replacement pump KTP/SPZ 1000, 230 V, with 5 m cable

7

Impeller KTP/SPZ 1000, without intake cover

8

Replacement macerator set

9

Lockable cover, inlet side

10

Upper section for attaching a protective cover

11

Socket incl. seal

11a

Ø 110

11b

Ø 125

11c

Ø 160

11d

Ø 200

1

2

3

4

5

20

19

4

18

17

5

16

15

14

13

12a-d

Art. no.

83 081

83 082

83 083

83 084

80 038

680 101

80 039

28 056

680 034

28 071

80 076

680 104

70 319

681 001

6

8

9

10

11a-d

7
