1. Backwater protection

Spare parts catalogue 2021

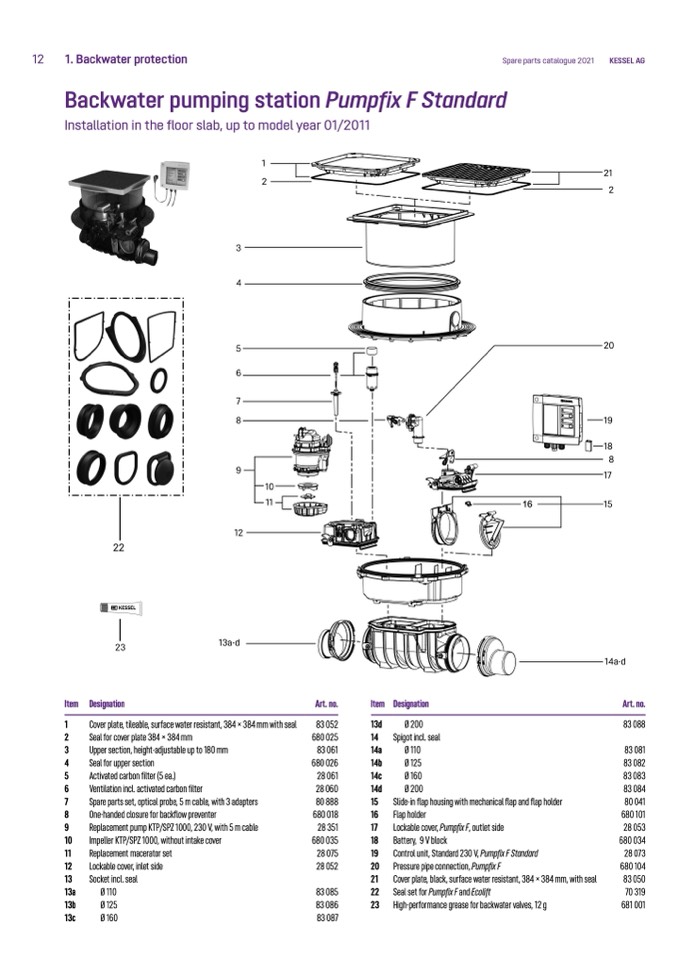

Backwater pumping station Pumpfix F Standard

KESSEL AG

21

2

Installation in the floor slab, up to model year 01/2011

22

23

Item Designation

Art. no.

83 052

680 025

83 061

680 026

28 061

28 060

80 888

680 018

28 351

680 035

28 075

28 052

83 085

83 086

83 087

Item Designation

14a-d

Art. no.

83 088

83 081

83 082

83 083

83 084

80 041

680 101

28 053

680 034

28 073

680 104

83 050

70 319

681 001

1

Cover plate, tileable, surface water resistant, 384 × 384 mm with seal

2

Seal for cover plate 384 × 384 mm

3

Upper section, height-adjustable up to 180 mm

4

Seal for upper section

5

Activated carbon filter (5 ea.)

6

Ventilation incl. activated carbon filter

7

Spare parts set, optical probe, 5 m cable, with 3 adapters

8

One-handed closure for backflow preventer

9

Replacement pump KTP/SPZ 1000, 230 V, with 5 m cable

10

Impeller KTP/SPZ 1000, without intake cover

11

Replacement macerator set

12

Lockable cover, inlet side

13

Socket incl. seal

13a

Ø 110

13b

Ø 125

13c

Ø 160

13d

Ø 200

14 Spigot incl. seal

14a

Ø 110

14b

Ø 125

14c

Ø 160

14d

Ø 200

15 Slide-in flap housing with mechanical flap and flap holder

16 Flap holder

17

Lockable cover, Pumpfix F, outlet side

18 Battery, 9 V block

19 Control unit, Standard 230 V, Pumpfix F Standard

20 Pressure pipe connection, Pumpfix F

21 Cover plate, black, surface water resistant, 384 × 384 mm, with seal

22 Seal set for Pumpfix F and Ecolift

23 High-performance grease for backwater valves, 12 g

1

2

3

4

5

6

7

8

9

10

11

12

13a-d

16

20

19

18

8

17

15
