14

1. Backwater protection

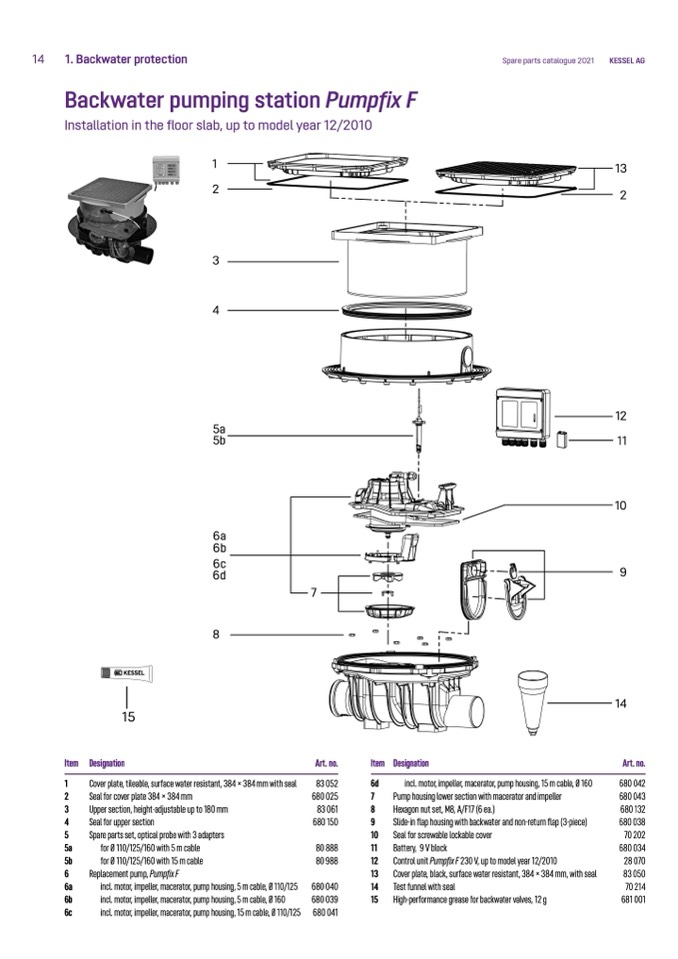

Backwater pumping station Pumpfix F

Installation in the floor slab, up to model year 12/2010

Spare parts catalogue 2021

KESSEL AG

13

2

Item

1

2

3

4

5

5a

5b

6

6a

6b

6c

15

Designation

Art. no.

83 052

680 025

83 061

680 150

80 888

80 988

680 040

680 039

680 041

Item Designation

Cover plate, tileable, surface water resistant, 384 × 384 mm with seal

Seal for cover plate 384 × 384 mm

Upper section, height-adjustable up to 180 mm

Seal for upper section

Spare parts set, optical probe with 3 adapters

for Ø 110/125/160 with 5 m cable

for Ø 110/125/160 with 15 m cable

Replacement pump, Pumpfix F

incl. motor, impeller, macerator, pump housing, 5 m cable, Ø 110/125

incl. motor, impeller, macerator, pump housing, 5 m cable, Ø 160

incl. motor, impeller, macerator, pump housing, 15 m cable, Ø 110/125

6d

incl. motor, impeller, macerator, pump housing, 15 m cable, Ø 160

7

Pump housing lower section with macerator and impeller

8

Hexagon nut set, M8, A/F17 (6 ea.)

9

Slide-in flap housing with backwater and non-return flap (3-piece)

10 Seal for screwable lockable cover

11

Battery, 9 V block

12 Control unit Pumpfix F 230 V, up to model year 12/2010

13 Cover plate, black, surface water resistant, 384 × 384 mm, with seal

14 Test funnel with seal

15 High-performance grease for backwater valves, 12 g

1

2

3

4

5a

5b

6a

6b

6c

6d

8

7

12

11

10

9

14

Art. no.

680 042

680 043

680 132

680 038

70 202

680 034

28 070

83 050

70 214

681 001
