18

1. Backwater protection

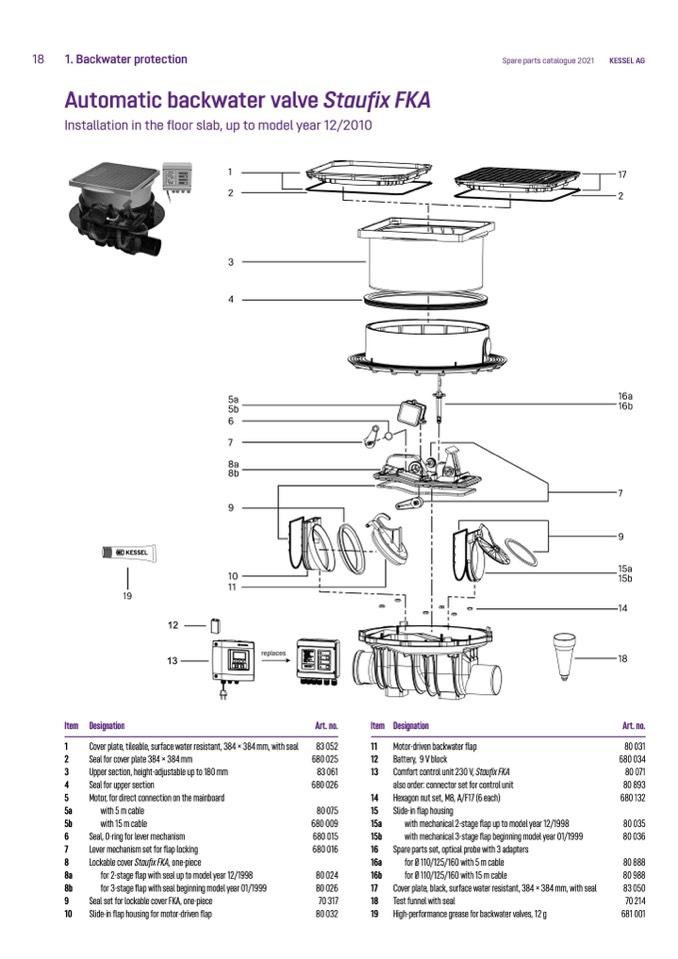

Automatic backwater valve Staufix FKA

Installation in the floor slab, up to model year 12/2010

Spare parts catalogue 2021

KESSEL AG

17

2

Item

1

2

3

4

5

5a

5b

6

7

8

8a

8b

9

10

Art. no.

83 052

680 025

83 061

680 026

80 075

680 009

680 015

680 016

80 024

80 026

70 317

80 032

Item Designation

19

Designation

1

2

3

4

5a

5b

6

7

8a

8b

9

10

11

16a

16b

7

9

15a

15b

14

18

Art. no.

80 031

680 034

80 071

80 893

680 132

80 035

80 036

80 888

80 988

83 050

70 214

681 001

12

13

replaces

Cover plate, tileable, surface water resistant, 384 × 384 mm, with seal

Seal for cover plate 384 × 384 mm

Upper section, height-adjustable up to 180 mm

Seal for upper section

Motor, for direct connection on the mainboard

with 5 m cable

with 15 m cable

Seal, O-ring for lever mechanism

Lever mechanism set for flap locking

Lockable cover Staufix FKA, one-piece

for 2-stage flap with seal up to model year 12/1998

for 3-stage flap with seal beginning model year 01/1999

Seal set for lockable cover FKA, one-piece

Slide-in flap housing for motor-driven flap

11

Motor-driven backwater flap

12 Battery, 9 V block

13 Comfort control unit 230 V, Staufix FKA

also order: connector set for control unit

14 Hexagon nut set, M8, A/F17 (6 each)

15 Slide-in flap housing

15a

with mechanical 2-stage flap up to model year 12/1998

15b

with mechanical 3-stage flap beginning model year 01/1999

16 Spare parts set, optical probe with 3 adapters

16a

for Ø 110/125/160 with 5 m cable

16b

for Ø 110/125/160 with 15 m cable

17

Cover plate, black, surface water resistant, 384 × 384 mm, with seal

18 Test funnel with seal

19 High-performance grease for backwater valves, 12 g

ersetzt
