20 1. Backwater protection

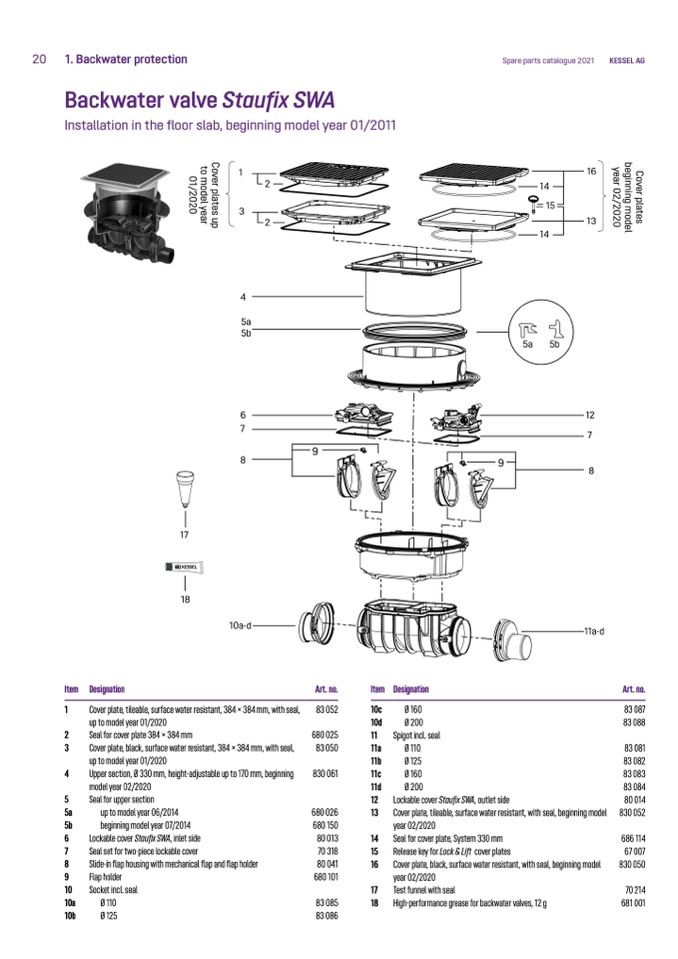

Backwater valve Staufix SWA
Installation in the floor slab, beginning model year 01/2011
Spare parts catalogue 2021
KESSEL AG
Item
1
2
3
4
5
5a
5b
6
7
8
9
10
10a
10b
Designation
Art. no.
83 052
680 025
83 050
830 061
680 026
680 150
80 013
70 318
80 041
680 101
83 085
83 086
Item Designation
Art. no.
83 087
83 088
83 081
83 082
83 083
83 084
80 014
830 052
686 114
67 007
830 050
70 214
681 001
17
18
Cover plate, tileable, surface water resistant, 384 × 384 mm, with seal,
up to model year 01/2020
Seal for cover plate 384 × 384 mm
Cover plate, black, surface water resistant, 384 × 384 mm, with seal,
up to model year 01/2020
Upper section, Ø 330 mm, height-adjustable up to 170 mm, beginning
model year 02/2020
Seal for upper section
up to model year 06/2014
beginning model year 07/2014
Lockable cover Staufix SWA, inlet side
Seal set for two-piece lockable cover
Slide-in flap housing with mechanical flap and flap holder
Flap holder
Socket incl. seal
Ø 110
Ø 125
10c
Ø 160
10d
Ø 200
11
Spigot incl. seal
11a
Ø 110
11b
Ø 125
11c
Ø 160
11d
Ø 200
12 Lockable cover Staufix SWA, outlet side
13 Cover plate, tileable, surface water resistant, with seal, beginning model
year 02/2020
14 Seal for cover plate, System 330 mm
15 Release key for Lock & Lift cover plates
16 Cover plate, black, surface water resistant, with seal, beginning model
year 02/2020
17
Test funnel with seal
18 High-performance grease for backwater valves, 12 g
