1. Backwater protection

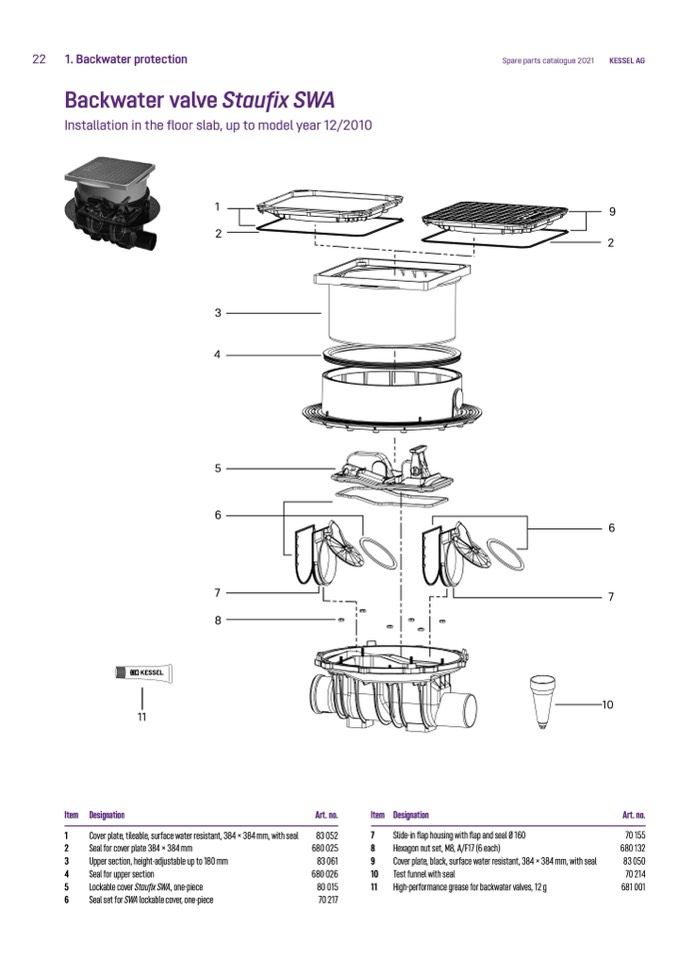

Backwater valve Staufix SWA

Installation in the floor slab, up to model year 12/2010

Spare parts catalogue 2021

KESSEL AG

9

2

Item Designation

Art. no.

83 052

680 025

83 061

680 026

80 015

70 217

Item Designation

Art. no.

70 155

680 132

83 050

70 214

681 001

11

1

Cover plate, tileable, surface water resistant, 384 × 384 mm, with seal

2

Seal for cover plate 384 × 384 mm

3

Upper section, height-adjustable up to 180 mm

4

Seal for upper section

5

Lockable cover Staufix SWA, one-piece

6

Seal set for SWA lockable cover, one-piece

7

Slide-in flap housing with flap and seal Ø 160

8

Hexagon nut set, M8, A/F17 (6 each)

9

Cover plate, black, surface water resistant, 384 × 384 mm, with seal

10 Test funnel with seal

11

High-performance grease for backwater valves, 12 g

1

2

3

4

5

6

7

8

6

7

10
