KESSEL AG
Spare parts catalogue 2021
1. Backwater protection
37

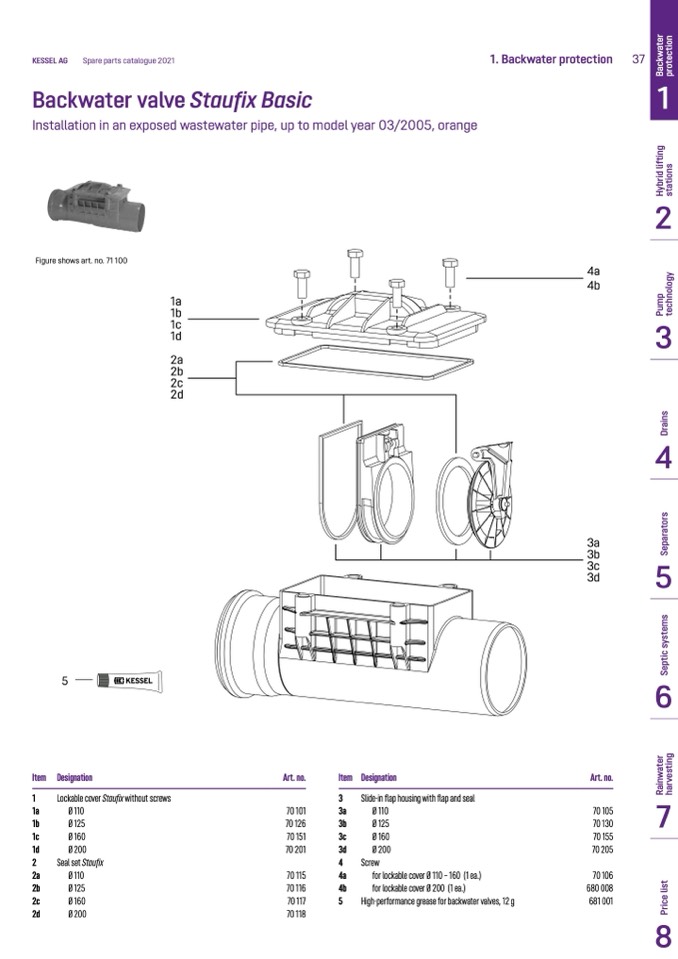

Backwater valve Staufix Basic
Installation in an exposed wastewater pipe, up to model year 03/2005, orange
1
2
Figure shows art. no. 71 100
4a
4b
1a
1b
1c
3
1d
2a
2b
2c
2d
5
6
Item Designation
1
Lockable cover Staufix without screws
1a
Ø 110
1b
Ø 125
1c
Ø 160
1d
Ø 200
2
Seal set Staufix
2a
Ø 110
2b
Ø 125
2c
Ø 160
2d
Ø 200
Art. no.
70 101
70 126
70 151
70 201
70 115
70 116
70 117
70 118
Item Designation
3
Slide-in flap housing with flap and seal
3a
Ø 110
3b
Ø 125
3c
Ø 160
3d
Ø 200
4
Screw
4a
for lockable cover Ø 110 – 160 (1 ea.)
4b
for lockable cover Ø 200 (1 ea.)
5
High-performance grease for backwater valves, 12 g
Art. no.
7
8
4
3a
3b
3c
5
3d
70 105
70 130
70 155
70 205
70 106
680 008
681 001
