KESSEL AG

Spare parts catalogue 2021

1. Backwater protection

45

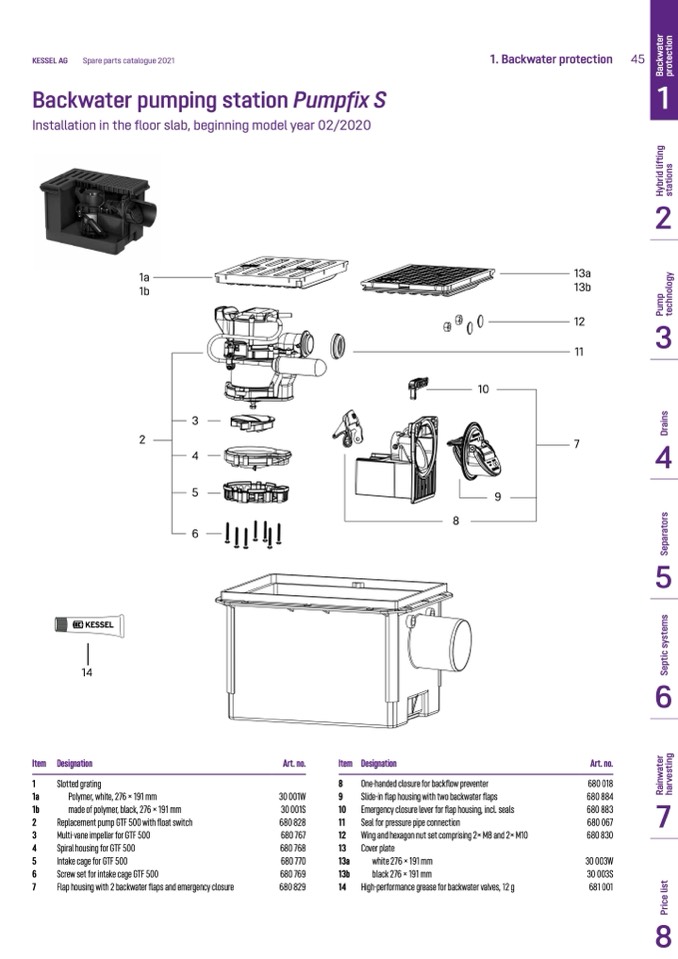

Backwater pumping station Pumpfix S

Installation in the floor slab, beginning model year 02/2020

1a

1b

1

2

12

3

11

14

Item Designation

5

6

1

Slotted grating

1a

Polymer, white, 276 × 191 mm

1b

made of polymer, black, 276 × 191 mm

2

Replacement pump GTF 500 with float switch

3

Multi-vane impeller for GTF 500

4

Spiral housing for GTF 500

5

Intake cage for GTF 500

6

Screw set for intake cage GTF 500

7

Flap housing with 2 backwater flaps and emergency closure

8

One-handed closure for backflow preventer

9

Slide-in flap housing with two backwater flaps

10 Emergency closure lever for flap housing, incl. seals

11

Seal for pressure pipe connection

12 Wing and hexagon nut set comprising 2× M8 and 2× M10

13 Cover plate

13a

white 276 × 191 mm

13b

black 276 × 191 mm

14 High-performance grease for backwater valves, 12 g

680 018

680 884

7

680 883

680 067

680 830

30 003W

30 003S

681 001

3

2

7

4

4

5

6

9

8

Art. no.

30 001W

30 001S

680 828

680 767

680 768

680 770

680 769

680 829

Item Designation

Art. no.

10

13a

13b

8
