46 1. Backwater protection

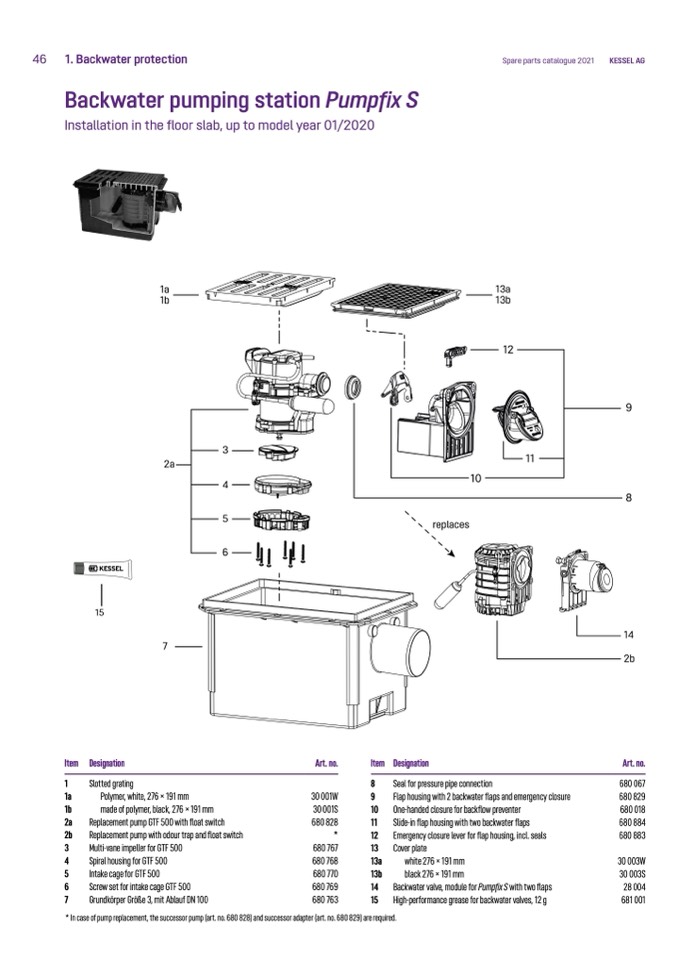

Backwater pumping station Pumpfix S

Spare parts catalogue 2021

KESSEL AG

Installation in the floor slab, up to model year 01/2020

15

Item Designation

7

1

Slotted grating

1a

Polymer, white, 276 × 191 mm

1b

made of polymer, black, 276 × 191 mm

2a

Replacement pump GTF 500 with float switch

2b

Replacement pump with odour trap and float switch

3

Multi-vane impeller for GTF 500

4

Spiral housing for GTF 500

5

Intake cage for GTF 500

6

Screw set for intake cage GTF 500

7

Grundkörper Größe 3, mit Ablauf DN 100

8

Seal for pressure pipe connection

9

Flap housing with 2 backwater flaps and emergency closure

10 One-handed closure for backflow preventer

11

Slide-in flap housing with two backwater flaps

12 Emergency closure lever for flap housing, incl. seals

13 Cover plate

13a

white 276 × 191 mm

13b

black 276 × 191 mm

14 Backwater valve, module for Pumpfix S with two flaps

15 High-performance grease for backwater valves, 12 g

1a

1b

13a

13b

12

11

10

replaces

2a

3

4

5

6

9

8

14

2b

Art. no.

680 067

680 829

680 018

680 884

680 883

30 003W

30 003S

28 004

681 001

* In case of pump replacement, the successor pump (art. no. 680 828) and successor adapter (art. no. 680 829) are required.

Art. no.

30 001W

30 001S

680 828

*

680 767

680 768

680 770

680 769

680 763

Item Designation
