KESSEL AG

Spare parts catalogue 2021

2. Hybrid lifting stations

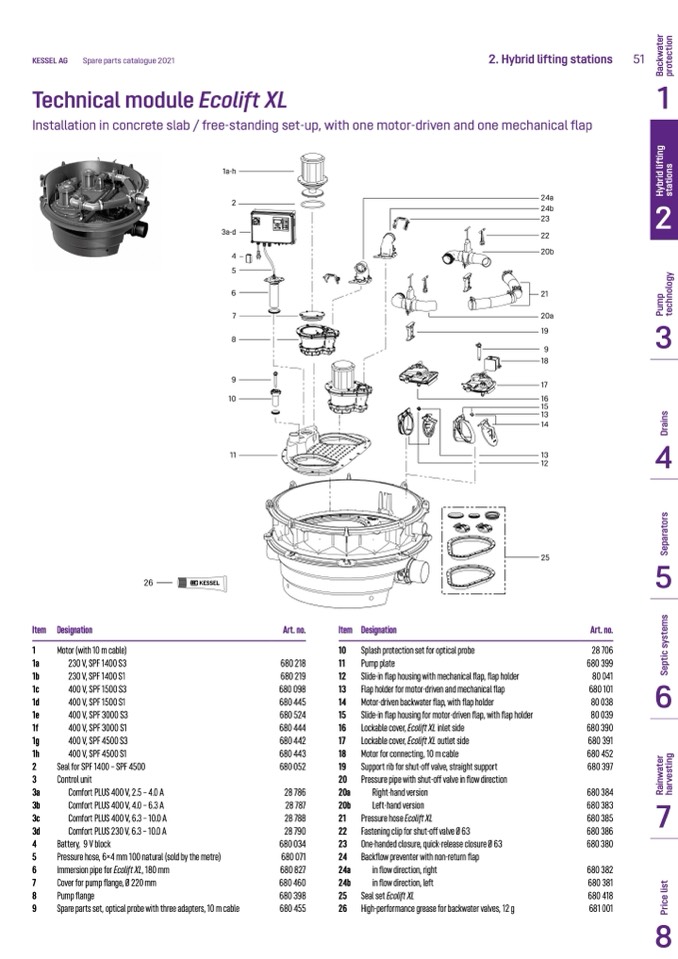

Technical module Ecolift XL

Installation in concrete slab / free-standing set-up, with one motor-driven and one mechanical flap

51

1

2

Item Designation

Art. no.

680 218

680 219

680 098

680 445

680 524

680 444

680 442

680 443

680 052

28 786

28 787

28 788

28 790

680 034

680 071

680 827

680 460

680 398

680 455

Item Designation

10 Splash protection set for optical probe

11

Pump plate

12 Slide-in flap housing with mechanical flap, flap holder

13 Flap holder for motor-driven and mechanical flap

14 Motor-driven backwater flap, with flap holder

15 Slide-in flap housing for motor-driven flap, with flap holder

16 Lockable cover, Ecolift XL inlet side

17

Lockable cover, Ecolift XL outlet side

18 Motor for connecting, 10 m cable

19 Support rib for shut-off valve, straight support

20 Pressure pipe with shut-off valve in flow direction

20a

Right-hand version

20b

Left-hand version

21 Pressure hose Ecolift XL

22 Fastening clip for shut-off valve Ø 63

23 One-handed closure, quick-release closure Ø 63

24 Backflow preventer with non-return flap

24a

in flow direction, right

24b

in flow direction, left

25 Seal set Ecolift XL

26 High-performance grease for backwater valves, 12 g

Art. no.

1

Motor (with 10 m cable)

1a

230 V, SPF 1400 S3

1b

230 V, SPF 1400 S1

1c

400 V, SPF 1500 S3

1d

400 V, SPF 1500 S1

1e

400 V, SPF 3000 S3

1f

400 V, SPF 3000 S1

1g

400 V, SPF 4500 S3

1h

400 V, SPF 4500 S1

2

Seal for SPF 1400 – SPF 4500

3

Control unit

3a

Comfort PLUS 400 V, 2.5 – 4.0 A

3b

Comfort PLUS 400 V, 4.0 – 6.3 A

3c

Comfort PLUS 400 V, 6.3 – 10.0 A

3d

Comfort PLUS 230 V, 6.3 – 10.0 A

4

Battery, 9 V block

28 706

680 399

5

Pressure hose, 6×4 mm 100 natural (sold by the metre)

6

Immersion pipe for Ecolift XL, 180 mm

7

Cover for pump flange, Ø 220 mm

8

Pump flange

9

Spare parts set, optical probe with three adapters, 10 m cable

26

5

80 041

6

680 101

80 038

80 039

680 390

680 391

680 452

680 397

680 384

680 383

7

680 385

680 386

680 380

680 382

680 381

680 418

681 001

1a-h

2

3a-d

4

5

6

7

8

9

10

11

24a

24b

23

22

20b

21

20a

19

9

18

17

16

15

13

14

12

25

3

1

3

4

8
