2. Hybrid lifting stations

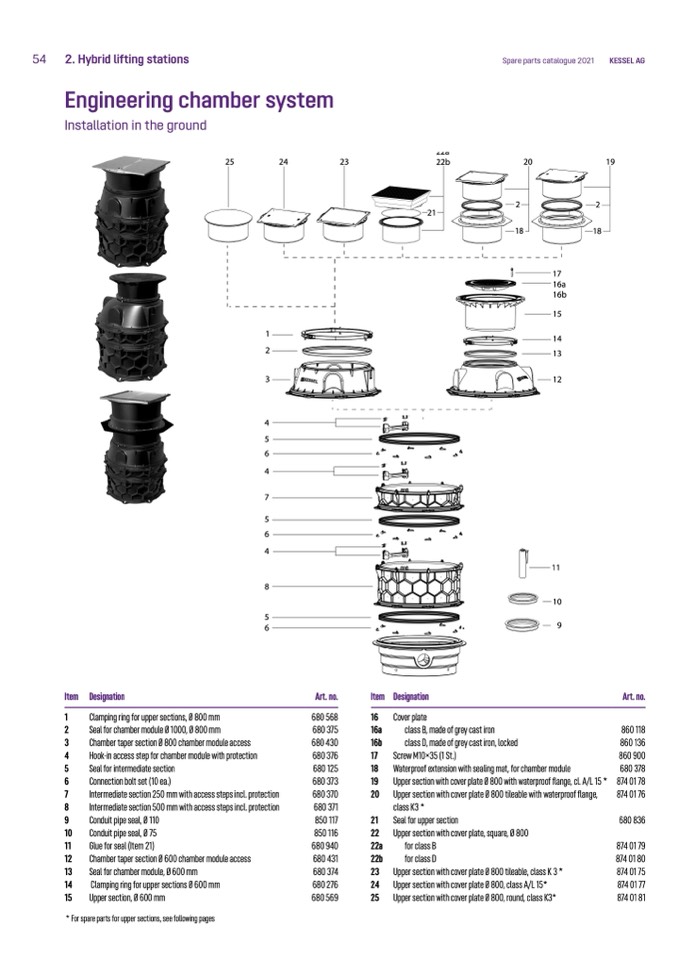

Engineering chamber system
Spare parts catalogue 2021
20
2
2
KESSEL AG
19
Installation in the ground
Item Designation
Art. no.
680 568
680 375
680 430
680 376
680 125
680 373
680 370
680 371
850 117
850 116
680 940
680 431
680 374
680 276
680 569
Item Designation
Art. no.
860 118
860 136
860 900
680 378
874 01 78
874 01 76
680 836
874 01 79
874 01 80
874 01 75
874 01 77
874 01 81
1
Clamping ring for upper sections, Ø 800 mm
2
Seal for chamber module Ø 1000, Ø 800 mm
3
Chamber taper section Ø 800 chamber module access
4
Hook-in access step for chamber module with protection
5
Seal for intermediate section
6
Connection bolt set (10 ea.)
7
Intermediate section 250 mm with access steps incl. protection
8
Intermediate section 500 mm with access steps incl. protection
9
Conduit pipe seal, Ø 110
10
Conduit pipe seal, Ø 75
11
Glue for seal (Item 21)
12
Chamber taper section Ø 600 chamber module access
13
Seal for chamber module, Ø 600 mm
14
Clamping ring for upper sections Ø 600 mm
15
Upper section, Ø 600 mm
16 Cover plate
16a
class B, made of grey cast iron
16b
class D, made of grey cast iron, locked
17
Screw M10×35 (1 St.)
18 Waterproof extension with sealing mat, for chamber module
19 Upper section with cover plate Ø 800 with waterproof flange, cl. A/L 15 *
20 Upper section with cover plate Ø 800 tileable with waterproof flange,
class K3 *
21 Seal for upper section
22 Upper section with cover plate, square, Ø 800
22a
for class B
22b
for class D
23 Upper section with cover plate Ø 800 tileable, class K 3 *
24 Upper section with cover plate Ø 800, class A/L 15*
25 Upper section with cover plate Ø 800, round, class K3*
* For spare parts for upper sections, see following pages
25
24
23
22a
22b
1
2
3
4
5
6
4
7
5
6
4
8
5
6
17
16a
16b
15
14
13
12
21
18
18
11
10
9
