KESSEL AG

Spare parts catalogue 2021

2. Hybrid lifting stations

57

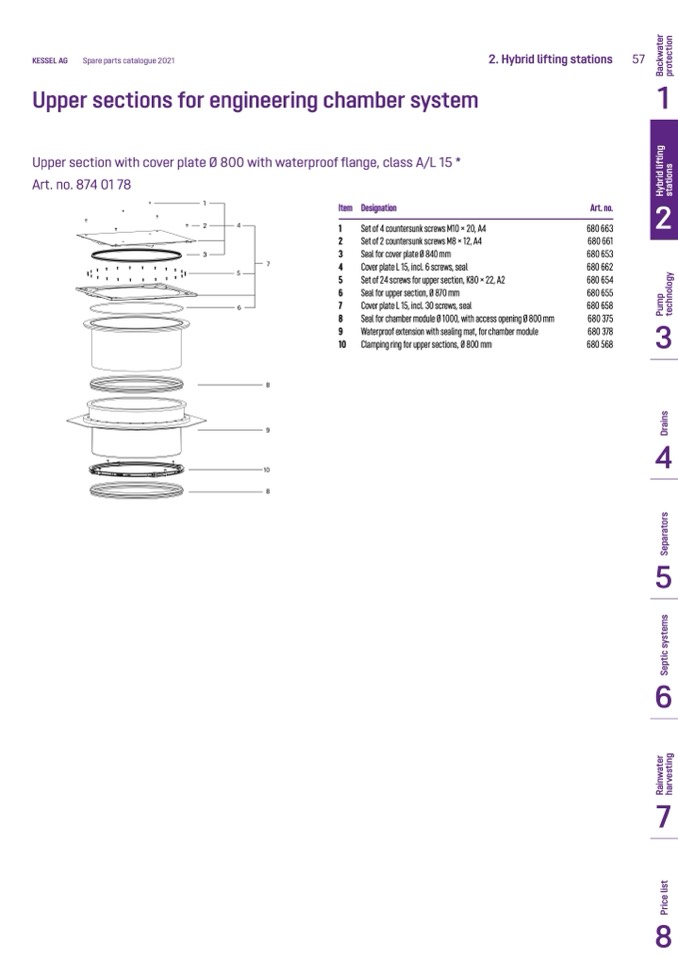

Upper sections for engineering chamber system

Upper section with cover plate Ø 800 with waterproof flange, class A/L 15 *

Art. no. 874 01 78

1

2

3

4

5

6

7

8

1

2

4

Item

1

2

3

4

5

6

7

8

9

10

Designation

Set of 4 countersunk screws M10 × 20, A4

Set of 2 countersunk screws M8 × 12, A4

Seal for cover plate Ø 840 mm

Cover plate L 15, incl. 6 screws, seal

Set of 24 screws for upper section, K80 × 22, A2

Seal for upper section, Ø 870 mm

Cover plate L 15, incl. 30 screws, seal

Seal for chamber module Ø 1000, with access opening Ø 800 mm

Waterproof extension with sealing mat, for chamber module

Clamping ring for upper sections, Ø 800 mm

Art. no.

680 663

680 661

680 653

680 662

680 654

680 655

680 658

680 375

680 378

680 568

3

5

6

7

8

9

10

8
