KESSEL AG

Spare parts catalogue 2021

3. Pump technology

61

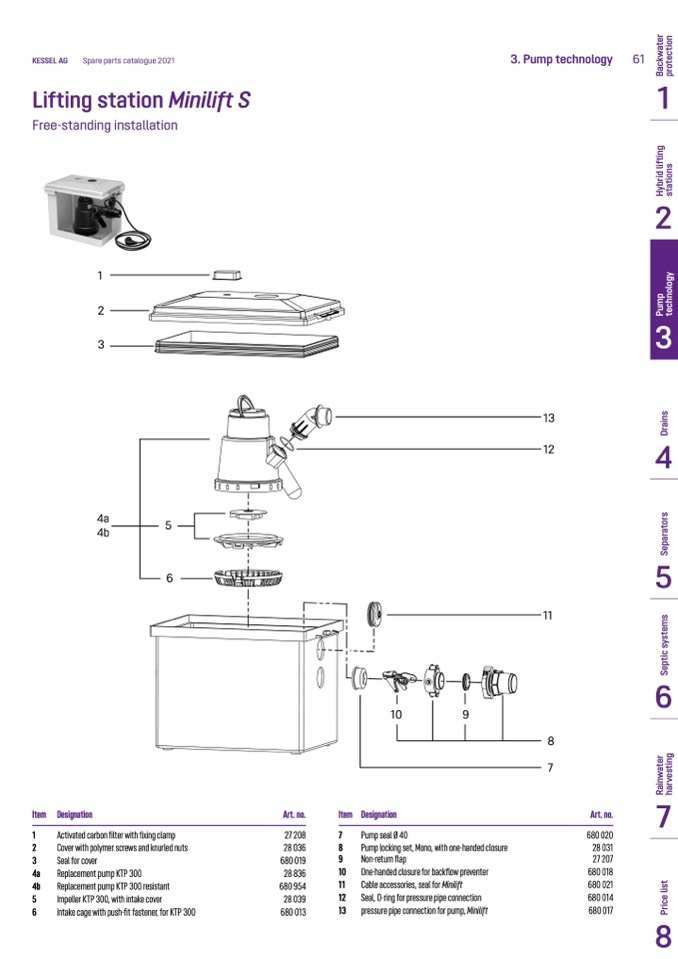

Lifting station Minilift S

Free-standing installation

1

2

1

2

3

3

4a

4b

5

Item Designation

1

Activated carbon filter with fixing clamp

2

Cover with polymer screws and knurled nuts

3

Seal for cover

4a

Replacement pump KTP 300

4b

Replacement pump KTP 300 resistant

5

Impeller KTP 300, with intake cover

6

Intake cage with push-fit fastener, for KTP 300

Art. no.

27 208

28 036

680 019

28 836

680 954

28 039

680 013

Item Designation

7

Pump seal Ø 40

8

Pump locking set, Mono, with one-handed closure

9

Non-return flap

10 One-handed closure for backflow preventer

11

Cable accessories, seal for Minilift

12 Seal, O-ring for pressure pipe connection

13 pressure pipe connection for pump, Minilift

Art. no.

7

680 020

28 031

27 207

680 018

680 021

680 014

680 017
