62

3. Pump technology

Spare parts catalogue 2021

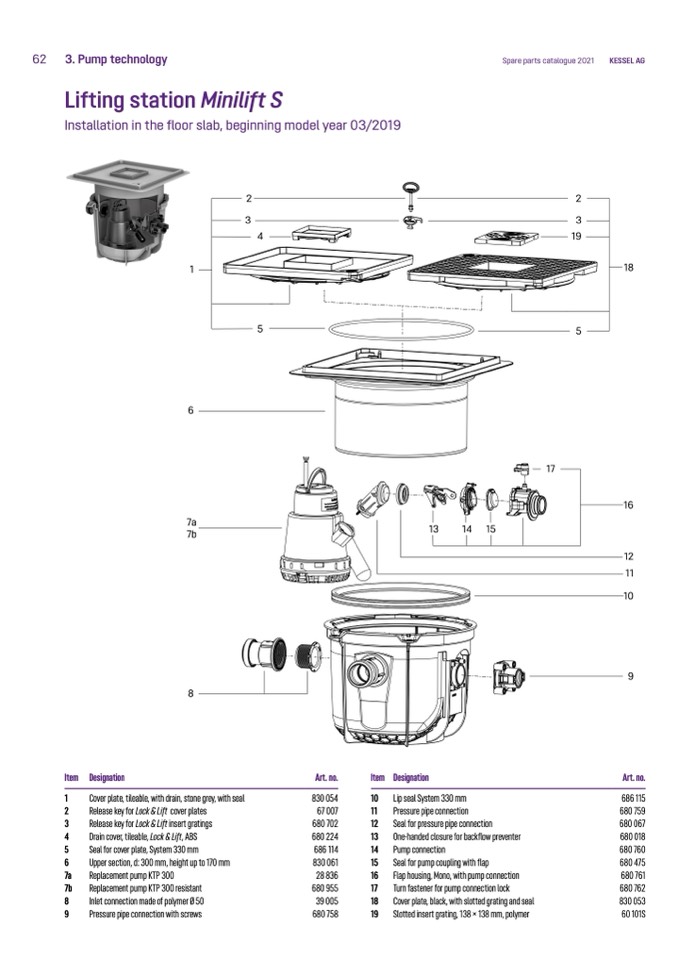

Lifting station Minilift S

Installation in the floor slab, beginning model year 03/2019

KESSEL AG

Item Designation

Art. no.

830 054

67 007

680 702

680 224

686 114

830 061

28 836

680 955

39 005

680 758

Item Designation

10 Lip seal System 330 mm

11

Pressure pipe connection

12 Seal for pressure pipe connection

13 One-handed closure for backflow preventer

14 Pump connection

15 Seal for pump coupling with flap

16 Flap housing, Mono, with pump connection

17

Turn fastener for pump connection lock

18 Cover plate, black, with slotted grating and seal

19 Slotted insert grating, 138 × 138 mm, polymer

1

Cover plate, tileable, with drain, stone grey, with seal

2

Release key for Lock & Lift cover plates

3

Release key for Lock & Lift insert gratings

4

Drain cover, tileable, Lock & Lift, ABS

5

Seal for cover plate, System 330 mm

6

Upper section, d: 300 mm, height up to 170 mm

7a

Replacement pump KTP 300

7b

Replacement pump KTP 300 resistant

8

Inlet connection made of polymer Ø 50

9

Pressure pipe connection with screws

1

6

7a

7b

18

8

2

2

3

3

4

19

5

5

17

13

14 15

16

12

11

10

9

Art. no.

686 115

680 759

680 067

680 018

680 760

680 475

680 761

680 762

830 053

60 101S
