KESSEL AG
Spare parts catalogue 2021
3. Pump technology
65

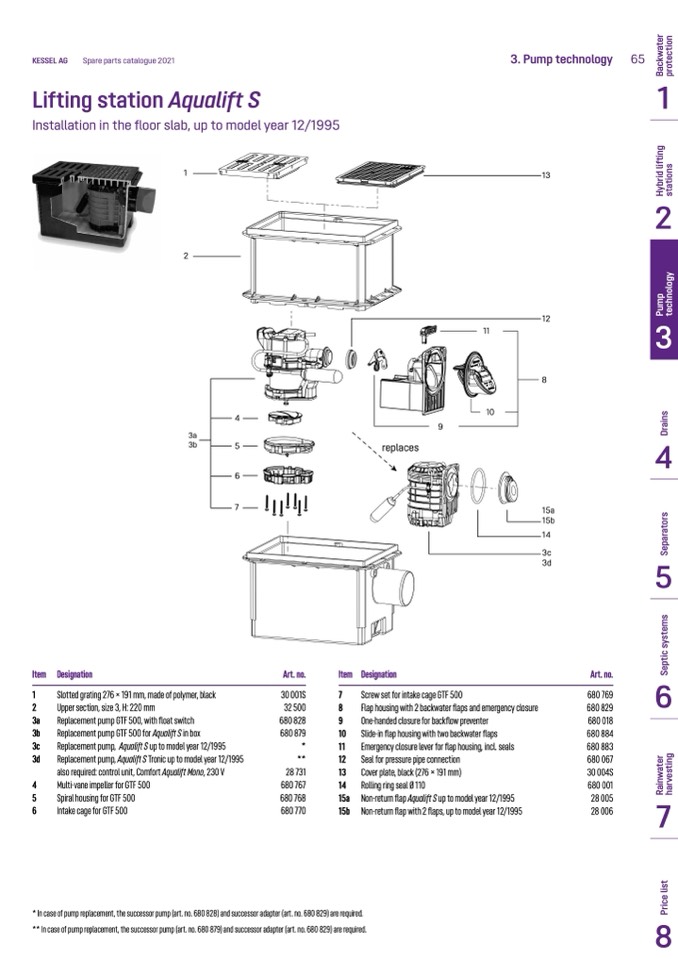

Lifting station Aqualift S
Installation in the floor slab, up to model year 12/1995
1
2
13
12
8
15a
15b
14
3c
3d
1
2
3
4
5
6
7
8
Item Designation
Art. no.
30 001S
32 500
680 828
680 879
*
**
28 731
680 767
680 768
680 770
Item Designation
Art. no.
680 769
680 829
680 018
680 884
680 883
680 067
30 004S
680 001
28 005
28 006
1
Slotted grating 276 × 191 mm, made of polymer, black
2
Upper section, size 3, H: 220 mm
3a
Replacement pump GTF 500, with float switch
3b
Replacement pump GTF 500 for Aqualift S in box
7
Screw set for intake cage GTF 500
8
Flap housing with 2 backwater flaps and emergency closure
9
One-handed closure for backflow preventer
10 Slide-in flap housing with two backwater flaps
11
Emergency closure lever for flap housing, incl. seals
12 Seal for pressure pipe connection
13 Cover plate, black (276 × 191 mm)
14 Rolling ring seal Ø 110
15a Non-return flap Aqualift S up to model year 12/1995
15b Non-return flap with 2 flaps, up to model year 12/1995
3c
Replacement pump, Aqualift S up to model year 12/1995
3d
Replacement pump, Aqualift S Tronic up to model year 12/1995
also required: control unit, Comfort Aqualift Mono, 230 V
4
Multi-vane impeller for GTF 500
5
Spiral housing for GTF 500
6
Intake cage for GTF 500
3a
3b
4
5
6
7
11
10
9
* In case of pump replacement, the successor pump (art. no. 680 828) and successor adapter (art. no. 680 829) are required.
** In case of pump replacement, the successor pump (art. no. 680 879) and successor adapter (art. no. 680 829) are required.
replaces
