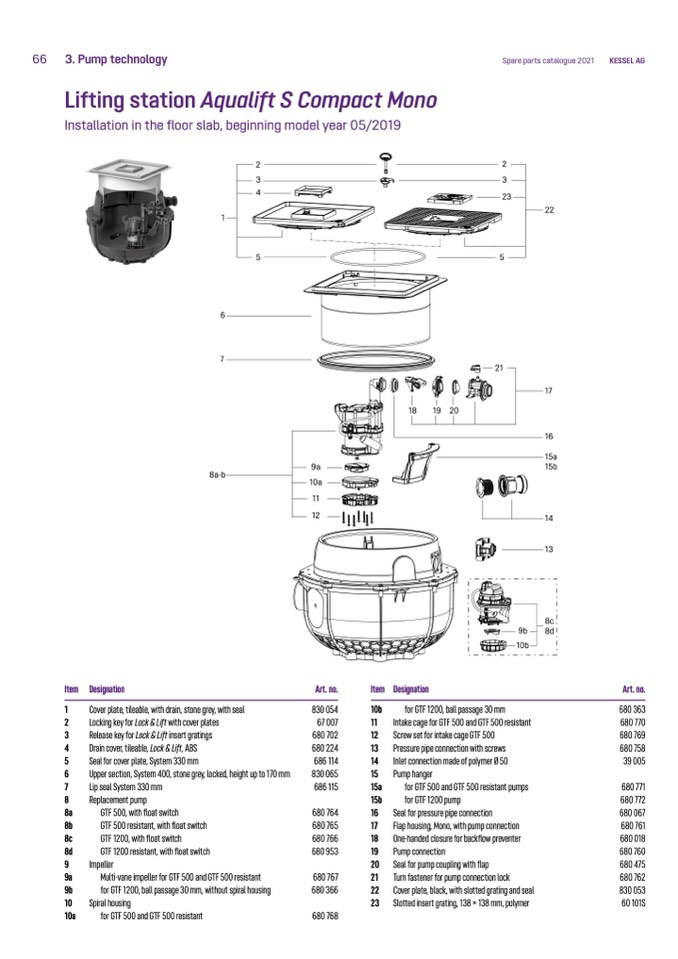

66 3. Pump technology

Spare parts catalogue 2021

Lifting station Aqualift S Compact Mono

Installation in the floor slab, beginning model year 05/2019

KESSEL AG

Item

1

2

3

4

5

6

7

8

8a

8b

8c

8d

9

9a

9b

10

10a

Designation

Art. no.

830 054

67 007

680 702

680 224

686 114

830 065

686 115

680 764

680 765

680 766

680 953

680 767

680 366

680 768

Item Designation

Art. no.

680 363

680 770

680 769

680 758

39 005

680 771

680 772

680 067

680 761

680 018

680 760

680 475

680 762

830 053

60 101S

Cover plate, tileable, with drain, stone grey, with seal

Locking key for Lock & Lift with cover plates

Release key for Lock & Lift insert gratings

Drain cover, tileable, Lock & Lift, ABS

Seal for cover plate, System 330 mm

Upper section, System 400, stone grey, locked, height up to 170 mm

Lip seal System 330 mm

Replacement pump

GTF 500, with float switch

GTF 500 resistant, with float switch

GTF 1200, with float switch

GTF 1200 resistant, with float switch

Impeller

Multi-vane impeller for GTF 500 and GTF 500 resistant

for GTF 1200, ball passage 30 mm, without spiral housing

Spiral housing

for GTF 500 and GTF 500 resistant

10b

for GTF 1200, ball passage 30 mm

11

Intake cage for GTF 500 and GTF 500 resistant

12 Screw set for intake cage GTF 500

13 Pressure pipe connection with screws

14 Inlet connection made of polymer Ø 50

15 Pump hanger

15a

for GTF 500 and GTF 500 resistant pumps

15b

for GTF 1200 pump

16 Seal for pressure pipe connection

17

Flap housing, Mono, with pump connection

18 One-handed closure for backflow preventer

19 Pump connection

20 Seal for pump coupling with flap

21 Turn fastener for pump connection lock

22 Cover plate, black, with slotted grating and seal

23 Slotted insert grating, 138 × 138 mm, polymer
