KESSEL AG
Spare parts catalogue 2021
3. Pump technology
67

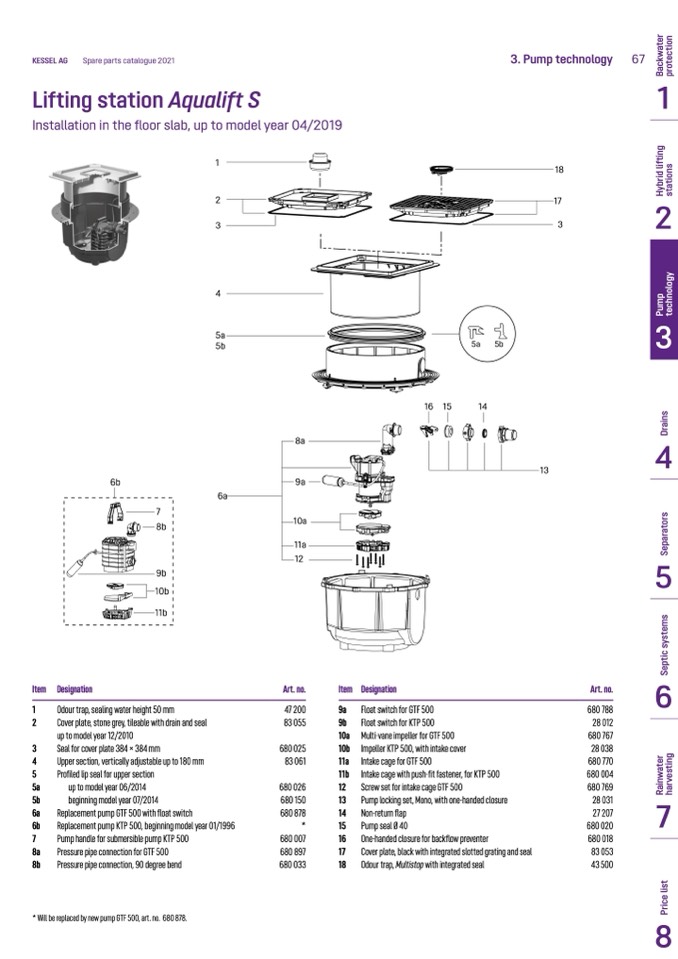

Lifting station Aqualift S
Installation in the floor slab, up to model year 04/2019
5
a
5b
1
6
15
14
4
5a
5
a
5b
5b
3
4
5
Art. no.
6
680 788
28 012
680 767
28 038
680 770
680 004
680 769
28 031
7
27 207
680 020
680 018
83 053
43 500
Item Designation
Item Designation
6b
13
7
8b
9b
10b
11b
8a
9a
10a
11a
12
Art. no.
47 200
83 055
680 025
83 061
680 026
680 150
680 878
*
680 007
680 897
680 033
13
7
8b
9b
10b
11b
1
Odour trap, sealing water height 50 mm
2
Cover plate, stone grey, tileable with drain and seal
9a Float switch for GTF 500
9b Float switch for KTP 500
10a Multi-vane impeller for GTF 500
10b Impeller KTP 500, with intake cover
11a Intake cage for GTF 500
11b Intake cage with push-fit fastener, for KTP 500
12 Screw set for intake cage GTF 500
13 Pump locking set, Mono, with one-handed closure
14 Non-return flap
15 Pump seal Ø 40
16 One-handed closure for backflow preventer
17
Cover plate, black with integrated slotted grating and seal
18 Odour trap, Multistop with integrated seal
up to model year 12/2010
3
Seal for cover plate 384 × 384 mm
4
Upper section, vertically adjustable up to 180 mm
5
Profiled lip seal for upper section
5a
up to model year 06/2014
5b
beginning model year 07/2014
6a
Replacement pump GTF 500 with float switch
6b
Replacement pump KTP 500, beginning model year 01/1996
7
Pump handle for submersible pump KTP 500
8a
Pressure pipe connection for GTF 500
8b
Pressure pipe connection, 90 degree bend
* Will be replaced by new pump GTF 500, art. no. 680 878.
8
18
17
3
1
18
1
2
1
7
2
3
3
6a
6b
1
6
15
14
