KESSEL AG
Spare parts catalogue 2021
3. Pump technology

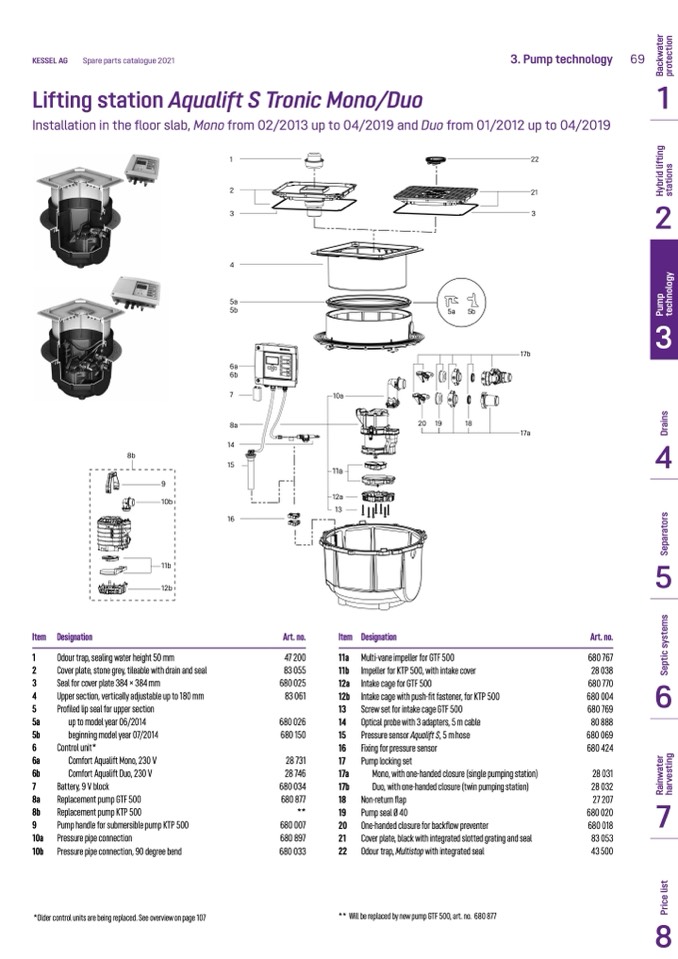

Lifting station Aqualift S Tronic Mono/Duo
69
5a
5b
2
0
19
18
8b
17b
17a
4
5a
5b
6a
6b
7
8a
14
15
16
10a
11a
12a
13
Item Designation
5a
5b
2
0
19
18
17b
17a
8b
9
10b
11b
12b
3
4
5
Item Designation
1
Odour trap, sealing water height 50 mm
2
Cover plate, stone grey, tileable with drain and seal
3
Seal for cover plate 384 × 384 mm
4
Upper section, vertically adjustable up to 180 mm
5
Profiled lip seal for upper section
5a
up to model year 06/2014
5b
beginning model year 07/2014
6
Control unit*
6a
Comfort Aqualift Mono, 230 V
6b
Comfort Aqualift Duo, 230 V
7
Battery, 9 V block
8a
Replacement pump GTF 500
8b
Replacement pump KTP 500
9
Pump handle for submersible pump KTP 500
10a Pressure pipe connection
10b Pressure pipe connection, 90 degree bend
Art. no.
47 200
83 055
680 025
83 061
680 026
680 150
28 731
28 746
680 034
680 877
**
680 007
680 897
680 033
11a Multi-vane impeller for GTF 500
11b Impeller for KTP 500, with intake cover
12a Intake cage for GTF 500
12b Intake cage with push-fit fastener, for KTP 500
13 Screw set for intake cage GTF 500
14 Optical probe with 3 adapters, 5 m cable
15 Pressure sensor Aqualift S, 5 m hose
16 Fixing for pressure sensor
17
Pump locking set
17a
Mono, with one-handed closure (single pumping station)
17b
Duo, with one-handed closure (twin pumping station)
18 Non-return flap
19 Pump seal Ø 40
20 One-handed closure for backflow preventer
21 Cover plate, black with integrated slotted grating and seal
22 Odour trap, Multistop with integrated seal
Art. no.
680 767
28 038
*Older control units are being replaced. See overview on page 107
** Will be replaced by new pump GTF 500, art. no. 680 877
8
9
10b
11b
12b
1
3
2
Installation in the floor slab, Mono from 02/2013 up to 04/2019 and Duo from 01/2012 up to 04/2019
22
21
1
22
2
3
3
21
680 770
6
680 004
680 769
80 888
680 069
680 424
28 031
28 032
27 207
7
680 020
680 018
83 053
43 500
