3. Pump technology

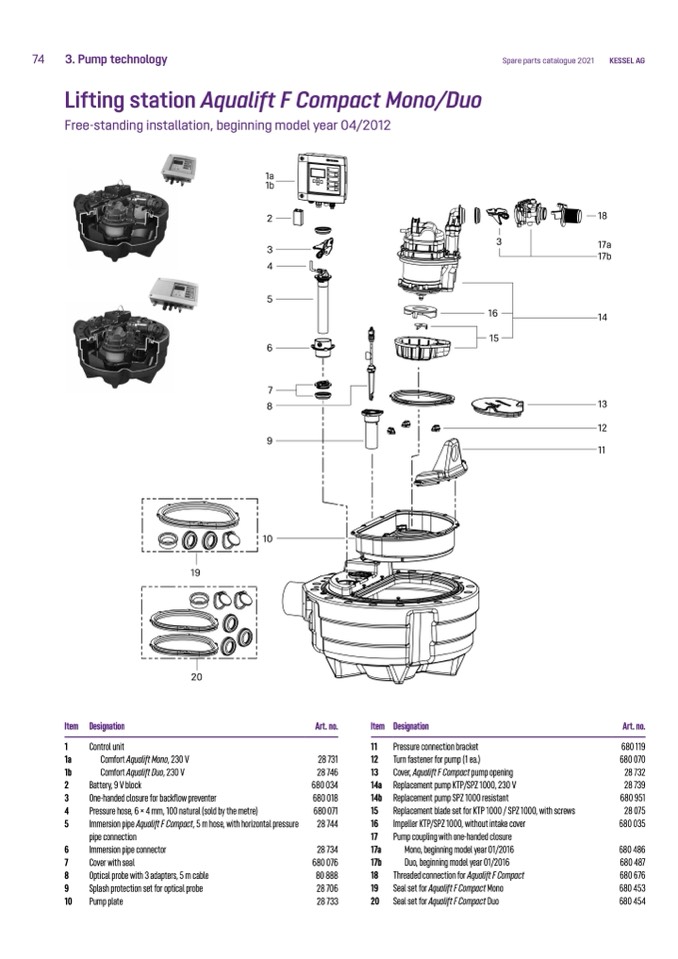

Lifting station Aqualift F Compact Mono/Duo

Free-standing installation, beginning model year 04/2012

Spare parts catalogue 2021

KESSEL AG

Item Designation

Art. no.

28 731

28 746

680 034

680 018

680 071

28 744

28 734

680 076

80 888

28 706

28 733

Item Designation

Art. no.

680 119

680 070

28 732

28 739

680 951

28 075

680 035

680 486

680 487

680 676

680 453

680 454

1

Control unit

1a

Comfort Aqualift Mono, 230 V

1b

Comfort Aqualift Duo, 230 V

2

Battery, 9 V block

3

One-handed closure for backflow preventer

4

Pressure hose, 6 × 4 mm, 100 natural (sold by the metre)

5

Immersion pipe Aqualift F Compact, 5 m hose, with horizontal pressure

pipe connection

6

Immersion pipe connector

7

Cover with seal

8

Optical probe with 3 adapters, 5 m cable

9

Splash protection set for optical probe

10

Pump plate

11

Pressure connection bracket

12 Turn fastener for pump (1 ea.)

13 Cover, Aqualift F Compact pump opening

14a Replacement pump KTP/SPZ 1000, 230 V

14b Replacement pump SPZ 1000 resistant

15 Replacement blade set for KTP 1000 / SPZ 1000, with screws

16 Impeller KTP/SPZ 1000, without intake cover

17

Pump coupling with one-handed closure

17a

Mono, beginning model year 01/2016

17b

Duo, beginning model year 01/2016

18 Threaded connection for Aqualift F Compact

19 Seal set for Aqualift F Compact Mono

20 Seal set for Aqualift F Compact Duo

19

20

1a

1b

2

3

4

5

6

7

8

9

10

3

16

15

18

17a

17b

14

13

12

11
