76
3. Pump technology
Spare parts catalogue 2021
KESSEL AG

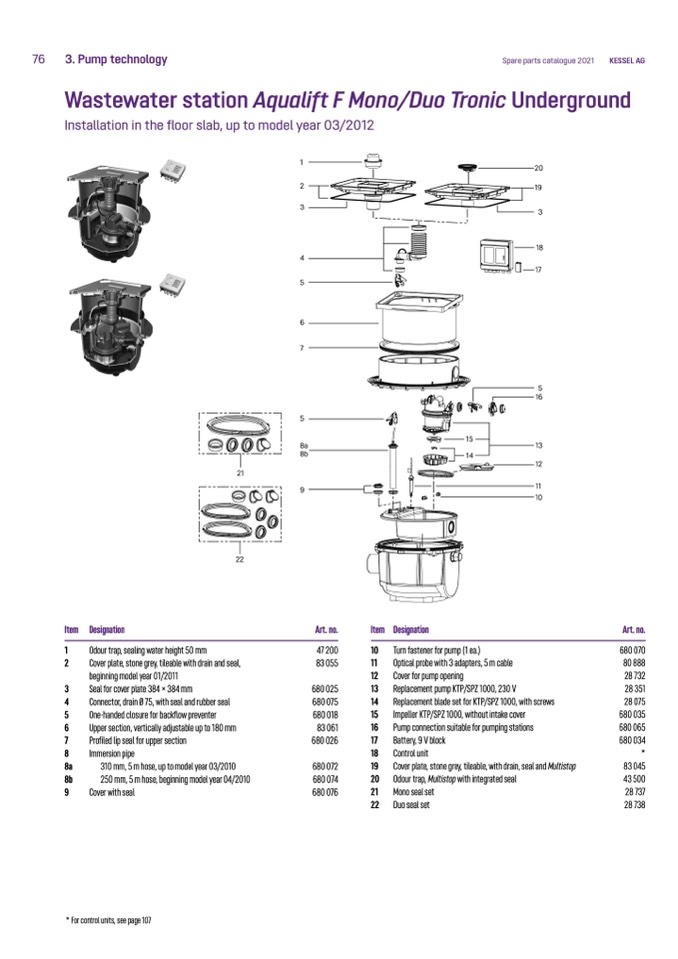

Wastewater station Aqualift F Mono/Duo Tronic Underground
Installation in the floor slab, up to model year 03/2012
Item Designation
Art. no.
47 200
83 055
680 025
680 075
680 018
83 061
680 026
680 072
680 074
680 076
Item Designation
Art. no.
680 070
80 888
28 732
28 351
28 075
680 035
680 065
680 034
*
83 045
43 500
28 737
28 738
1
Odour trap, sealing water height 50 mm
2
Cover plate, stone grey, tileable with drain and seal,
beginning model year 01/2011
3
Seal for cover plate 384 × 384 mm
4
Connector, drain Ø 75, with seal and rubber seal
5
One-handed closure for backflow preventer
6
Upper section, vertically adjustable up to 180 mm
7
Profiled lip seal for upper section
8
Immersion pipe
8a
310 mm, 5 m hose, up to model year 03/2010
8b
250 mm, 5 m hose, beginning model year 04/2010
9
Cover with seal
10 Turn fastener for pump (1 ea.)
11
Optical probe with 3 adapters, 5 m cable
12 Cover for pump opening
13 Replacement pump KTP/SPZ 1000, 230 V
14 Replacement blade set for KTP/SPZ 1000, with screws
15 Impeller KTP/SPZ 1000, without intake cover
16 Pump connection suitable for pumping stations
17
Battery, 9 V block
18 Control unit
19 Cover plate, stone grey, tileable, with drain, seal and Multistop
20 Odour trap, Multistop with integrated seal
21 Mono seal set
22 Duo seal set
* For control units, see page 107
21
22
1
2
3
4
5
6
7
5
8a
8b
9
15
14
20
19
3
18
17
5
16
13
12
11
10
