KESSEL AG
Spare parts catalogue 2021
3. Pump technology
77

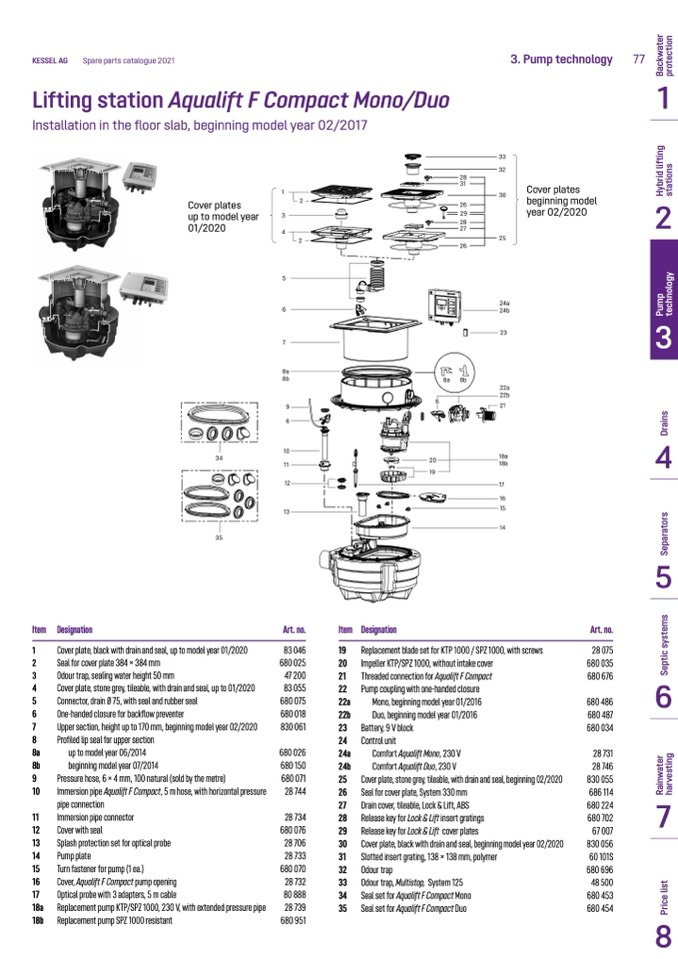

Lifting station Aqualift F Compact Mono/Duo
Installation in the floor slab, beginning model year 02/2017
1
2
3
4
5
6
7
8
Item Designation
12
13
Art. no.
Item Designation
Art. no.
28 075
680 035
680 676
680 486
680 487
680 034
28 731
28 746
830 055
686 114
680 224
680 702
67 007
830 056
60 101S
680 696
48 500
680 453
680 454
1
Cover plate, black with drain and seal, up to model year 01/2020
2
Seal for cover plate 384 × 384 mm
3
Odour trap, sealing water height 50 mm
4
Cover plate, stone grey, tileable, with drain and seal, up to 01/2020
5
Connector, drain Ø 75, with seal and rubber seal
6
One-handed closure for backflow preventer
7
Upper section, height up to 170 mm, beginning model year 02/2020
8
Profiled lip seal for upper section
8a
up to model year 06/2014
8b
beginning model year 07/2014
9
Pressure hose, 6 × 4 mm, 100 natural (sold by the metre)
10
Immersion pipe Aqualift F Compact, 5 m hose, with horizontal pressure
pipe connection
11
Immersion pipe connector
12
Cover with seal
13
Splash protection set for optical probe
14
Pump plate
15
Turn fastener for pump (1 ea.)
16
Cover, Aqualift F Compact pump opening
17
Optical probe with 3 adapters, 5 m cable
18a Replacement pump KTP/SPZ 1000, 230 V, with extended pressure pipe
18b Replacement pump SPZ 1000 resistant
83 046
680 025
47 200
83 055
680 075
680 018
830 061
680 026
680 150
680 071
28 744
28 734
680 076
28 706
28 733
680 070
28 732
80 888
28 739
680 951
19 Replacement blade set for KTP 1000 / SPZ 1000, with screws
20 Impeller KTP/SPZ 1000, without intake cover
21 Threaded connection for Aqualift F Compact
22 Pump coupling with one-handed closure
22a
Mono, beginning model year 01/2016
22b
Duo, beginning model year 01/2016
23 Battery, 9 V block
24 Control unit
24a
Comfort Aqualift Mono, 230 V
24b
Comfort Aqualift Duo, 230 V
25 Cover plate, stone grey, tileable, with drain and seal, beginning 02/2020
26 Seal for cover plate, System 330 mm
27 Drain cover, tileable, Lock & Lift, ABS
28 Release key for Lock & Lift insert gratings
29 Release key for Lock & Lift cover plates
30 Cover plate, black with drain and seal, beginning model year 02/2020
31 Slotted insert grating, 138 × 138 mm, polymer
32 Odour trap
33 Odour trap, Multistop, System 125
34 Seal set for Aqualift F Compact Mono
35 Seal set for Aqualift F Compact Duo
Cover plates
up to model year
01/2020
34
35
10
11
20
1
2
3
4
2
5
6
7
8a
8b
9
6
31
26
29
28
27
30
Cover plates
beginning model
year 02/2020
19
6
8a
8b
24a
24b
23
22a
22b
21
18a
18b
17
16
15
14
33
32
28
25
26
