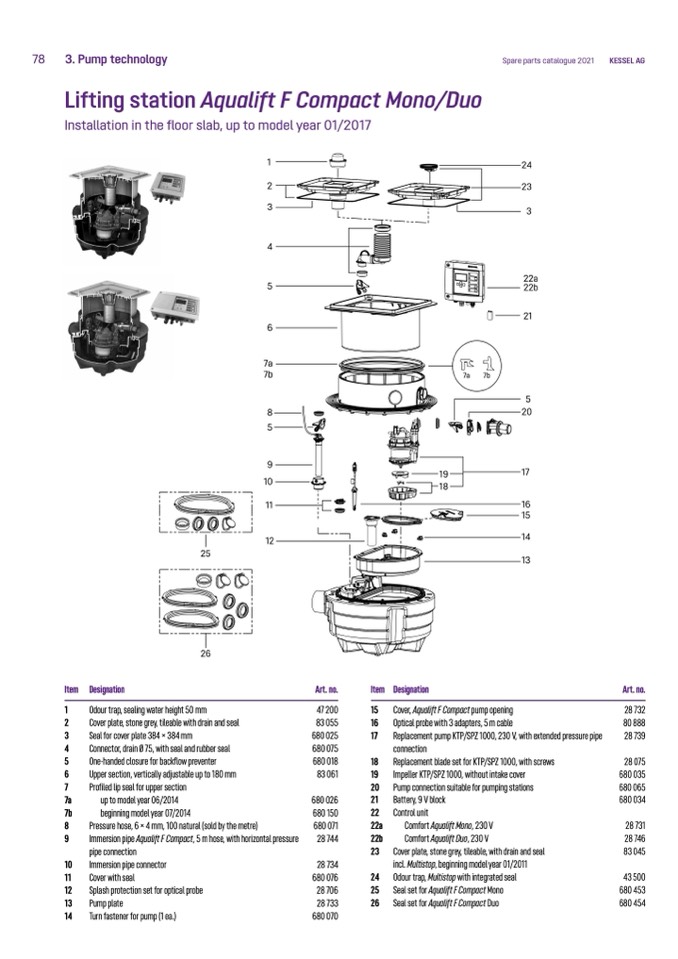

Lifting station Aqualift F Compact Mono/Duo

Spare parts catalogue 2021

24

23

3

22a

22b

21

5

20

17

16

15

14

13

KESSEL AG

Installation in the floor slab, up to model year 01/2017

Item Designation

Art. no.

47 200

83 055

680 025

680 075

680 018

83 061

680 026

680 150

680 071

28 744

28 734

680 076

28 706

28 733

680 070

Item Designation

Art. no.

28 732

80 888

28 739

28 075

680 035

680 065

680 034

28 731

28 746

83 045

43 500

680 453

680 454

1

Odour trap, sealing water height 50 mm

2

Cover plate, stone grey, tileable with drain and seal

3

Seal for cover plate 384 × 384 mm

4

Connector, drain Ø 75, with seal and rubber seal

5

One-handed closure for backflow preventer

6

Upper section, vertically adjustable up to 180 mm

7

Profiled lip seal for upper section

7a

up to model year 06/2014

7b

beginning model year 07/2014

8

Pressure hose, 6 × 4 mm, 100 natural (sold by the metre)

9

Immersion pipe Aqualift F Compact, 5 m hose, with horizontal pressure

pipe connection

10

Immersion pipe connector

11

Cover with seal

12

Splash protection set for optical probe

13

Pump plate

14

Turn fastener for pump (1 ea.)

15 Cover, Aqualift F Compact pump opening

16 Optical probe with 3 adapters, 5 m cable

17

Replacement pump KTP/SPZ 1000, 230 V, with extended pressure pipe

connection

18 Replacement blade set for KTP/SPZ 1000, with screws

19 Impeller KTP/SPZ 1000, without intake cover

20 Pump connection suitable for pumping stations

21 Battery, 9 V block

22 Control unit

22a

Comfort Aqualift Mono, 230 V

22b

Comfort Aqualift Duo, 230 V

23 Cover plate, stone grey, tileable, with drain and seal

incl. Multistop, beginning model year 01/2011

24 Odour trap, Multistop with integrated seal

25 Seal set for Aqualift F Compact Mono

26 Seal set for Aqualift F Compact Duo

25

26

1

2

3

4

5

6

7a

7b

8

5

9

10

11

12

7a

7b

19

18
