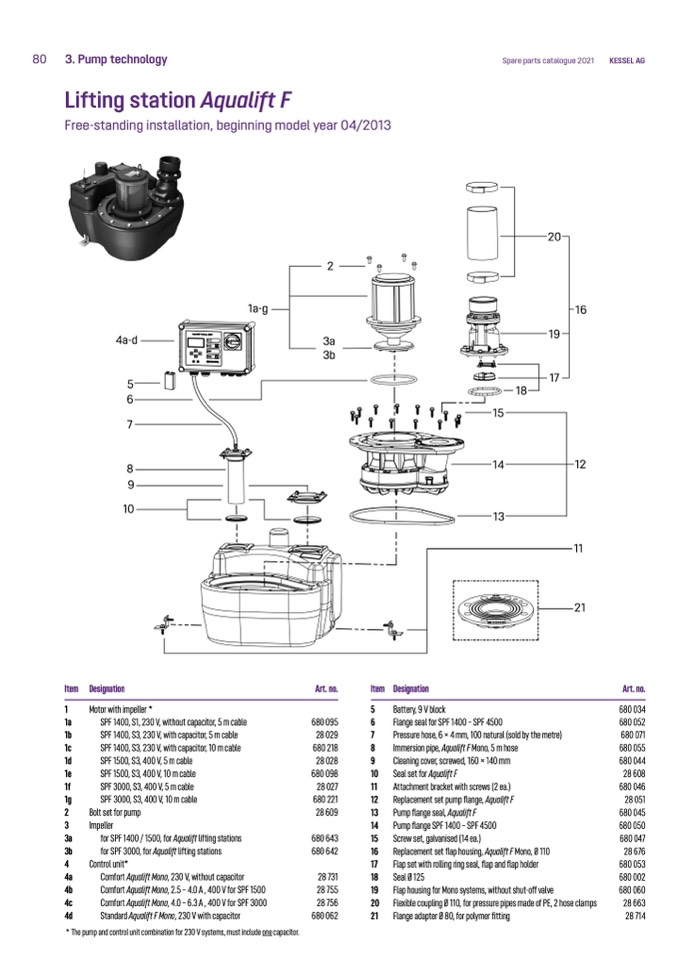

Lifting station Aqualift F
Free-standing installation, beginning model year 04/2013
Spare parts catalogue 2021
KESSEL AG
Item
1
1a
1b
1c
1d
1e
1f
1g
2
3
3a
3b
4
4a
4b
4c
4d
Designation
Motor with impeller *
SPF 1400, S1, 230 V, without capacitor, 5 m cable
SPF 1400, S3, 230 V, with capacitor, 5 m cable
SPF 1400, S3, 230 V, with capacitor, 10 m cable
SPF 1500, S3, 400 V, 5 m cable
SPF 1500, S3, 400 V, 10 m cable
SPF 3000, S3, 400 V, 5 m cable
SPF 3000, S3, 400 V, 10 m cable
Bolt set for pump
Impeller
for SPF 1400 / 1500, for Aqualift lifting stations
for SPF 3000, for Aqualift lifting stations
Control unit*
Art. no.
680 095
28 029
680 218
28 028
680 098
28 027
680 221
28 609
680 643
680 642
28 731
28 755
28 756
680 062
Item Designation
Art. no.
680 034
680 052
680 071
680 055
680 044
28 608
680 046
28 051
680 045
680 050
680 047
28 676
680 053
680 002
680 060
28 663
28 714
4a-d
5
6
7
8
9
10
Comfort Aqualift Mono, 230 V, without capacitor
Comfort Aqualift Mono, 2.5 – 4.0 A , 400 V for SPF 1500
Comfort Aqualift Mono, 4.0 – 6.3 A , 400 V for SPF 3000
Standard Aqualift F Mono, 230 V with capacitor
5
Battery, 9 V block
6
Flange seal for SPF 1400 – SPF 4500
7
Pressure hose, 6 × 4 mm, 100 natural (sold by the metre)
8
Immersion pipe, Aqualift F Mono, 5 m hose
9
Cleaning cover, screwed, 160 × 140 mm
10 Seal set for Aqualift F
11
Attachment bracket with screws (2 ea.)
12 Replacement set pump flange, Aqualift F
13 Pump flange seal, Aqualift F
14 Pump flange SPF 1400 – SPF 4500
15 Screw set, galvanised (14 ea.)
16 Replacement set flap housing, Aqualift F Mono, Ø 110
17
Flap set with rolling ring seal, flap and flap holder
18 Seal Ø 125
19 Flap housing for Mono systems, without shut-off valve
20 Flexible coupling Ø 110, for pressure pipes made of PE, 2 hose clamps
21 Flange adapter Ø 80, for polymer fitting
* The pump and control unit combination for 230 V systems, must include one capacitor.
1a-g
2
3a
3b
20
19
17
18
15
14
12
13
11
21
16
