KESSEL AG
Spare parts catalogue 2021
3. Pump technology
81

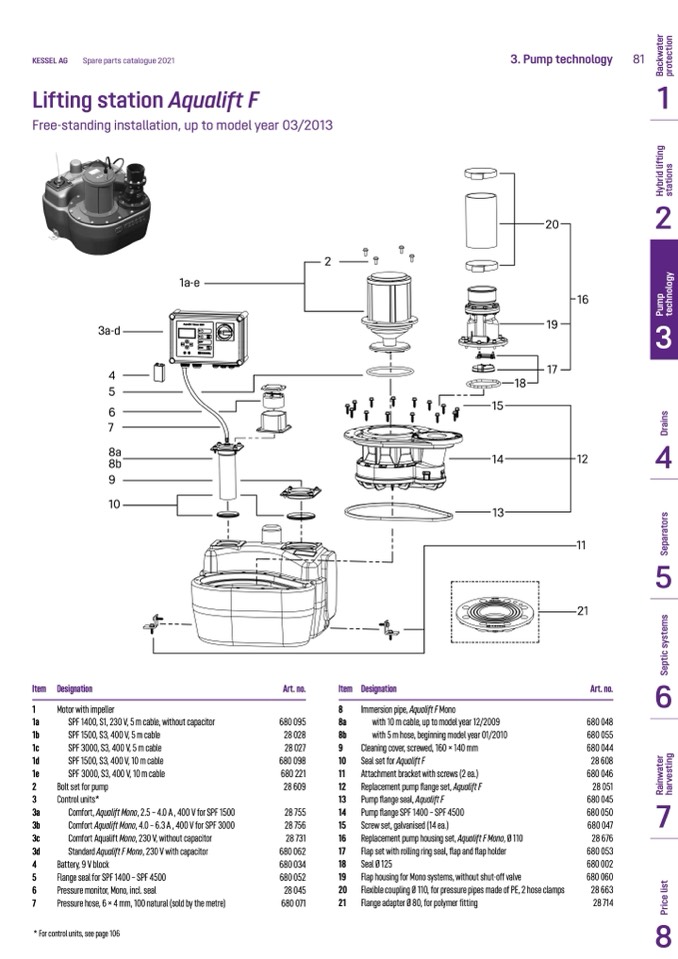

Lifting station Aqualift F
Free-standing installation, up to model year 03/2013
1
2
3
4
5
6
7
8
Item Designation
Art. no.
680 095
28 028
28 027
680 098
680 221
28 609
28 755
28 756
28 731
680 062
680 034
680 052
28 045
680 071
Item Designation
Art. no.
3a-d
4
5
6
7
8a
8b
9
10
1
Motor with impeller
1a
SPF 1400, S1, 230 V, 5 m cable, without capacitor
1b
SPF 1500, S3, 400 V, 5 m cable
1c
SPF 3000, S3, 400 V, 5 m cable
1d
SPF 1500, S3, 400 V, 10 m cable
1e
SPF 3000, S3, 400 V, 10 m cable
2
Bolt set for pump
3
Control units*
3a
Comfort, Aqualift Mono, 2.5 – 4.0 A , 400 V for SPF 1500
3b
Comfort Aqualift Mono, 4.0 – 6.3 A , 400 V for SPF 3000
3c
Comfort Aqualift Mono, 230 V, without capacitor
3d
Standard Aqualift F Mono, 230 V with capacitor
4
Battery, 9 V block
5
Flange seal for SPF 1400 – SPF 4500
6
Pressure monitor, Mono, incl. seal
7
Pressure hose, 6 × 4 mm, 100 natural (sold by the metre)
* For control units, see page 106
8
Immersion pipe, Aqualift F Mono
8a
with 10 m cable, up to model year 12/2009
8b
with 5 m hose, beginning model year 01/2010
9
Cleaning cover, screwed, 160 × 140 mm
10 Seal set for Aqualift F
11
Attachment bracket with screws (2 ea.)
12 Replacement pump flange set, Aqualift F
13 Pump flange seal, Aqualift F
14 Pump flange SPF 1400 – SPF 4500
15 Screw set, galvanised (14 ea.)
16 Replacement pump housing set, Aqualift F Mono, Ø 110
17
Flap set with rolling ring seal, flap and flap holder
18 Seal Ø 125
19 Flap housing for Mono systems, without shut-off valve
20 Flexible coupling Ø 110, for pressure pipes made of PE, 2 hose clamps
21 Flange adapter Ø 80, for polymer fitting
680 048
680 055
680 044
28 608
680 046
28 051
680 045
680 050
680 047
28 676
680 053
680 002
680 060
28 663
28 714
1a-e
2
20
19
17
18
15
14
12
13
11
16
21
