IMIT CONTROL SYSTEM
IMIT CONTROL SYSTEM

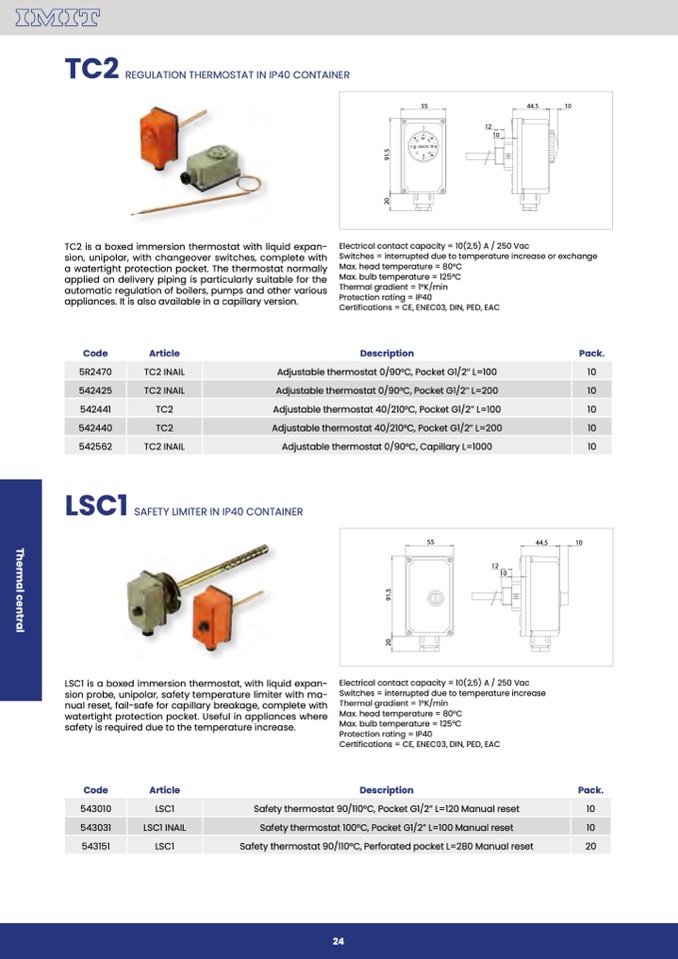

REGULATION THERMOSTAT IN IP40 CONTAINER
TC2
TC2 is a boxed immersion thermostat with liquid expan-
sion, unipolar, with changeover switches, complete with
a watertight protection pocket. The thermostat normally
applied on delivery piping is particularly suitable for the
automatic regulation of boilers, pumps and other various
appliances. It is also available in a capillary version.
Code
Article
LSC1
SAFETY LIMITER IN IP40 CONTAINER
LSC1 is a boxed immersion thermostat, with liquid expan-
sion probe, unipolar, safety temperature limiter with ma-
nual reset, fail-safe for capillary breakage, complete with
watertight protection pocket. Useful in appliances where
safety is required due to the temperature increase.
Code
Article
Electrical contact capacity = 10(2,5) A / 250 Vac
Switches = interrupted due to temperature increase or exchange
Max. head temperature = 80°C
Max. bulb temperature = 125°C
Thermal gradient = 1°K/min
Protection rating = IP40
Certifications = CE, ENEC03, DIN, PED, EAC
55
60
44.5
10
12
10
Description
Pack.
5R2470
TC2 INAIL
Adjustable thermostat 0/90°C, Pocket G1/2’’ L=100
10
542425
TC2 INAIL
Adjustable thermostat 0/90°C, Pocket G1/2’’ L=200
10
542441
TC2
Adjustable thermostat 40/210°C, Pocket G1/2’’ L=100
10
542440
TC2
Adjustable thermostat 40/210°C, Pocket G1/2’’ L=200
10
542562
TC2 INAIL
Adjustable thermostat 0/90°C, Capillary L=1000
10
55
44.5
10
Electrical contact capacity = 10(2,5) A / 250 Vac
Switches = interrupted due to temperature increase
Thermal gradient = 1°K/min
Max. head temperature = 80°C
Max. bulb temperature = 125°C
Protection rating = IP40
Certifications = CE, ENEC03, DIN, PED, EAC
Description
Pack.
12
10
543010
LSC1
Safety thermostat 90/110°C, Pocket G1/2” L=120 Manual reset
10
543031
LSC1 INAIL
Safety thermostat 100°C, Pocket G1/2” L=100 Manual reset
10
543151
LSC1
Safety thermostat 90/110°C, Perforated pocket L=280 Manual reset
20
24
