IMIT CONTROL SYSTEM

IMIT CONTROL SYSTEM

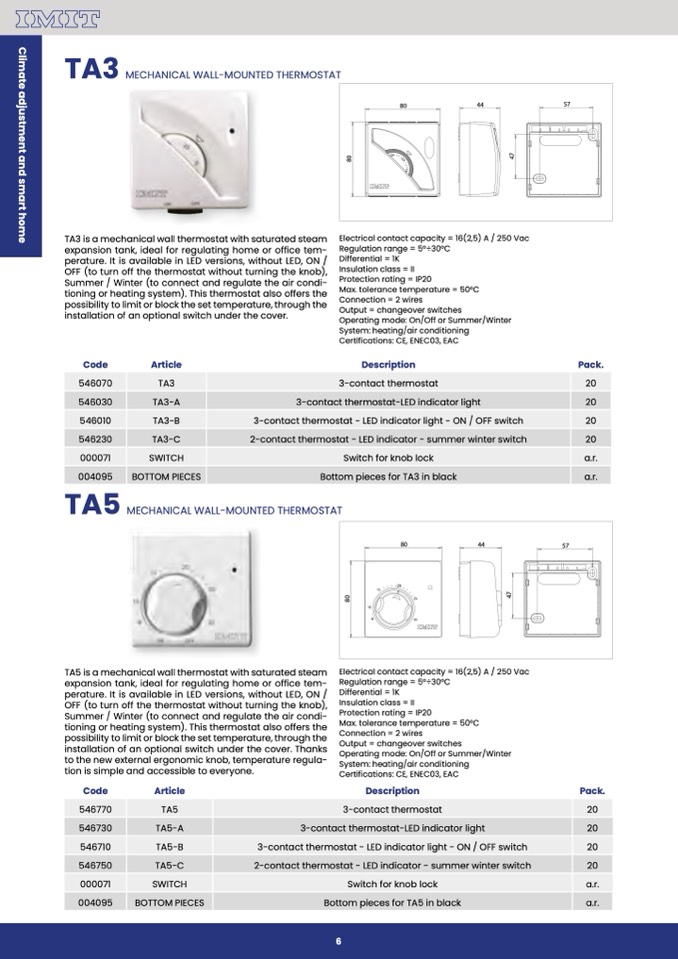

MECHANICAL WALL-MOUNTED THERMOSTAT

TA3

TA3 is a mechanical wall thermostat with saturated steam

expansion tank, ideal for regulating home or office tem-

perature. It is available in LED versions, without LED, ON /

OFF (to turn off the thermostat without turning the knob),

Summer / Winter (to connect and regulate the air condi-

tioning or heating system). This thermostat also offers the

possibility to limit or block the set temperature, through the

installation of an optional switch under the cover.

25

1

5

C

l

i

m

a

t

e

a

d

j

u

s

t

m

e

n

t

a

n

d

s

m

a

r

t

h

o

m

e

Code

546070

546030

546010

546230

000071

004095

TA5

Article

TA3

TA3-A

TA3-B

TA3-C

SWITCH

BOTTOM PIECES

80

44

57

Electrical contact capacity = 16(2,5) A / 250 Vac

Regulation range = 5°÷30°C

Differential = 1K

Insulation class = II

Protection rating = IP20

Max. tolerance temperature = 50°C

Connection = 2 wires

Output = changeover switches

Operating mode: On/Off or Summer/Winter

System: heating/air conditioning

Certifications: CE, ENEC03, EAC

Description

Pack.

MECHANICAL WALL-MOUNTED THERMOSTAT

8

0

8

0

4

7

4

7

TA5 is a mechanical wall thermostat with saturated steam

expansion tank, ideal for regulating home or office tem-

perature. It is available in LED versions, without LED, ON /

OFF (to turn off the thermostat without turning the knob),

Summer / Winter (to connect and regulate the air condi-

tioning or heating system). This thermostat also offers the

possibility to limit or block the set temperature, through the

installation of an optional switch under the cover. Thanks

to the new external ergonomic knob, temperature regula-

tion is simple and accessible to everyone.

Electrical contact capacity = 16(2,5) A / 250 Vac

Regulation range = 5°÷30°C

Differential = 1K

Insulation class = II

Protection rating = IP20

Max. tolerance temperature = 50°C

Connection = 2 wires

Output = changeover switches

Operating mode: On/Off or Summer/Winter

System: heating/air conditioning

Certifications: CE, ENEC03, EAC

Description

Code

546770

546730

546710

546750

000071

004095

Article

TA5

TA5-A

TA5-B

TA5-C

SWITCH

BOTTOM PIECES

Pack.

3-contact thermostat

20

3-contact thermostat-LED indicator light

20

3-contact thermostat - LED indicator light - ON / OFF switch

20

2-contact thermostat - LED indicator - summer winter switch

20

Switch for knob lock

a.r.

Bottom pieces for TA3 in black

a.r.

20

15

10

25

30

80

44

57

3-contact thermostat

20

3-contact thermostat-LED indicator light

20

3-contact thermostat - LED indicator light - ON / OFF switch

20

2-contact thermostat - LED indicator - summer winter switch

20

Switch for knob lock

a.r.

Bottom pieces for TA5 in black

a.r.

6
