KITCHEN

& BATH

PLUMBING

TAP & SUPPLY

HOSES

SOFTPEX

®

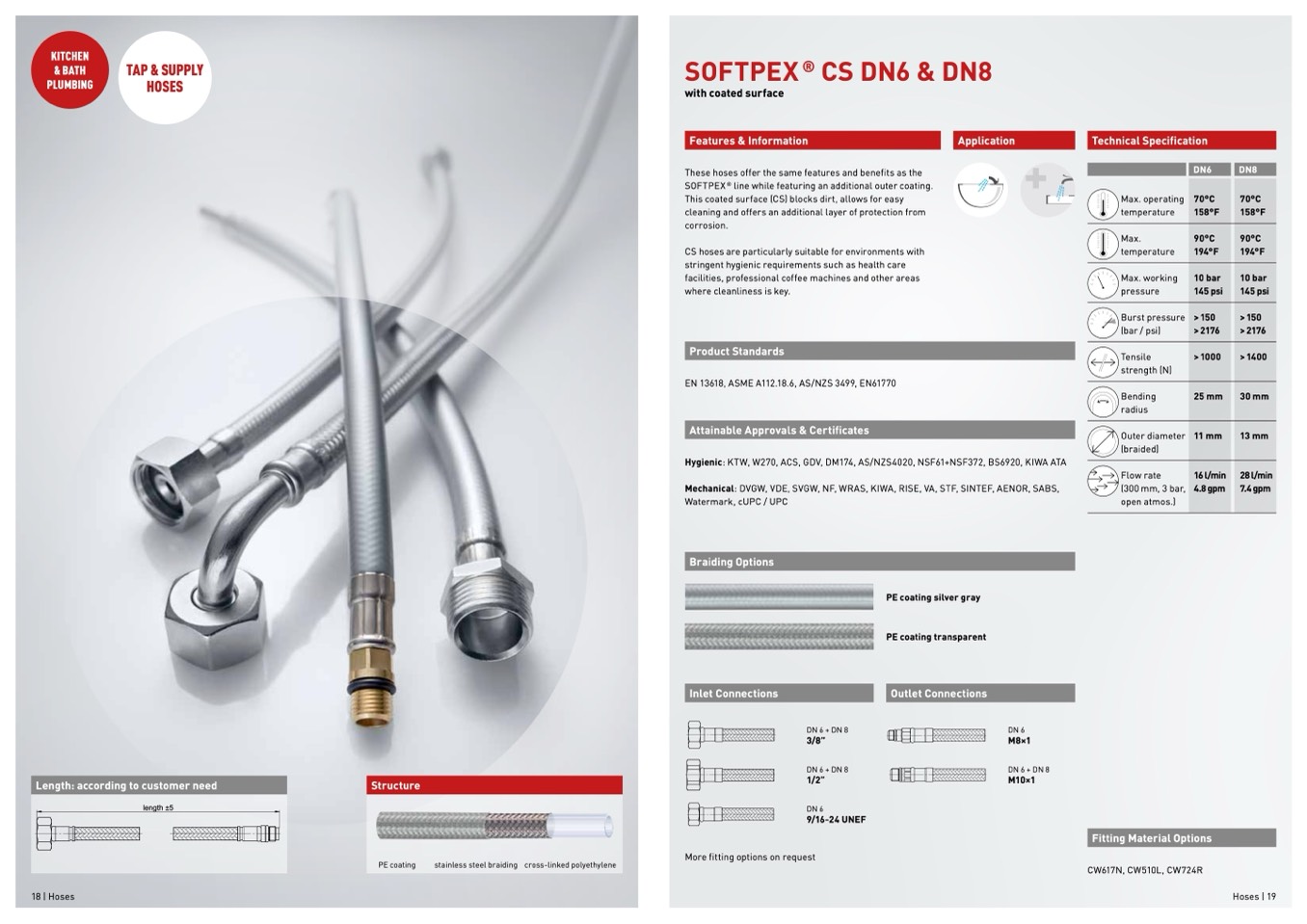

CS DN6 & DN8

Length: according to customer need

Length: according to customer need

length ±5

3/8”

3/8"

DN6 + DN8

1/2"

D N 6 +

D N

D

6

N

+ D

8

N 8

1/2”

M10×1

18 | Hoses

Hoses | 19

length ±5

Structure

1/2"

DN6 + DN8

1/2"

M10x1

PE coating

stainless steel braiding

cross-linked polyethylene

More fitting options on request

with coated surface

Features & Information

These hoses offer the same features and benefits as the

SOFTPEX

®

line while featuring an additional outer coating.

This coated surface (CS) blocks dirt, allows for easy

cleaning and offers an additional layer of protection from

corrosion.

CS hoses are particularly suitable for environments with

stringent hygienic requirements such as health care

facilities, professional coffee machines and other areas

where cleanliness is key.

Product Standards

EN 13618, ASME A112.18.6, AS/NZS 3499, EN61770

Attainable Approvals & Certificates

Application

Technical Specification

DN6

Hygienic: KTW, W270, ACS, GDV, DM174, AS/NZS4020, NSF61+NSF372, BS6920, KIWA ATA

Mechanical: DVGW, VDE, SVGW, NF, WRAS, KIWA, RISE, VA, STF, SINTEF, AENOR, SABS,

Max. operating

temperature

Max.

temperature

Max. working

pressure

Burst pressure

(bar / psi)

Tensile

strength (N)

Bending

radius

Outer diameter

(braided)

Flow rate

(300 mm, 3 bar,

open atmos.)

70°C

158°F

90°C

194°F

10 bar

145 psi

>150

> 2176

>1000

25 mm

11 mm

16 l/min

4.8 gpm

DN8

70°C

158°F

90°C

194°F

10 bar

145 psi

>150

> 2176

>1400

30 mm

13 mm

28 l/min

7.4 gpm

Watermark, cUPC / UPC

Braiding Options

SOFTPEX CS DN6 & DN8

Inlet Connections

SOFTPEX CS DN6 & DN8

Inlet Connections

PE coating silver gray

PE coating transparent

SOFTPEX CS DN6 & DN8

Outlet Connections

DN 6

M8×1

M8x1

D N 6 + D

D N

N

6 +

8

D N 8

SOFTPEX CS DN6 & DN8

SOFTPEX CS DN6 & DN8

Outlet Connections

Inlet Connections

DN6 + DN8

3/8"

DN6 + DN8

3/8"

Outlet Connections

Inlet Connections

DN 6 + DN 8

DN6

M8x1

DN6

DN6 + DN8

DN 6

DN6

9/16-24 UNEF

DN6 + DN8

M10x1

9/16-24 UNEF

DN6

9/16-24 UNEF

DN6

9/16-24 UNEF

Fitting Material Options

CW617N, CW510L, CW724R
