KITCHEN

& BATH

PLUMBING

TAP & SUPPLY

HOSES

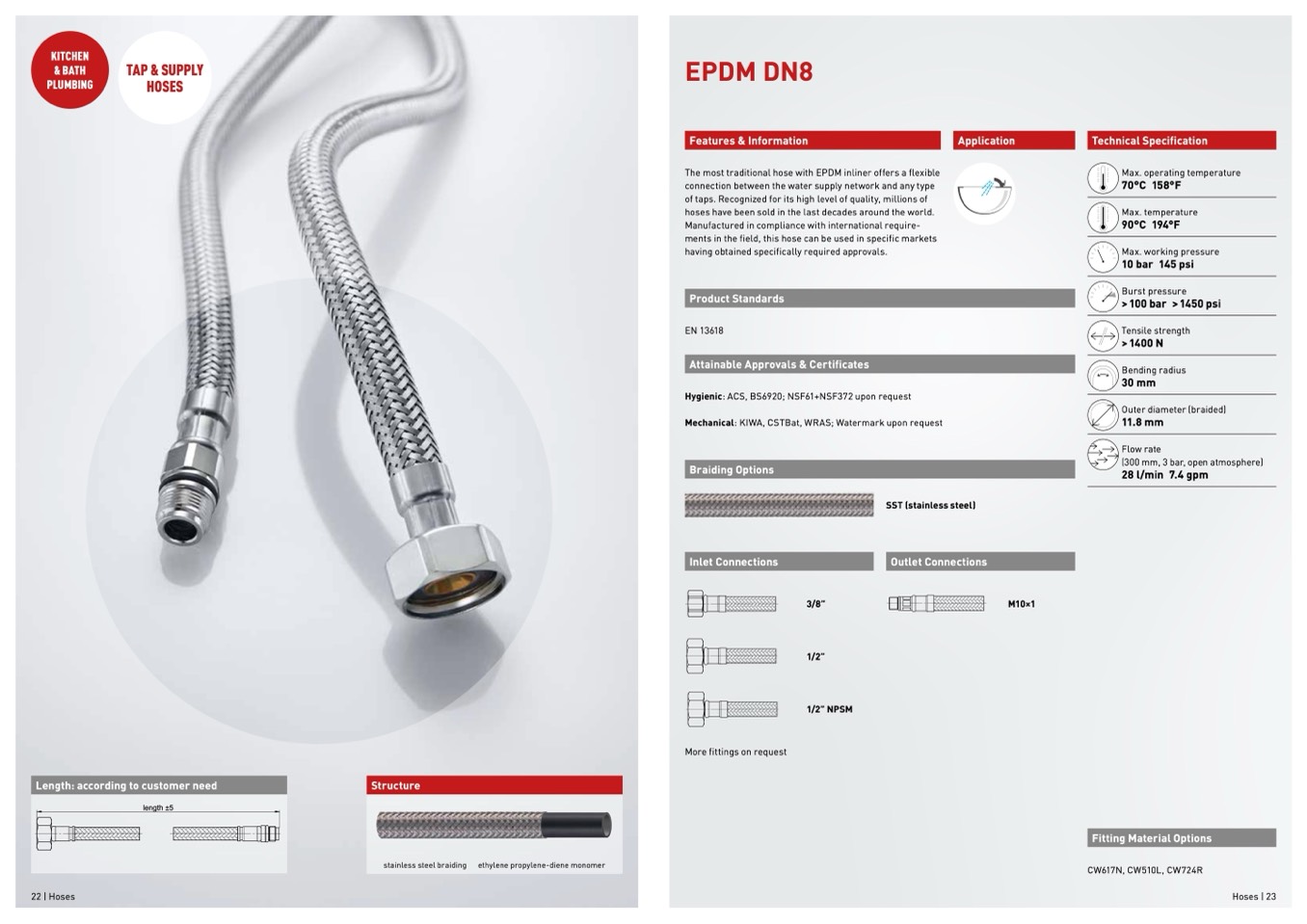

EPDM DN8

Features & Information

The most traditional hose with EPDM inliner offers a flexible

connection between the water supply network and any type

of taps. Recognized for its high level of quality, millions of

hoses have been sold in the last decades around the world.

Manufactured in compliance with international require-

ments in the field, this hose can be used in specific markets

having obtained specifically required approvals.

Product Standards

EN 13618

Attainable Approvals & Certificates

Hygienic: ACS, BS6920; NSF61+NSF372 upon request

Mechanical: KIWA, CSTBat, WRAS; Watermark upon request

Length: according to customer need

Length: according to customer need

length ±5

More fittings on request

1/2" NPSM

1/2" NPSM

22 | Hoses

Hoses | 23

length ±5

Structure

stainless steel braiding

ethylene propylene-diene monomer

CW617N, CW510L, CW724R

Braiding Options

EPDM DN8

Inlet Connections

EPDM DN8

Inlet Connections

SST (stainless steel)

Inlet Connections

Outlet Connections

EPDM DN8

Inlet Connections

3/8"

EPDM DN8

Outlet Connections

3/8"

3/8”

3/8"

1/2"

1/2”

1/2"

1/2"

M10×1

1/2” NPSM

1/2" NPSM

Application

Technical Specification

Max. operating temperature

70°C 158°F

Max. temperature

90°C 194°F

Max. working pressure

10 bar 145 psi

Burst pressure

>100bar >1450psi

Tensile strength

>1400N

Bending radius

30 mm

Outer diameter (braided)

11.8 mm

Flow rate

(300 mm, 3 bar, open atmosphere)

28 l/min 7.4 gpm

M10x1

Fitting Material Options
