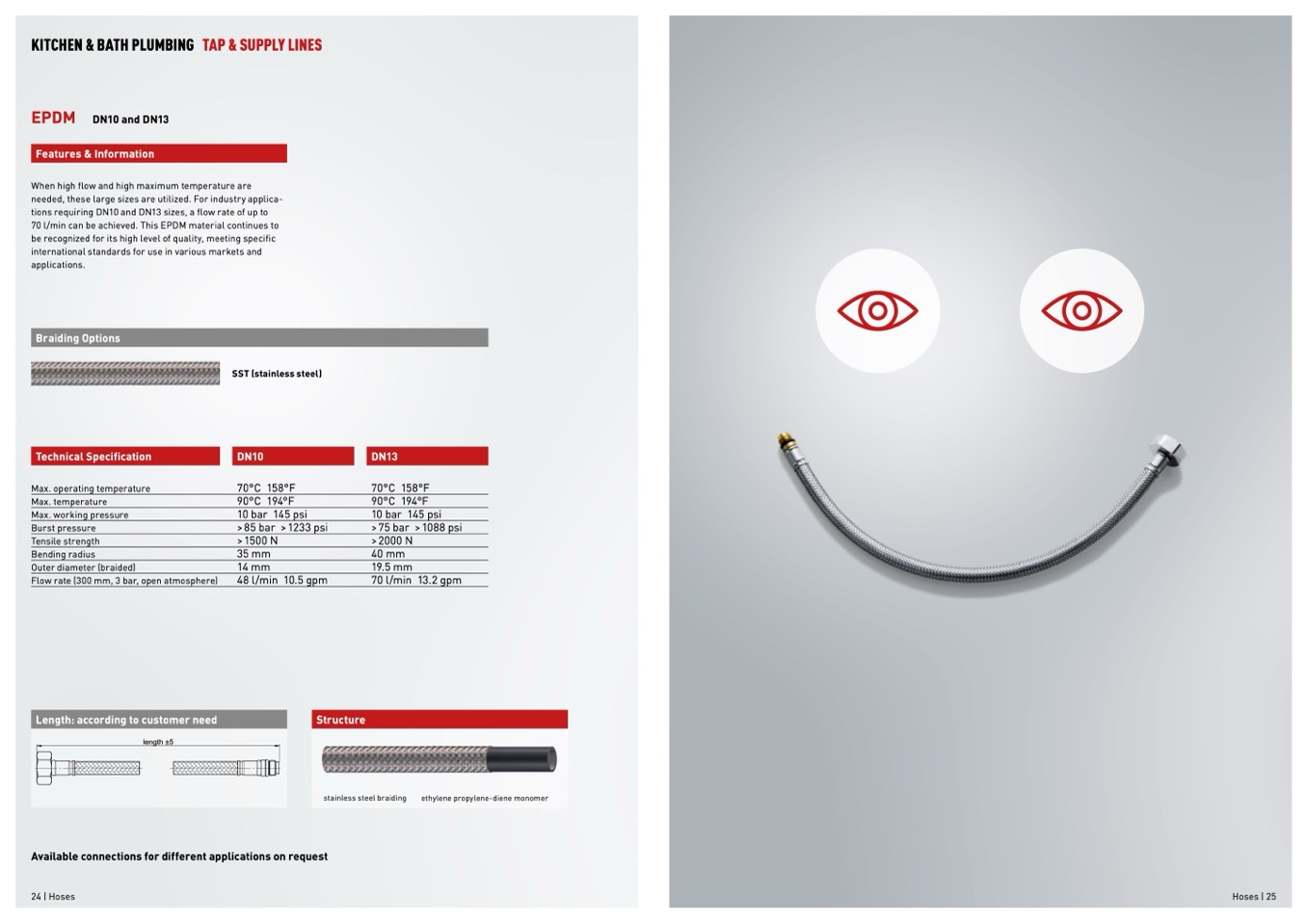

KITCHEN & BATH PLUMBING TAP & SUPPLY LINES

EPDM

DN10 and DN13

Features & Information

When high flow and high maximum temperature are

needed, these large sizes are utilized. For industry applica-

tions requiring DN10 and DN13 sizes, a flow rate of up to

70 l/min can be achieved. This EPDM material continues to

be recognized for its high level of quality, meeting specific

international standards for use in various markets and

applications.

Braiding Options

Technical Specification

Max. operating temperature

Max. temperature

Max. working pressure

Burstpressure

Tensile strength

Bending radius

Outer diameter (braided)

Flow rate (300 mm, 3 bar, open atmosphere)

Length: according to customer need

length ±5

length ±5

SST (stainless steel)

DN10

70°C 158°F

90°C 194°F

10 bar 145 psi

>85bar >1233psi

> 1500 N

35 mm

14 mm

48 l/min 10.5 gpm

DN13

70°C 158°F

90°C 194°F

10 bar 145 psi

>75bar >1088psi

> 2000 N

40 mm

19.5 mm

70 l/min 13.2 gpm

Structure

stainless steel braiding

ethylene propylene-diene monomer

Length: according to customer need

Available connections for different applications on request
