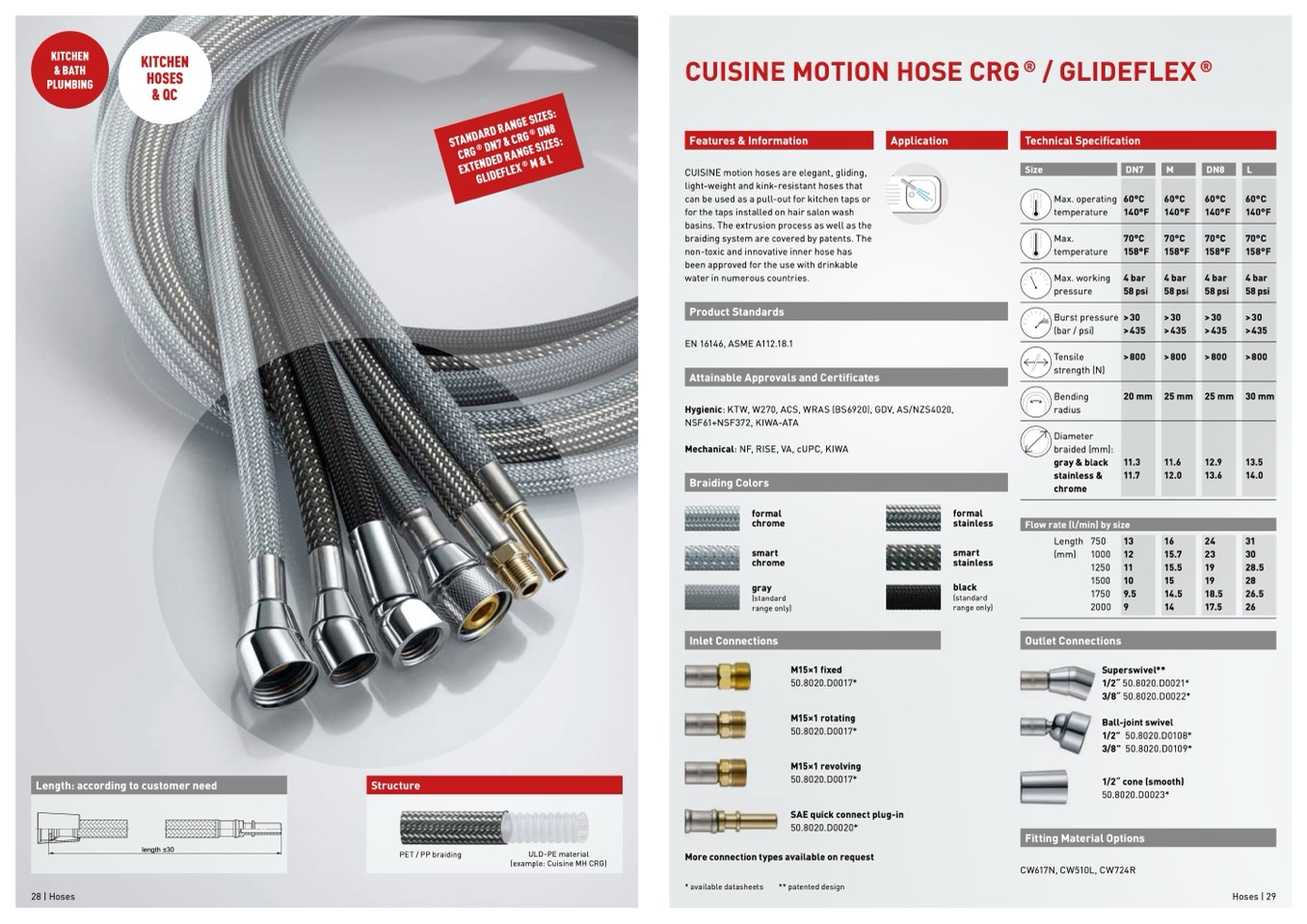

CUISINE MOTION HOSE CRG
®
/ GLIDEFLEX
®
Features & Information
CUISINE motion hoses are elegant, gliding,
light-weight and kink-resistant hoses that
can be used as a pull-out for kitchen taps or
for the taps installed on hair salon wash
basins. The extrusion process as well as the
braiding system are covered by patents. The
non-toxic and innovative inner hose has
been approved for the use with drinkable
water in numerous countries.
Product Standards
EN 16146, ASME A112.18.1
Attainable Approvals and Certificates
Application
Technical Specification
Max. operating
temperature
Max.
temperature
Max. working
pressure
Burst pressure
(bar / psi)
Tensile
strength (N)
Bending
radius
Diameter
braided (mm):
gray & black
stainless &
chrome
Length 750
(mm) 1000
1250
1500
1750
2000
Outlet Connections
Superswivel**
1/2 ̋ 50.8020.D0021*
3/8 ̋ 50.8020.D0022*
Ball-joint swivel
1/2” 50.8020.D0108*
3/8” 50.8020.D0109*
1/2 ̋ cone (smooth)
50.8020.D0023*
Fitting Material Options
Size
DN7
M
DN8
L
60°C
140°F
70°C
158°F
4 bar
58 psi
>30
>435
> 800
20 mm
11.3
11.7
60°C
140°F
70°C
158°F
4 bar
58 psi
>30
>435
> 800
25 mm
11.6
12.0
60°C
140°F
70°C
158°F
4 bar
58 psi
>30
>435
> 800
25 mm
12.9
13.6
60°C
140°F
70°C
158°F
4 bar
58 psi
>30
>435
> 800
30 mm
13.5
14.0
Hygienic: KTW, W270, ACS, WRAS (BS6920), GDV, AS/NZS4020,
NSF61+NSF372, KIWA-ATA
Length: according to customer need
length ±5
length ±5
length ±20
Mechanical: NF, RISE, VA, cUPC, KIWA
Braiding Colors
formal
chrome
smart
chrome
gray
(standard
range only)
formal
stainless
smart
stainless
black
(standard
range only)
Inlet Connections
M15×1 fixed
50.8020.D0017*
M15×1 rotating
50.8020.D0017*
M15×1 revolving
50.8020.D0017*
SAE quick connect plug-in
50.8020.D0020*
Structure
PET / PP braiding
ULD-PE material
(example: Cuisine MH CRG)
28 | Hoses
* available datasheets
** patented design
Hoses | 29
length ±30
More connection types available on request
Flow rate (l/min) by size
CW617N, CW510L, CW724R
13
12
11
10
9.5
9
16
15.7
15.5
15
14.5
14
Length: according to customer need
24
23
19
19
18.5
17.5
31
30
28.5
28
26.5
26
length ±30
STANDARD RANGE SIZES:
CRG
®
DN7 & CRG
®
DN8
EXTENDED RANGE SIZES:
GLIDEFLEX
®
M & L
