KITCHEN

& BATH

PLUMBING

KITCHEN

HOSES

& QC

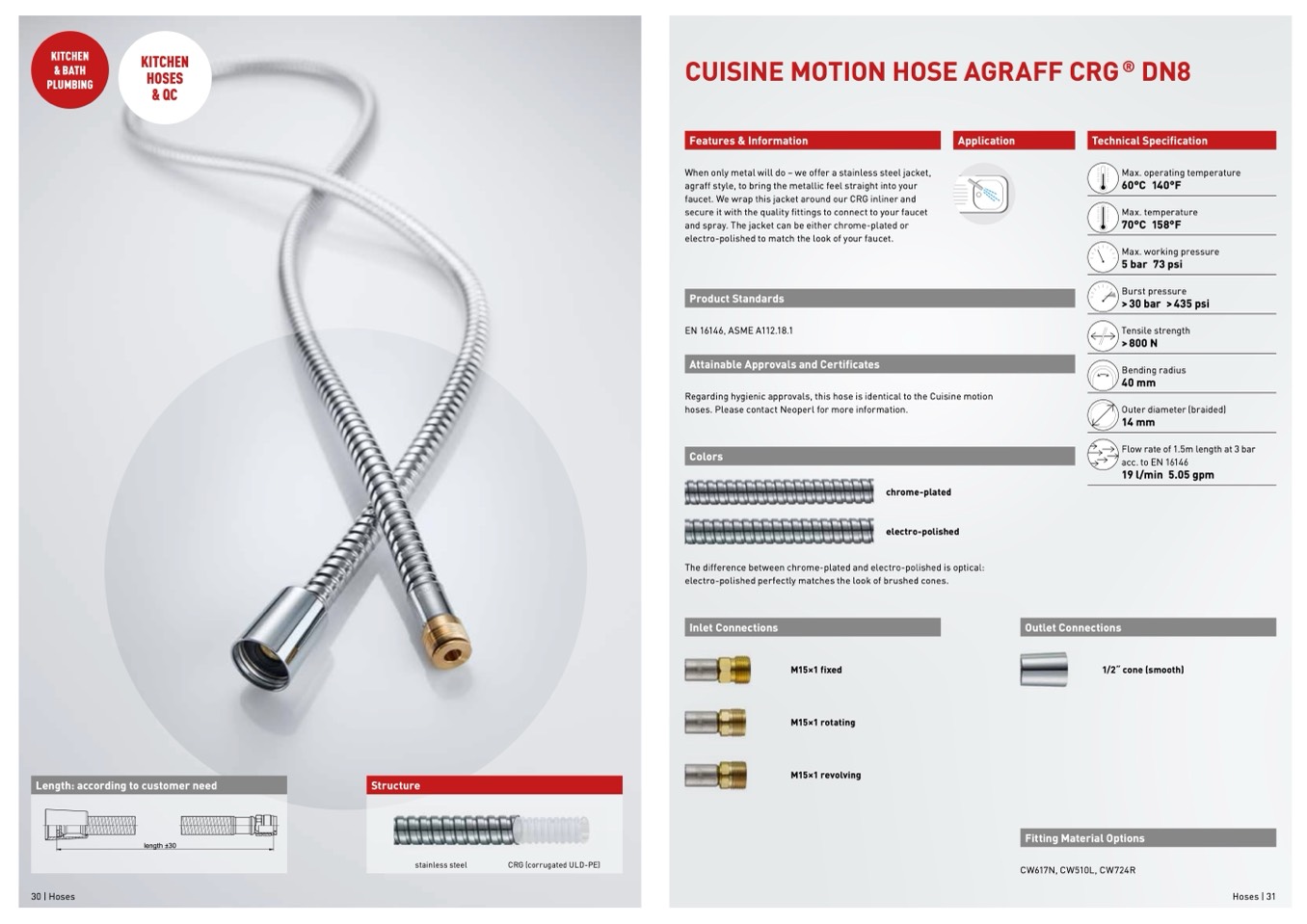

CUISINE MOTION HOSE AGRAFF CRG

®

DN8

Features & Information

When only metal will do – we offer a stainless steel jacket,

agraff style, to bring the metallic feel straight into your

faucet. We wrap this jacket around our CRG inliner and

secure it with the quality fittings to connect to your faucet

and spray. The jacket can be either chrome-plated or

electro-polished to match the look of your faucet.

Product Standards

EN 16146, ASME A112.18.1

Attainable Approvals and Certificates

Application

Technical Specification

Regarding hygienic approvals, this hose is identical to the Cuisine motion

hoses. Please contact Neoperl for more information.

Colors

chrome-plated

electro-polished

The difference between chrome-plated and electro-polished is optical:

electro-polished perfectly matches the look of brushed cones.

Max. operating temperature

60°C 140°F

Max. temperature

70°C 158°F

Max. working pressure

5 bar 73 psi

Burst pressure

>30 bar >435 psi

Tensile strength

>800N

Bending radius

40 mm

Outer diameter (braided)

14mm

Flow rate of 1.5m length at 3 bar

acc. to EN 16146

19 l/min 5.05 gpm

Length: according to customer need

length ±5

length ±5

length ±20

Inlet Connections

Outlet Connections

1/2 ̋ cone (smooth)

M15×1 fixed

M15×1 rotating

M15×1 revolving

Length: according to customer need

length ±30

Structure

stainless steel

CRG (corrugated ULD-PE)

30 | Hoses

Hoses | 31

length ±30

Fitting Material Options

CW617N, CW510L, CW724R
