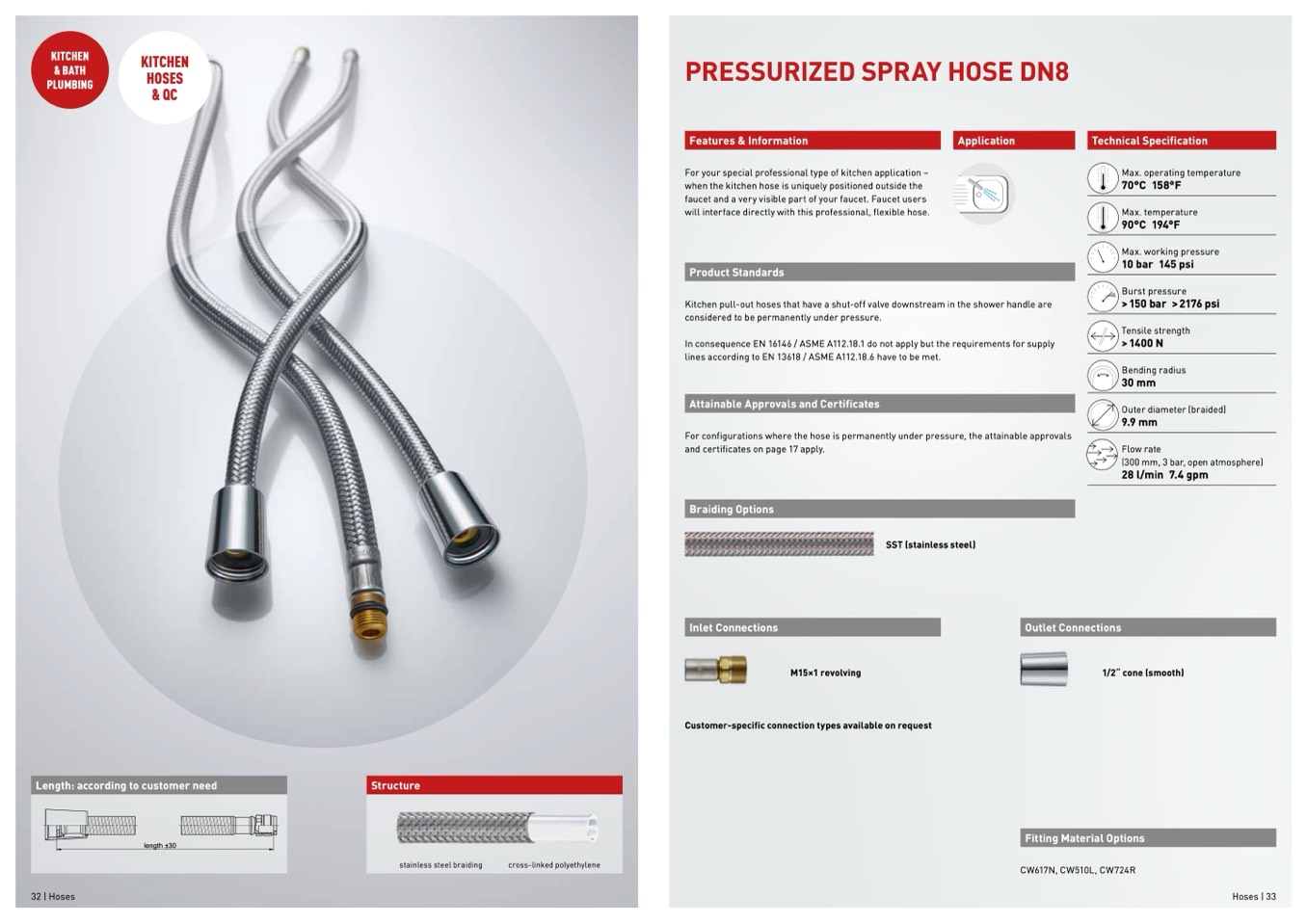

PRESSURIZED SPRAY HOSE DN8

Features & Information

For your special professional type of kitchen application –

when the kitchen hose is uniquely positioned outside the

faucet and a very visible part of your faucet. Faucet users

will interface directly with this professional, flexible hose.

Product Standards

Application

Technical Specification

Max. operating temperature

70°C 158°F

Max. temperature

90°C 194°F

Max. working pressure

10 bar 145 psi

Burst pressure

> 150 bar > 2176 psi

Tensile strength

>1400 N

Bending radius

30 mm

Outer diameter (braided)

9.9mm

Flow rate

(300 mm, 3 bar, open atmosphere)

28 l/min 7.4 gpm

Kitchen pull-out hoses that have a shut-off valve downstream in the shower handle are

considered to be permanently under pressure.

In consequence EN 16146 / ASME A112.18.1 do not apply but the requirements for supply

lines according to EN 13618 / ASME A112.18.6 have to be met.

Attainable Approvals and Certificates

For configurations where the hose is permanently under pressure, the attainable approvals

and certificates on page 17 apply.

Length: according to customer need

length ±5

length ±5

length ±20

Braiding Options

Inlet Connections

SST (stainless steel)

M15×1 revolving

Outlet Connections

1/2 ̋ cone (smooth)

Customer-specific connection types available on request

Length: according to customer need

length ±30

Structure

stainless steel braiding

cross-linked polyethylene

32 | Hoses

Hoses | 33

length ±30

Fitting Material Options

CW617N, CW510L, CW724R
