KITCHEN

& BATH

PLUMBING

KITCHEN

HOSES

& QC

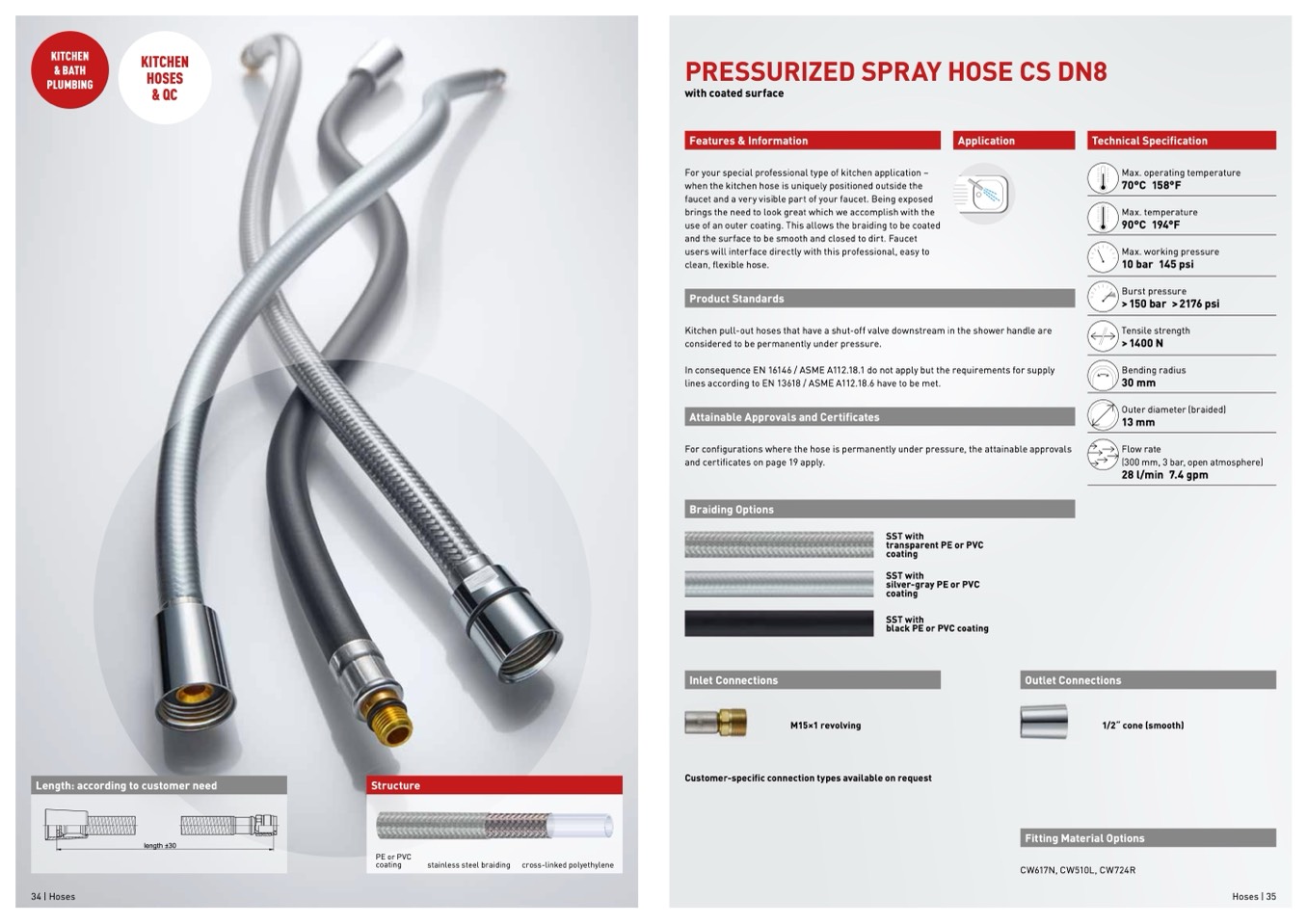

PRESSURIZED SPRAY HOSE CS DN8

with coated surface

Features & Information

For your special professional type of kitchen application –

when the kitchen hose is uniquely positioned outside the

faucet and a very visible part of your faucet. Being exposed

brings the need to look great which we accomplish with the

use of an outer coating. This allows the braiding to be coated

and the surface to be smooth and closed to dirt. Faucet

users will interface directly with this professional, easy to

clean, flexible hose.

Product Standards

Application

Technical Specification

Max. operating temperature

70°C 158°F

Max. temperature

90°C 194°F

Max. working pressure

10 bar 145 psi

Burst pressure

>150bar >2176psi

Tensile strength

>1400N

Bending radius

30 mm

Outer diameter (braided)

13mm

Flow rate

(300 mm, 3 bar, open atmosphere)

28 l/min 7.4 gpm

Kitchen pull-out hoses that have a shut-off valve downstream in the shower handle are

considered to be permanently under pressure.

In consequence EN 16146 / ASME A112.18.1 do not apply but the requirements for supply

lines according to EN 13618 / ASME A112.18.6 have to be met.

Attainable Approvals and Certificates

For configurations where the hose is permanently under pressure, the attainable approvals

and certificates on page 19 apply.

Length: according to customer need

length ±5

length ±5

length ±20

SST with

transparent PE or PVC

coating

SST with

silver-gray PE or PVC

coating

SST with

black PE or PVC coating

Braiding Options

Structure

PE or PVC

coating

stainless steel braiding cross-linked polyethylene

34 | Hoses

Hoses | 35

length ±30

Inlet Connections

Outlet Connections

1/2 ̋ cone (smooth)

Fitting Material Options

M15×1 revolving

Customer-specific connection types available on request

Length: according to customer need

length ±30

CW617N, CW510L, CW724R
