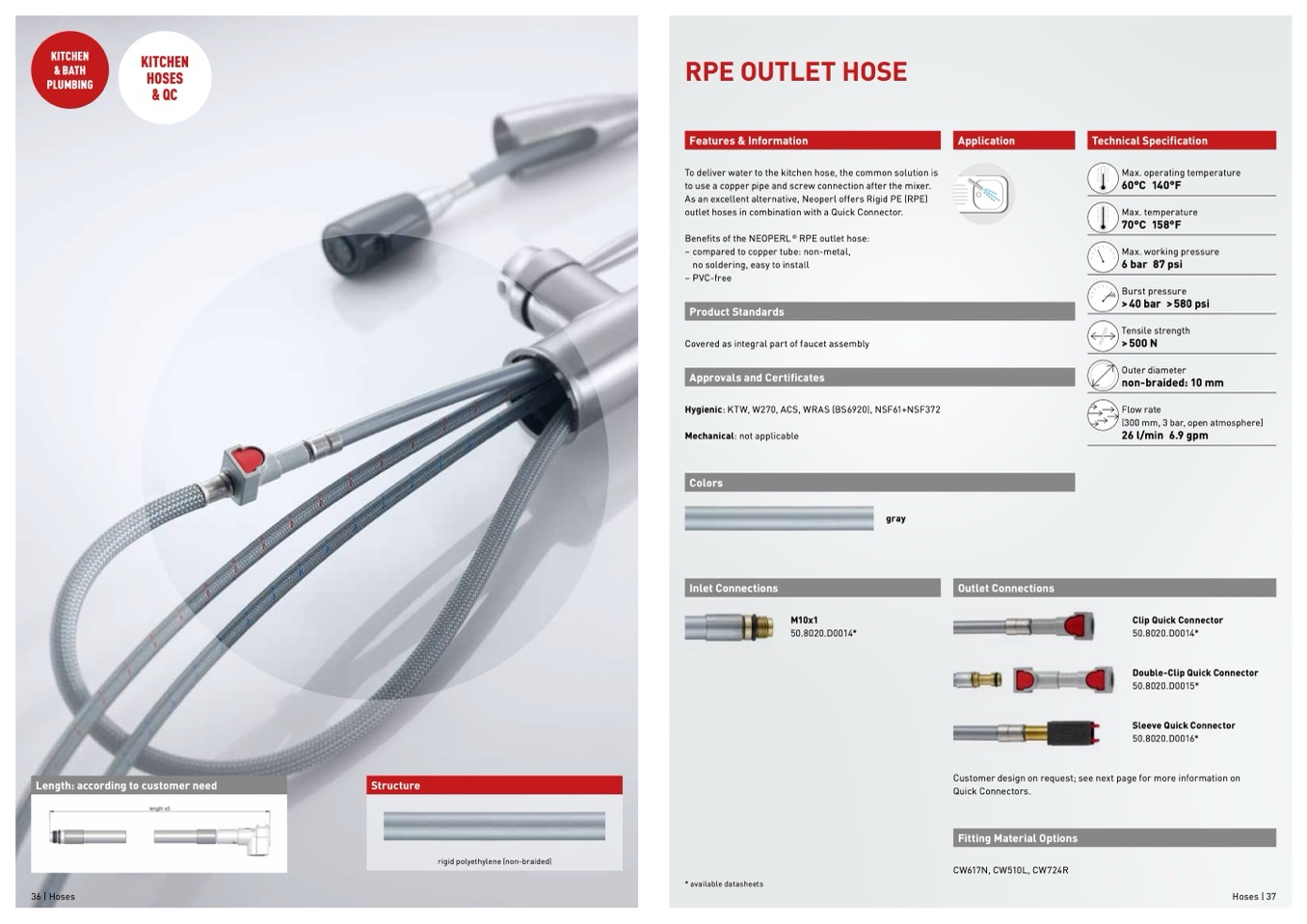

RPE OUTLET HOSE

Features & Information

To deliver water to the kitchen hose, the common solution is

to use a copper pipe and screw connection after the mixer.

As an excellent alternative, Neoperl offers Rigid PE (RPE)

outlet hoses in combination with a Quick Connector.

Benefits of the NEOPERL

®

RPE outlet hose:

– compared to copper tube: non-metal,

no soldering, easy to install

– PVC-free

Product Standards

Covered as integral part of faucet assembly

Approvals and Certificates

Hygienic: KTW, W270, ACS, WRAS (BS6920), NSF61+NSF372

Mechanical: not applicable

Application

Technical Specification

Max. operating temperature

60°C 140°F

Max. temperature

70°C 158°F

Max. working pressure

6 bar 87 psi

Burst pressure

>40 bar >580 psi

Tensile strength

>500 N

Outer diameter

non-braided: 10 mm

Flow rate

(300 mm, 3 bar, open atmosphere)

26 l/min 6.9 gpm

Colors

Inlet Connections

gray

Outlet Connections

M10x1

50.8020.D0014*

Clip Quick Connector

50.8020.D0014*

Double-Clip Quick Connector

50.8020.D0015*

Sleeve Quick Connector

50.8020.D0016*

Structure

rigid polyethylene (non-braided)

Length: according to customer need

Customer design on request; see next page for more information on

Quick Connectors.

Fitting Material Options

36 | Hoses

Hoses | 37

* available datasheets

CW617N, CW510L, CW724R
