NEOPERL

®

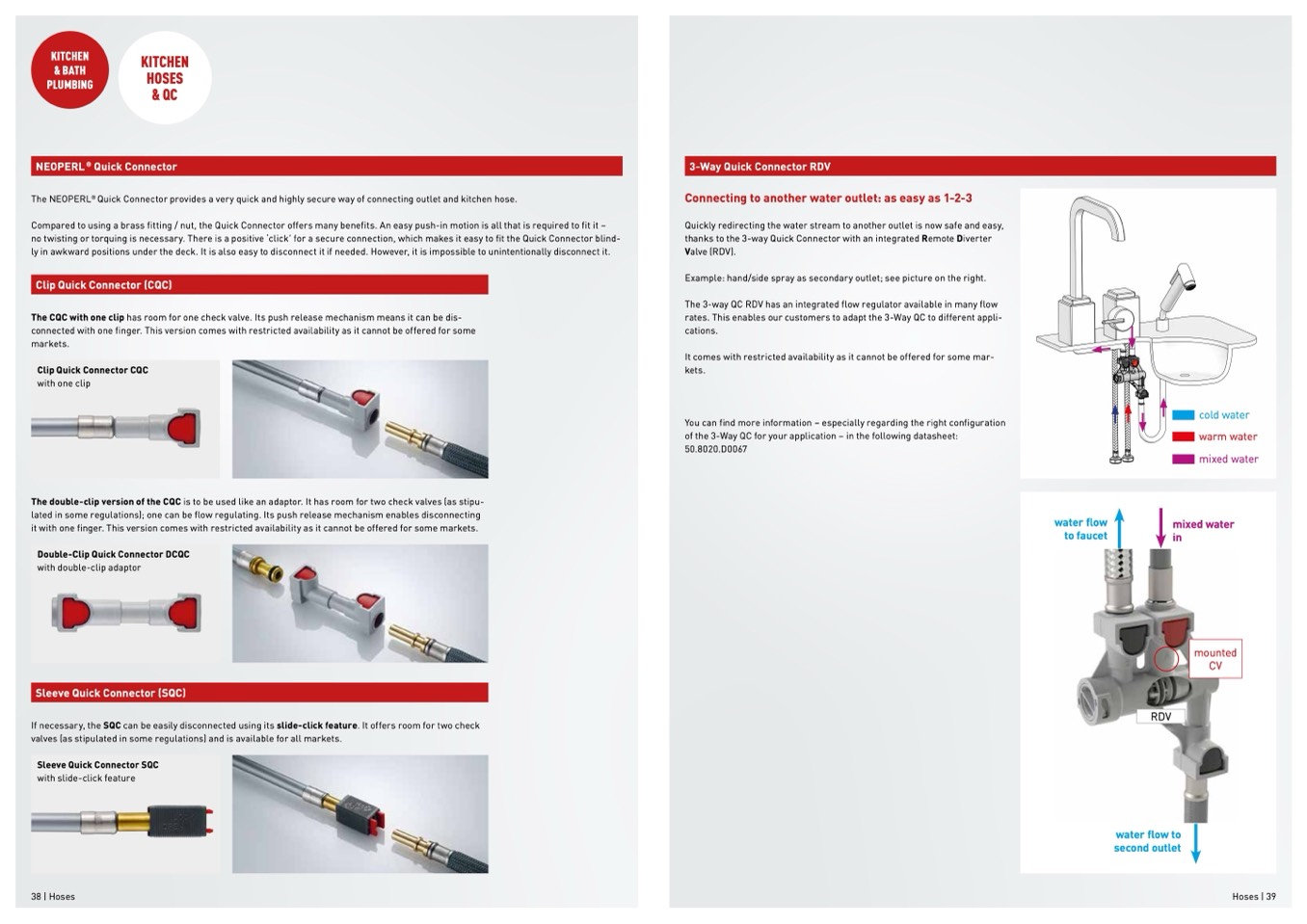

Quick Connector

The NEOPERL

®

Quick Connector provides a very quick and highly secure way of connecting outlet and kitchen hose.

Compared to using a brass fitting / nut, the Quick Connector offers many benefits. An easy push-in motion is all that is required to fit it –

no twisting or torquing is necessary. There is a positive ‘click’ for a secure connection, which makes it easy to fit the Quick Connector blind-

ly in awkward positions under the deck. It is also easy to disconnect it if needed. However, it is impossible to unintentionally disconnect it.

Clip Quick Connector (CQC)

The CQC with one clip has room for one check valve. Its push release mechanism means it can be dis-

connected with one finger. This version comes with restricted availability as it cannot be offered for some

markets.

Clip Quick Connector CQC

with one clip

The double-clip version of the CQC is to be used like an adaptor. It has room for two check valves (as stipu-

lated in some regulations); one can be flow regulating. Its push release mechanism enables disconnecting

it with one finger. This version comes with restricted availability as it cannot be offered for some markets.

Double-Clip Quick Connector DCQC

with double-clip adaptor

Sleeve Quick Connector (SQC)

If necessary, the SQC can be easily disconnected using its slide-click feature. It offers room for two check

valves (as stipulated in some regulations) and is available for all markets.

Sleeve Quick Connector SQC

with slide-click feature

3-Way Quick Connector RDV

Connecting to another water outlet: as easy as 1-2-3

Quickly redirecting the water stream to another outlet is now safe and easy,

thanks to the 3-way Quick Connector with an integrated Remote Diverter

Valve (RDV).

Example: hand/side spray as secondary outlet; see picture on the right.

The 3-way QC RDV has an integrated flow regulator available in many flow

rates. This enables our customers to adapt the 3-Way QC to different appli-

cations.

It comes with restricted availability as it cannot be offered for some mar-

kets.

You can find more information – especially regarding the right configuration

of the 3-Way QC for your application – in the following datasheet:

50.8020.D0067

cold water

warm water

mixed water

mixed water

in

mounted

CV

RDV

water flow to

second outlet

38 | Hoses

Hoses | 39

water flow

to faucet
