KITCHEN

& BATH

PLUMBING

SHOWER &

SHATTAF

HOSES

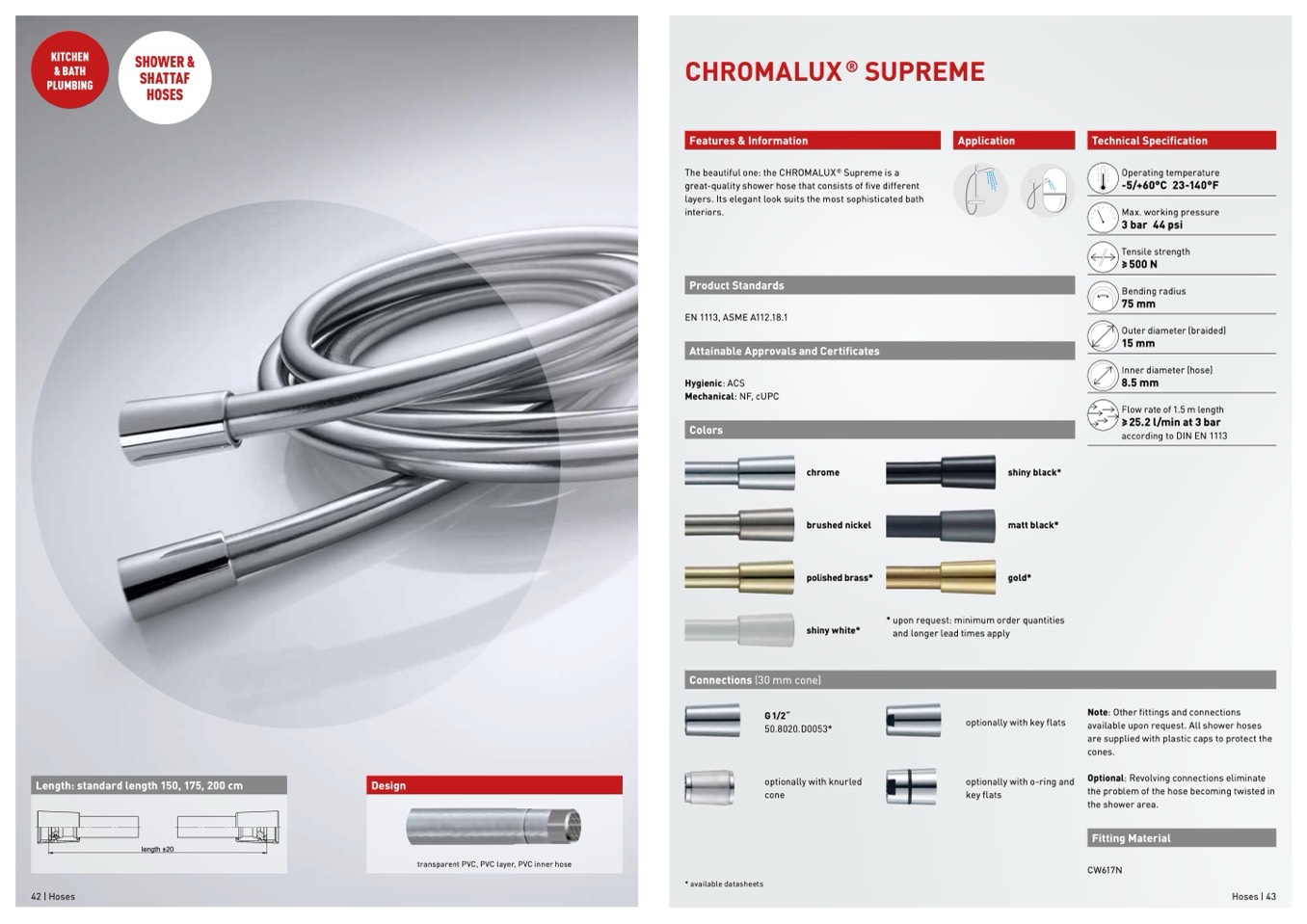

CHROMALUX

®

SUPREME

Features & Information

The beautiful one: the CHROMALUX

®

Supreme is a

great-quality shower hose that consists of five different

layers. Its elegant look suits the most sophisticated bath

interiors.

Product Standards

EN 1113, ASME A112.18.1

Attainable Approvals and Certificates

Application

Technical Specification

Operating temperature

-5/+60°C 23-140°F

Max. working pressure

3 bar 44 psi

Tensile strength

≥500N

Bending radius

75 mm

Outer diameter (braided)

15mm

Inner diameter (hose)

8.5 mm

Flow rate of 1.5 m length

≥ 25.2 l/min at 3 bar

according to DIN EN 1113

Hygienic: ACS

Mechanical: NF, cUPC

Colors

Length: according to customer need

length ±5

length ±5

length ±20

chrome

brushed nickel

polished brass*

shiny white*

shiny black*

matt black*

gold*

* upon request: minimum order quantities

and longer lead times apply

optionally with key flats

optionally with o-ring and

key flats

Connections (30 mm cone)

G1/2 ̋

50.8020.D0053*

optionally with knurled

cone

Note: Other fittings and connections

available upon request. All shower hoses

are supplied with plastic caps to protect the

cones.

Optional: Revolving connections eliminate

the problem of the hose becoming twisted in

the shower area.

Fitting Material

Design

transparent PVC, PVC layer, PVC inner hose

Length: standard length 150, 175, 200 cm

42 | Hoses

Hoses | 43

l

e

n

g

t

h

±

3

0

* available datasheets

CW617N
