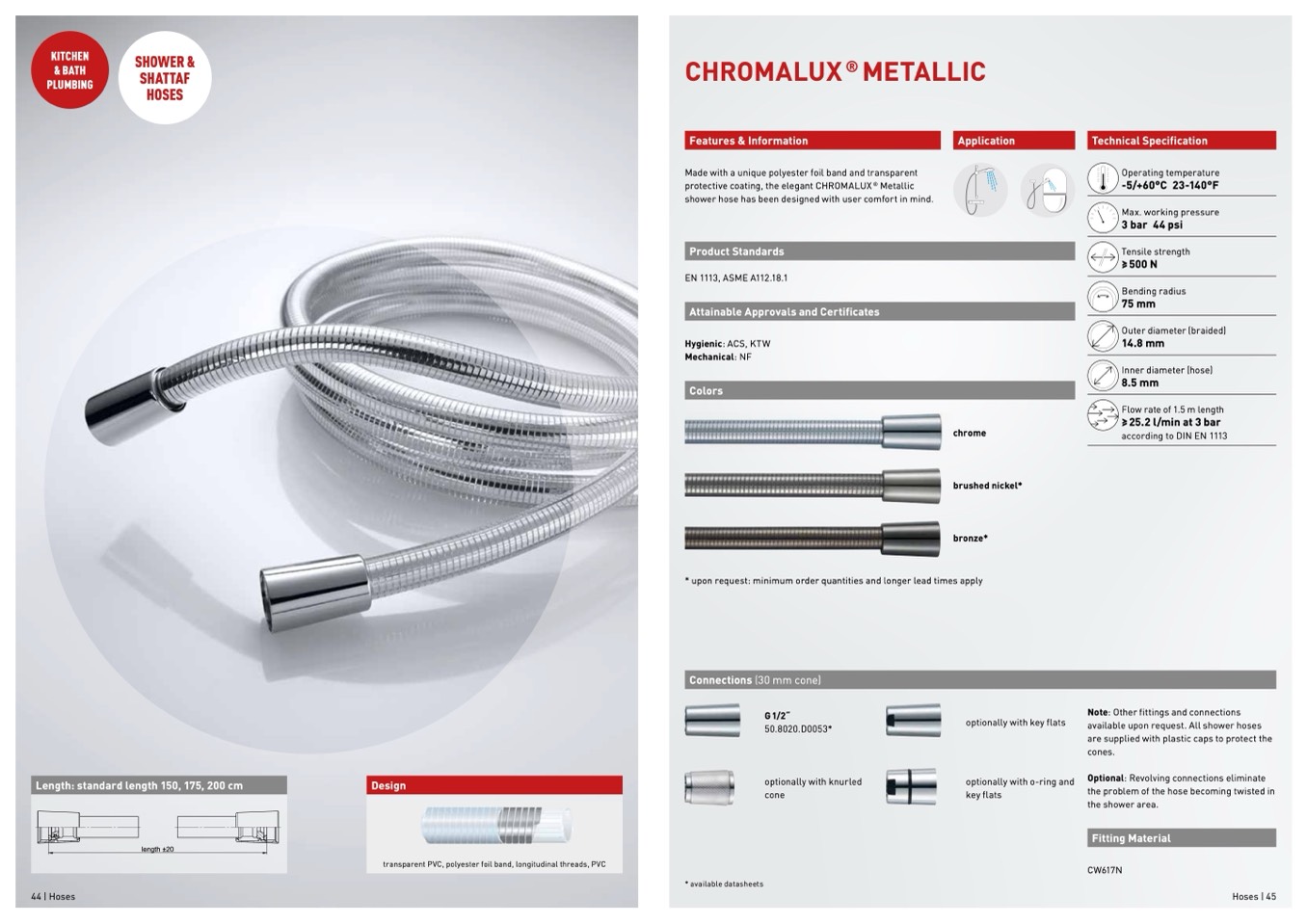

CHROMALUX

®

METALLIC

Features & Information

Made with a unique polyester foil band and transparent

protective coating, the elegant CHROMALUX

®

Metallic

shower hose has been designed with user comfort in mind.

Product Standards

EN 1113, ASME A112.18.1

Attainable Approvals and Certificates

Hygienic: ACS, KTW

Mechanical: NF

Colors

Application

Technical Specification

Operating temperature

-5/+60°C 23-140°F

Max. working pressure

3 bar 44 psi

Tensile strength

≥500N

Bending radius

75 mm

Outer diameter (braided)

14.8 mm

Inner diameter (hose)

8.5 mm

Flow rate of 1.5 m length

≥ 25.2 l/min at 3 bar

according to DIN EN 1113

chrome

brushed nickel*

bronze*

* upon request: minimum order quantities and longer lead times apply

Connections (30 mm cone)

G1/2 ̋

50.8020.D0053*

optionally with knurled

cone

optionally with key flats

optionally with o-ring and

key flats

Note: Other fittings and connections

available upon request. All shower hoses

are supplied with plastic caps to protect the

cones.

Optional: Revolving connections eliminate

the problem of the hose becoming twisted in

the shower area.

Fitting Material

* available datasheets

CW617N

Hoses | 45

KITCHEN

& BATH

PLUMBING

SHOWER &

SHATTAF

HOSES

Length: according to customer need

length ±5

length ±5

length ±20

Design

transparent PVC, polyester foil band, longitudinal threads, PVC

Length: standard length 150, 175, 200 cm

44 | Hoses
