KITCHEN

& BATH

PLUMBING

SHOWER &

SHATTAF

HOSES

CHROMALUX

®

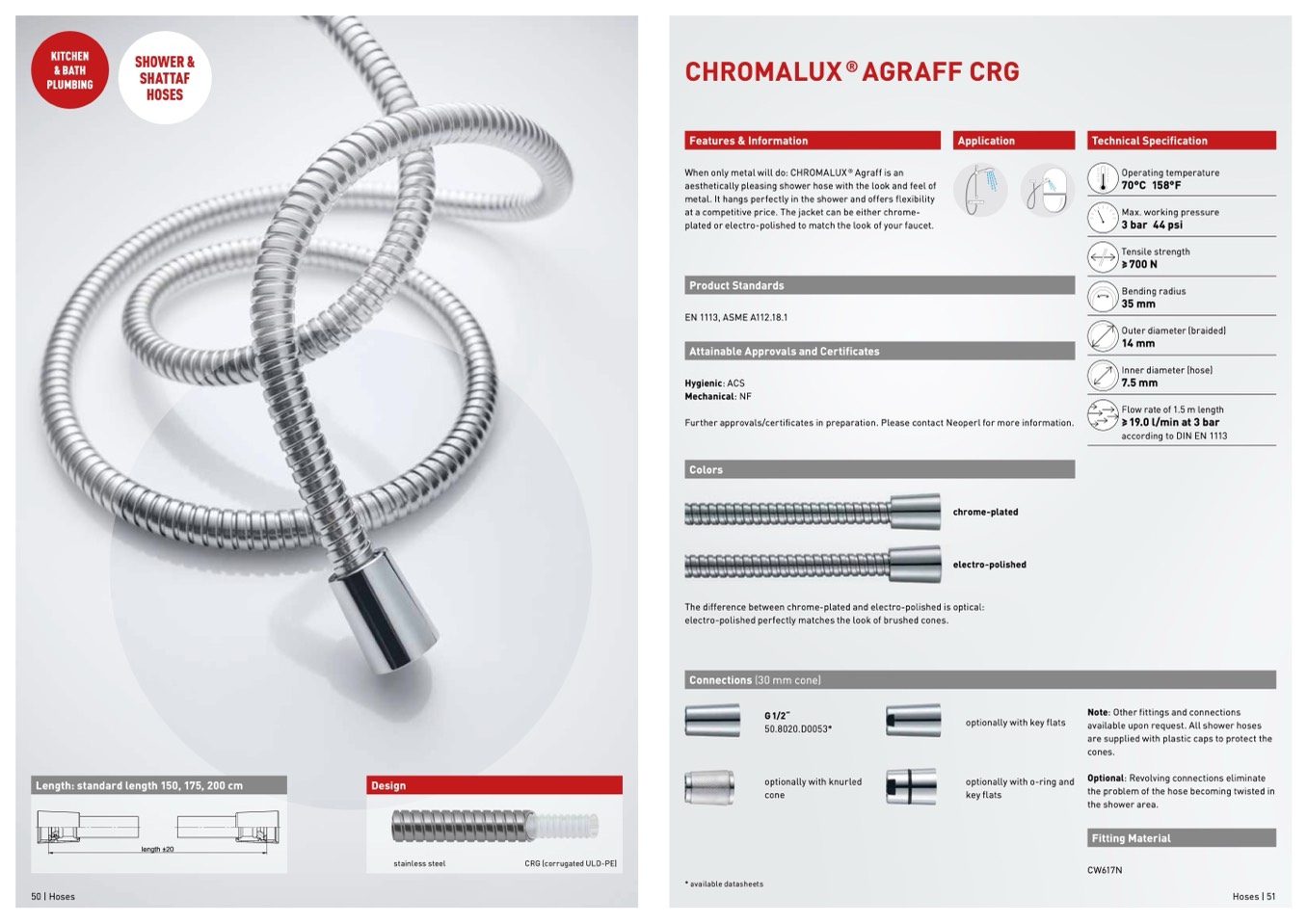

AGRAFF CRG

Features & Information

When only metal will do: CHROMALUX

®

Agraff is an

aesthetically pleasing shower hose with the look and feel of

metal. It hangs perfectly in the shower and offers flexibility

at a competitive price. The jacket can be either chrome-

plated or electro-polished to match the look of your faucet.

Product Standards

EN 1113, ASME A112.18.1

Attainable Approvals and Certificates

Hygienic: ACS

Mechanical: NF

Application

Technical Specification

Operating temperature

70°C 158°F

Max. working pressure

3 bar 44 psi

Tensile strength

≥700N

Bending radius

35 mm

Outer diameter (braided)

14mm

Inner diameter (hose)

7.5 mm

Flow rate of 1.5 m length

≥19.0 l/min at 3 bar

according to DIN EN 1113

Further approvals/certificates in preparation. Please contact Neoperl for more information.

Colors

chrome-plated

electro-polished

Length: according to customer need

length ±5

length ±5

The difference between chrome-plated and electro-polished is optical:

electro-polished perfectly matches the look of brushed cones.

Design

stainless steel

CRG (corrugated ULD-PE)

Length: standard length 150, 175, 200 cm

length ±20

Connections (30 mm cone)

G1/2 ̋

50.8020.D0053*

optionally with knurled

cone

optionally with key flats

optionally with o-ring and

key flats

Note: Other fittings and connections

available upon request. All shower hoses

are supplied with plastic caps to protect the

cones.

Optional: Revolving connections eliminate

the problem of the hose becoming twisted in

the shower area.

Fitting Material

50 | Hoses

Hoses | 51

l

e

n

g

t

h

±

3

0

* available datasheets

CW617N
