KITCHEN

& BATH

PLUMBING

TOILET

HOSES

FLEXCORE

®

DN8

Features & Information

Toilet hoses come with different kinds of braiding according

to customers’ demand. The inliner material guarantees

conformity to various worldwide standards for materials in

contact with water. Fittings can be made of brass, stainless

steel or other materials depending on customer require-

ments. All toilet hoses are manufactured in compliance with

the EN 13618 standard.

Product Standards

EN 13618, ASME A112.18.6, AS/NZS 3499

Attainable Approvals and Certificates

Length: according to customer need

length ±5

Length: according to customer need

length ±5

3/8"

3/8”

3/8"

54 | Hoses

Hoses | 55

l

e

n

g

t

h

±

2

0

Structure

stainless steel braiding

PE-RT polyethylene raised temperature

CW617N, CW510L, CW724R

Hygienic: KTW, W270, ACS, GDV, DM174, AS/NZS4020, NSF61+NSF372

Mechanical: DVGW, VDE, SVGW, NF, WRAS, KIWA, RISE, VA, STF, SINTEF, AENOR, SABS,

Watermark, cUPC / UPC

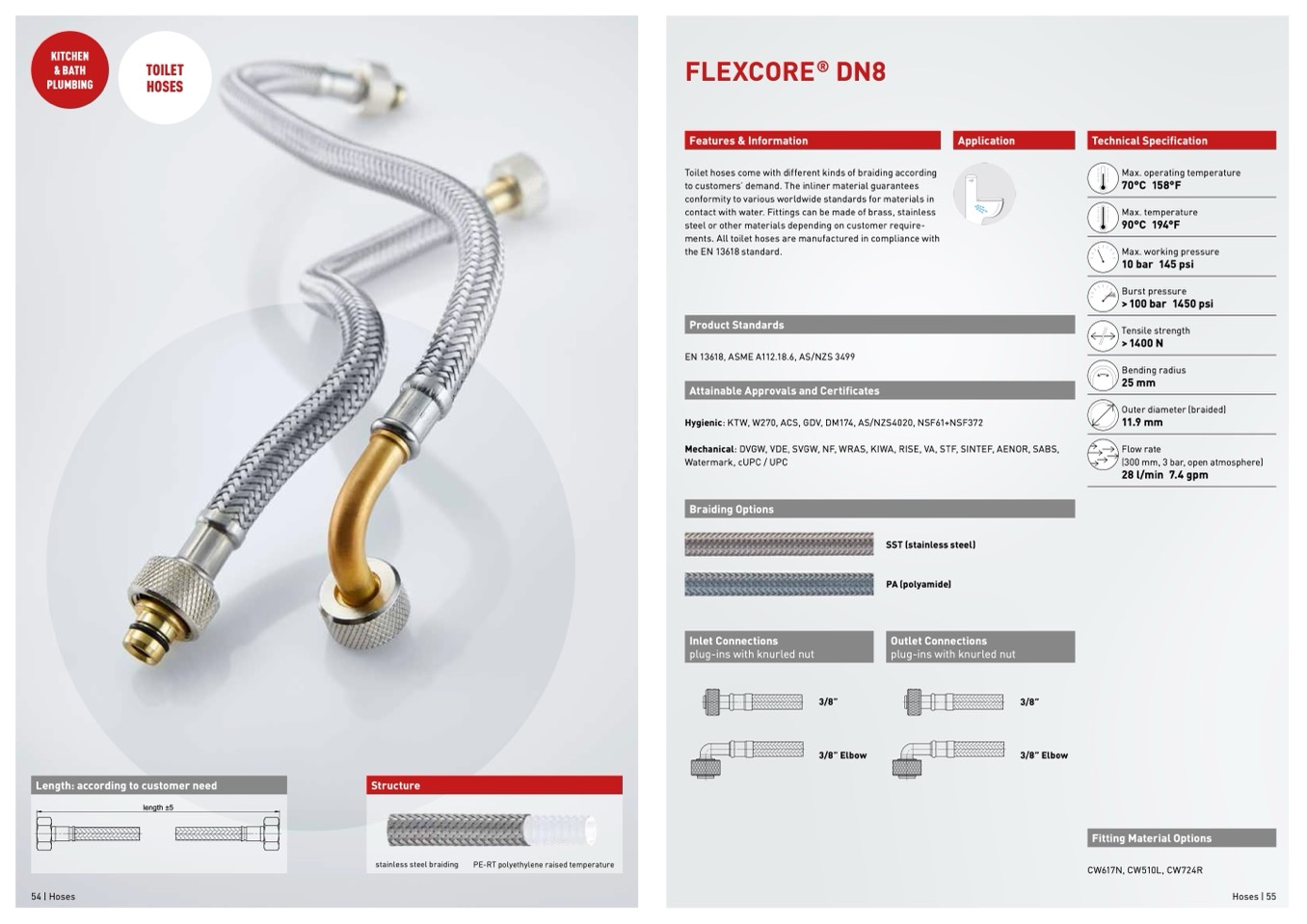

FLEXCORE DN8

Inlet / Outlet Connections knurled

FLEXCORE DN8

Inlet / Outlet Connections knurled

Inlet Connections

Inlet Connections

SST (stainless steel)

PA (polyamide)

Outlet Connections

Braiding Options

Inlet Connections

plug-ins with knurled nut

plug-ins with knurled nut

FLEXCORE DN8

Inlet / Outlet Connections knurled

FLEXCORE DN8

Inlet / Outlet Connections knurled

Inlet Connections

Inlet Connections

Outlet Connections

Outlet Connections

Outlet Connections

Outlet Connections

3/8"

3/8"

3/8"

3/8"

Elbow

Elbow

3/8"

3/8"

3/8" Elbow

3/8" Elbow

3/8"

3/8”

3/8"

3/8" Elbow

3/8" Elbow

3/8” Elbow

3/8" Elbow

3/8” Elbow

Application

Technical Specification

Max. operating temperature

70°C 158°F

Max. temperature

90°C 194°F

Max. working pressure

10 bar 145 psi

Burst pressure

> 100 bar 1450 psi

Tensile strength

>1400N

Bending radius

25 mm

Outer diameter (braided)

11.9 mm

Flow rate

(300 mm, 3 bar, open atmosphere)

28 l/min 7.4 gpm

3/8" Elbow

Fitting Material Options
