TECHNICAL
WATER
HEATERS
& PUMPS

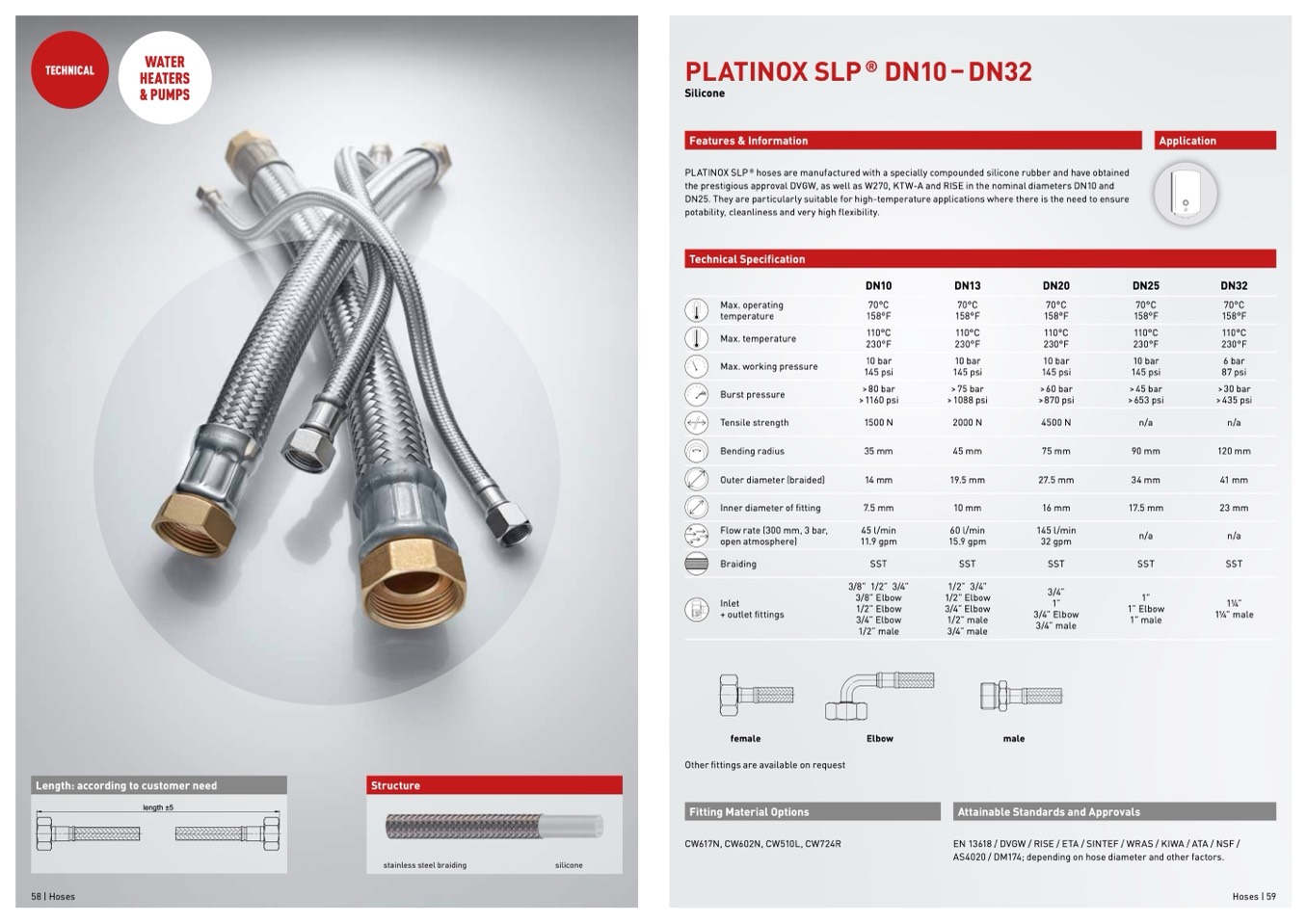

PLATINOXSLP
®
DN10–DN32
Silicone
Features & Information
PLATINOX SLP
®
hoses are manufactured with a specially compounded silicone rubber and have obtained
the prestigious approval DVGW, as well as W270, KTW-A and RISE in the nominal diameters DN10 and
DN25. They are particularly suitable for high-temperature applications where there is the need to ensure
potability, cleanliness and very high flexibility.
Length: according to customer need
length ±5
Length: according to customer need
length ±5
female
1/2” male
3/4” male
Elbow
male
58 | Hoses
Hoses | 59
l
e
n
g
t
h
±
2
0
Structure
stainless steel braiding
Attainable Standards and Approvals
silicone
EN 13618 / DVGW / RISE / ETA / SINTEF / WRAS / KIWA / ATA / NSF /
AS4020 / DM174; depending on hose diameter and other factors.
Technical Specification
Max. operating
temperature
Max. temperature
Max. working pressure
Burst pressure
Tensile strength
Bending radius
Outer diameter (braided)
Inner diameter of fitting
Flow rate (300 mm, 3 bar,
open atmosphere)
Braiding
Inlet
+ outlet fittings
PLATINOX SLP DN10-DN32
female
Other fittings are available on request
Fitting Material Options
CW617N, CW602N, CW510L, CW724R
male
DN10
70°C
158°F
110°C
230°F
10 bar
145 psi
>80 bar
>1160 psi
1500 N
35 mm
14 mm
7.5 mm
45 l/min
11.9 gpm
DN13
70°C
158°F
110°C
230°F
10 bar
145 psi
>75 bar
>1088 psi
2000 N
45 mm
19.5 mm
10 mm
60 l/min
15.9 gpm
DN20
70°C
158°F
110°C
230°F
10 bar
145 psi
>60 bar
>870 psi
4500 N
75 mm
16 mm
145 l/min
32 gpm
SST
3/4”
1”
3/4” Elbow
3/4” male
DN25
70°C
158°F
110°C
230°F
10 bar
145 psi
>45 bar
>653 psi
n/a
90 mm
34 mm
17.5 mm
n/a
SST
1”
1” Elbow
1” male
DN32
70°C
158°F
110°C
230°F
6 bar
87 psi
>30 bar
>435 psi
n/a
120 mm
41 mm
23 mm
n/a
SST
11/4”
11/4” male
Elbow
PLATINOX SLP DN10-DN32
female
Elbow
male
SST
3/8” 1/2” 3/4”
3/8” Elbow
1/2” Elbow
3/4” Elbow
1/2” male
SST
1/2” 3/4”
1/2” Elbow
3/4” Elbow
Elbow
male
female
PLATINOX SLP DN10-DN32
27.5 mm
Application
