TECHNICAL

APPLIANCES

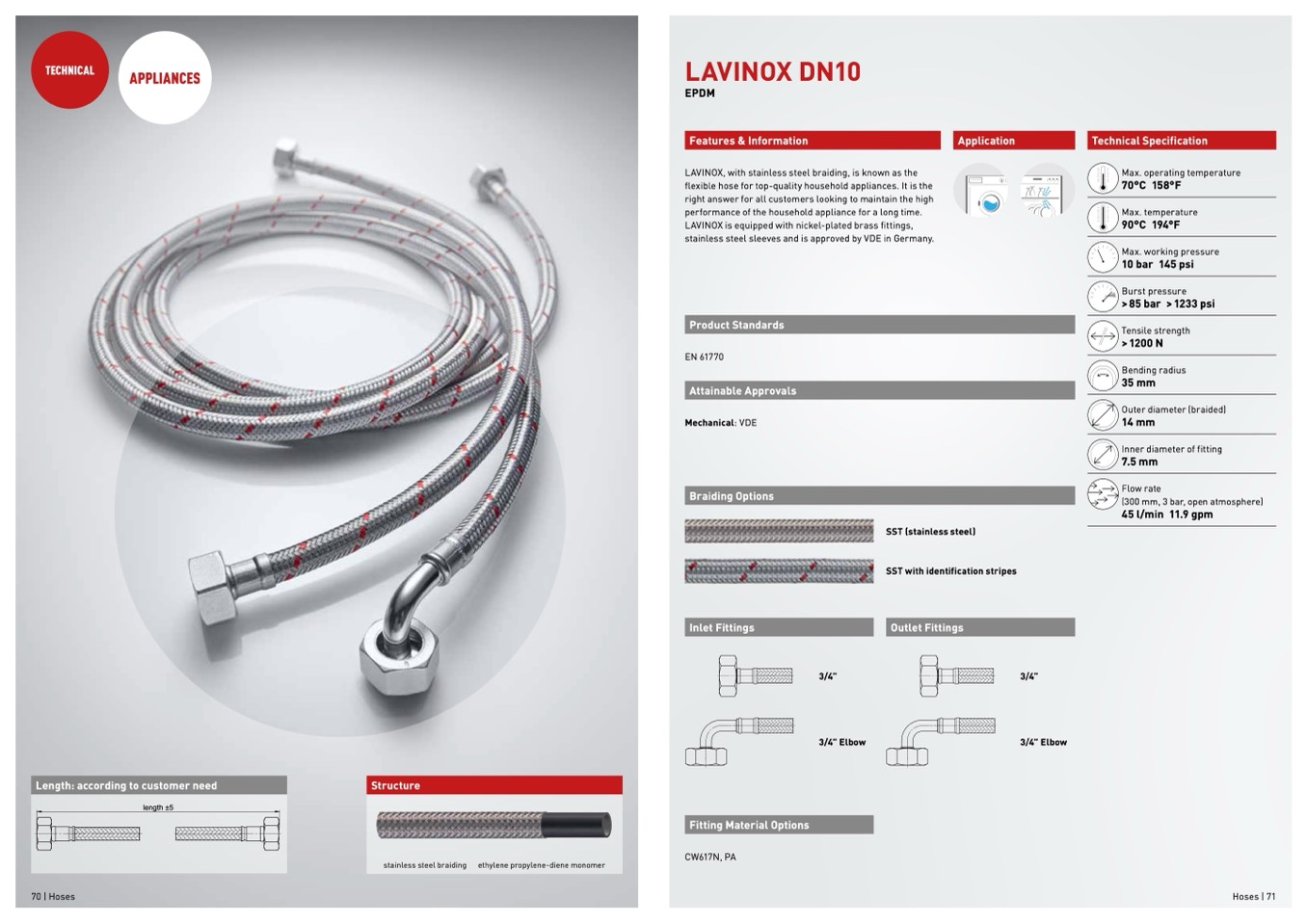

LAVINOX DN10

EPDM

Features & Information

LAVINOX, with stainless steel braiding, is known as the

flexible hose for top-quality household appliances. It is the

right answer for all customers looking to maintain the high

performance of the household appliance for a long time.

LAVINOX is equipped with nickel-plated brass fittings,

stainless steel sleeves and is approved by VDE in Germany.

Product Standards

EN 61770

Attainable Approvals

Mechanical: VDE

Braiding Options

LAVINOX DN10

Length: according to customer need

length ±5

Length: according to customer need

length ±5

Structure

3/4”

3/4"

3/4"

3/4" Elbow

3/4" Elbow

3/4” Elbow

3/4"

3/4"

3/4" Elbow

3/4" Elbow

3/4”

3/4"

3/4"

3/4" Elbow

3/4" Elbow

3/4” Elbow

3/4"

3/4"

3/4" Elbow

3/4" Elbow

70 | Hoses

Hoses | 71

l

e

n

g

t

h

±

2

0

stainless steel braiding

ethylene propylene-diene monomer

CW617N, PA

Inlet Fittings

Outlet Fittings

LAVINOX DN10

Inlet / Outlet Connections

Inlet / Outlet Connections

SST (stainless steel)

SST with identification stripes

LAVINOX DN10

Fitting Material Options

Inlet Fittings

Inlet Fittings

Inlet Fittings

Inlet Fittings

Outlet Fittings

Outlet Fittings

Outlet Fittings

Outlet Fittings

Application

Technical Specification

Max. operating temperature

70°C 158°F

Max. temperature

90°C 194°F

Max. working pressure

10 bar 145 psi

Burst pressure

>85bar >1233psi

Tensile strength

>1200N

Bending radius

35 mm

Outer diameter (braided)

14mm

Inner diameter of fitting

7.5mm

Flow rate

(300 mm, 3 bar, open atmosphere)

45 l/min 11.9 gpm

LAVINOX DN10

Inlet / Outlet Connections

Inlet / Outlet Connections
