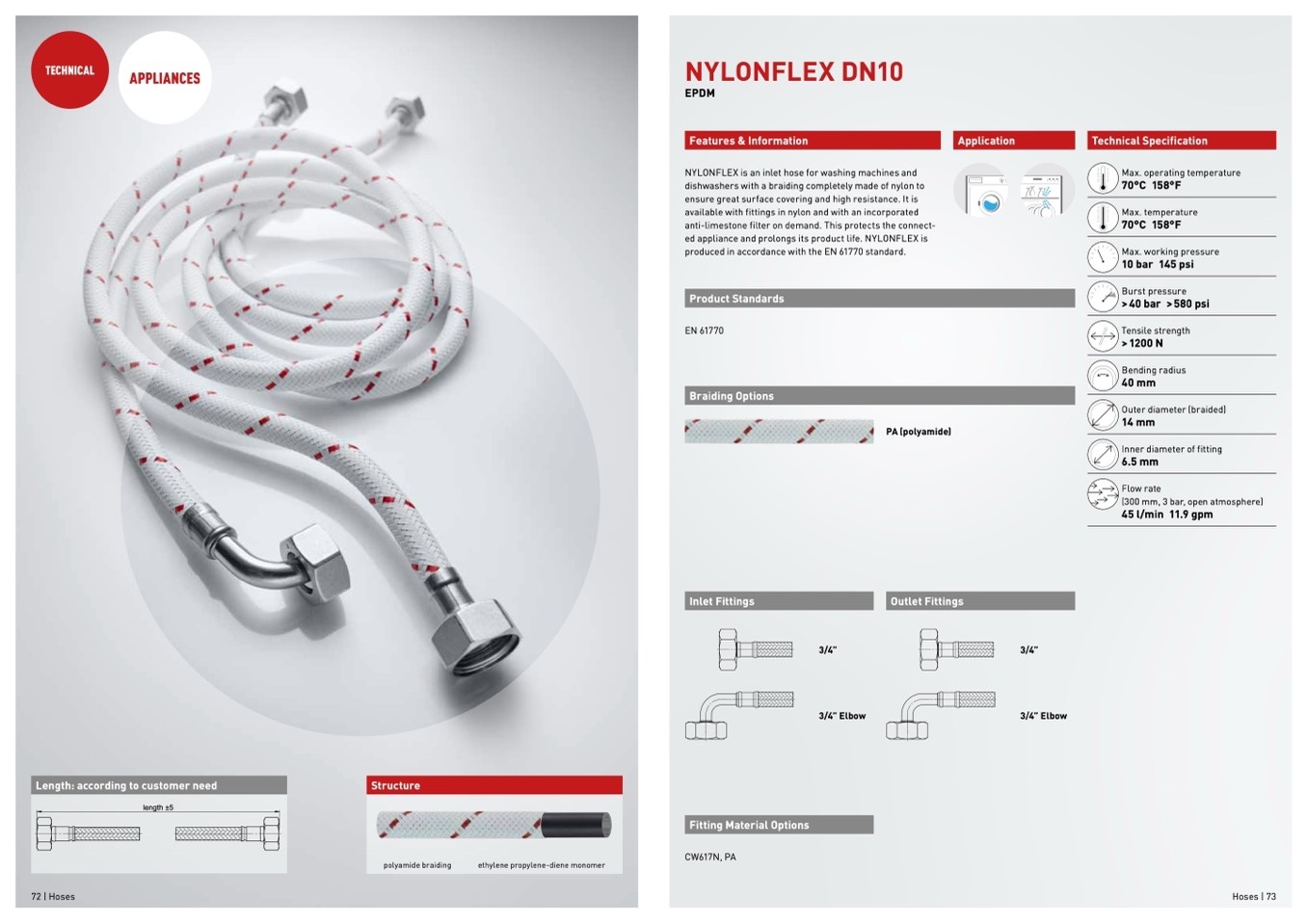

NYLONFLEX DN10

EPDM

Features & Information

NYLONFLEX is an inlet hose for washing machines and

dishwashers with a braiding completely made of nylon to

ensure great surface covering and high resistance. It is

available with fittings in nylon and with an incorporated

anti-limestone filter on demand. This protects the connect-

ed appliance and prolongs its product life. NYLONFLEX is

produced in accordance with the EN 61770 standard.

Length: according to customer need

length ±5

Length: according to customer need

length ±5

Structure

Outlet Fittings

Outlet Fittings

3/4”

3/4"

3/4"

3/4" Elbow

3/4" Elbow

3/4” Elbow

3/4"

3/4"

3/4" Elbow

3/4" Elbow

Outlet Fittings

Outlet Fittings

3/4”

3/4"

3/4"

3/4" Elbow

3/4" Elbow

3/4” Elbow

3/4"

3/4"

3/4" Elbow

3/4" Elbow

72 | Hoses

Hoses | 73

l

e

n

g

t

h

±

2

0

polyamide braiding

ethylene propylene-diene monomer

Fitting Material Options

CW617N, PA

Product Standards

EN 61770

Braiding Options

Inlet Fittings

Outlet Fittings

LAVINOX DN10

LAVINOX DN10

LAVINOX DN10

Inlet / Outlet Connections

Inlet / Outlet Connections

LAVINOX DN10

Inlet / Outlet Connections

Inlet / Outlet Connections

Inlet Fittings

Inlet Fittings

Inlet Fittings

Inlet Fittings

PA (polyamide)

Application

Technical Specification

Max. operating temperature

70°C 158°F

Max. temperature

70°C 158°F

Max. working pressure

10 bar 145 psi

Burst pressure

>40 bar >580 psi

Tensile strength

>1200N

Bending radius

40 mm

Outer diameter (braided)

14mm

Inner diameter of fitting

6.5 mm

Flow rate

(300 mm, 3 bar, open atmosphere)

45 l/min 11.9 gpm
