TECHNICAL
APPLIANCES

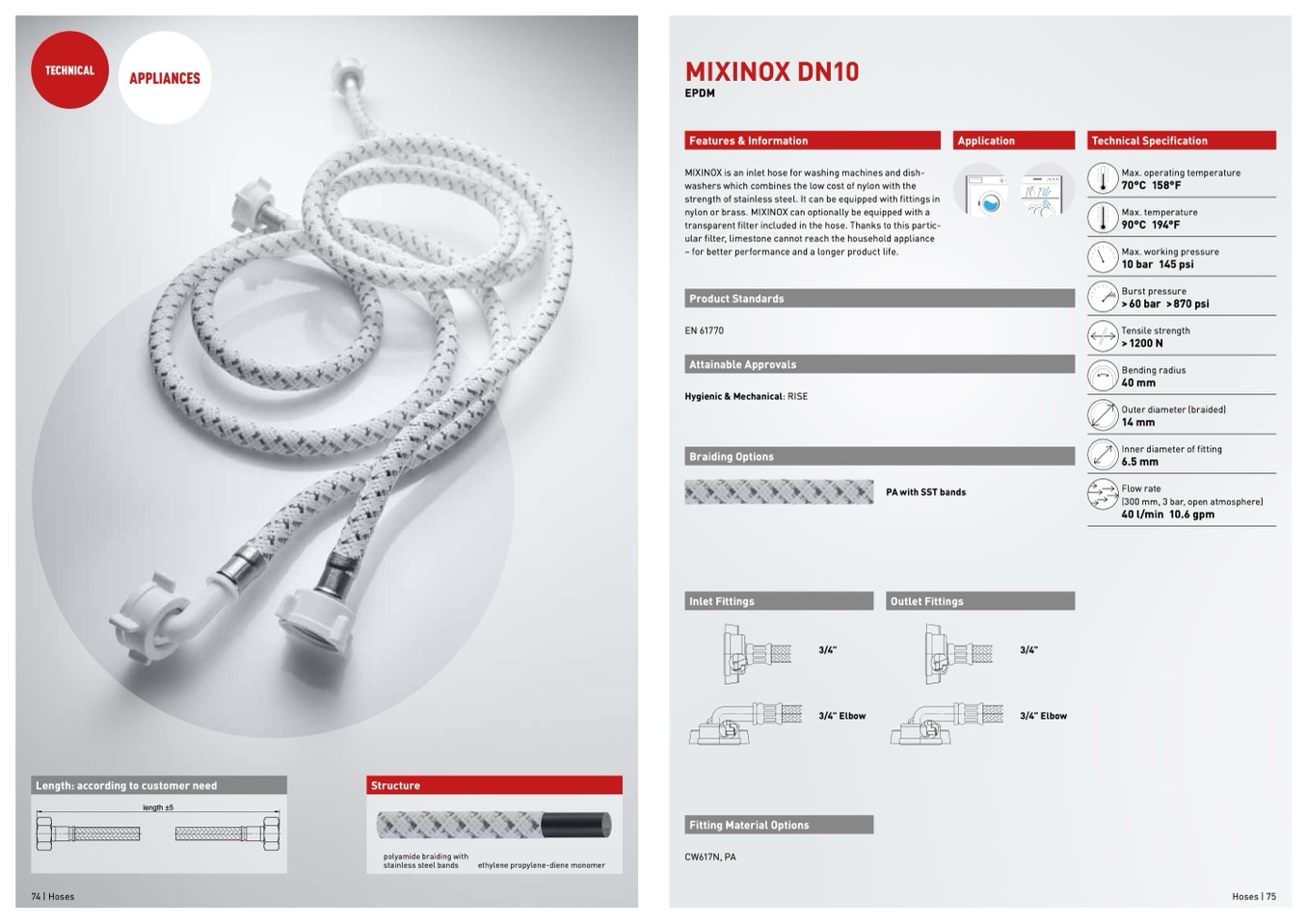

MIXINOX DN10
EPDM
Features & Information
MIXINOX is an inlet hose for washing machines and dish-
washers which combines the low cost of nylon with the
strength of stainless steel. It can be equipped with fittings in
nylon or brass. MIXINOX can optionally be equipped with a
transparent filter included in the hose. Thanks to this partic-
ular filter, limestone cannot reach the household appliance
– for better performance and a longer product life.
Length: according to customer need
length ±5
Length: according to customer need
length ±5
3/4”
3/4” Elbow
PA with SST bands
CF 3/4
F 3/8
Outlet Fittings
CF 3/8
F 3/4
CF 3/4
F 3/8
F 3/4
3/4”
3/4” Elbow
74 | Hoses
Hoses | 75
l
e
n
g
t
h
±
2
0
Structure
polyamide braiding with
stainless steel bands
ethylene propylene-diene monomer
Fitting Material Options
CW617N, PA
Product Standards
EN 61770
Attainable Approvals
Hygienic & Mechanical: RISE
Braiding Options
Inlet Fittings
CF 3/8
CF 3/8
CF 3/4
F 3/8
CF 3/8
F 3/4
CF 3/4
F 3/8
F 3/4
Max. operating temperature
70°C 158°F
Max. temperature
90°C 194°F
Max. working pressure
10 bar 145 psi
Burst pressure
>60 bar >870 psi
Tensile strength
>1200N
Bending radius
40 mm
Outer diameter (braided)
14mm
Inner diameter of fitting
6.5 mm
Flow rate
(300 mm, 3 bar, open atmosphere)
40 l/min 10.6 gpm
Application
Technical Specification
