KITCHEN
& BATH
PLUMBING
TAP & SUPPLY
HOSES

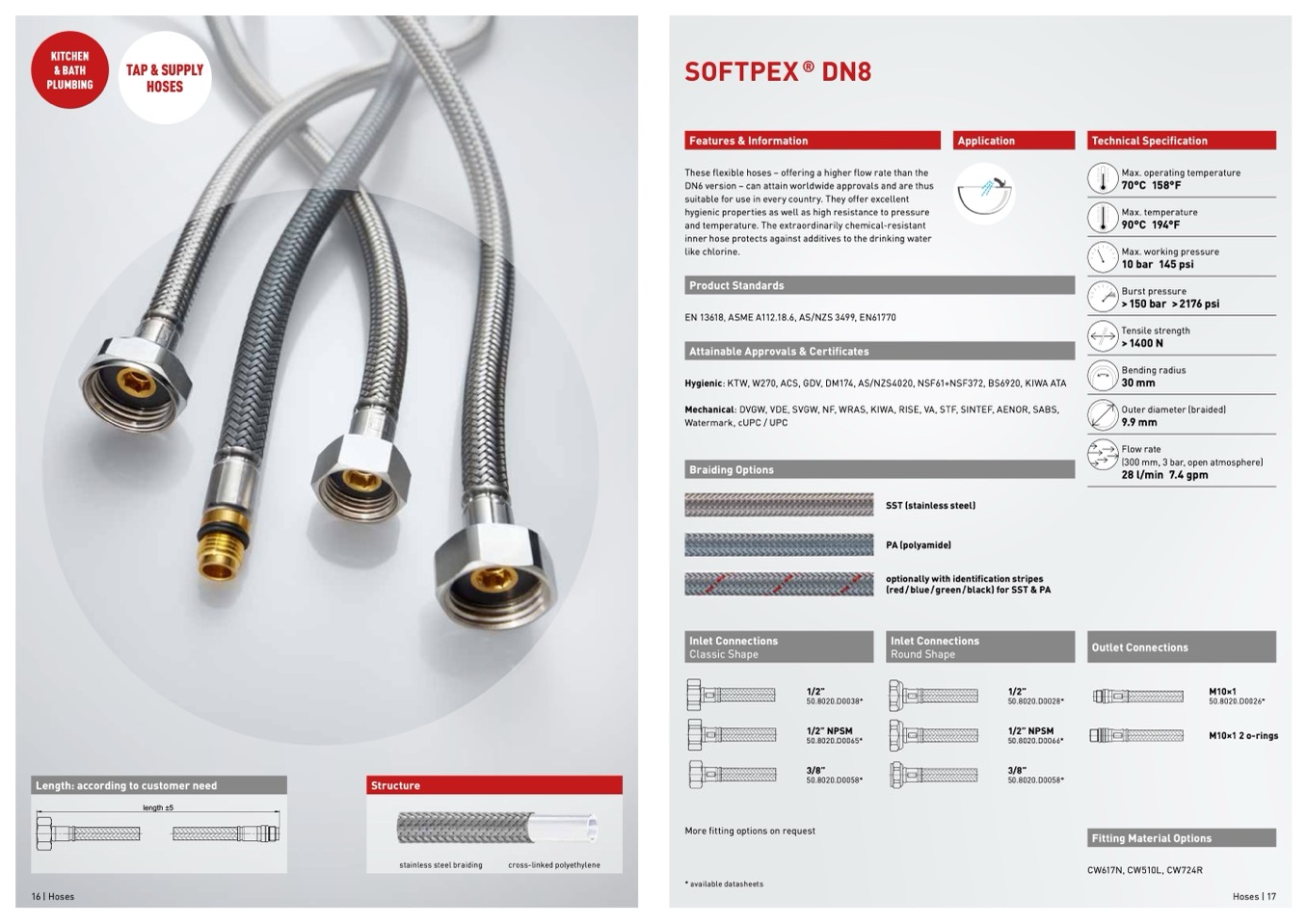

SOFTPEX
®
DN8
Features & Information
These flexible hoses – offering a higher flow rate than the
DN6 version – can attain worldwide approvals and are thus
suitable for use in every country. They offer excellent
hygienic properties as well as high resistance to pressure
and temperature. The extraordinarily chemical-resistant
inner hose protects against additives to the drinking water
like chlorine.
Product Standards
EN 13618, ASME A112.18.6, AS/NZS 3499, EN61770
Attainable Approvals & Certificates
Length: according to customer need
Length: according to customer need
length ±5
1/2" NPSM
1/2" NPSM
3/8”
16 | Hoses
Hoses | 17
length ±5
* available datasheets
Structure
50.8020.D0058*
M10x1 2 o-rings
stainless steel braiding
cross-linked polyethylene
CW617N, CW510L, CW724R
Hygienic: KTW, W270, ACS, GDV, DM174, AS/NZS4020, NSF61+NSF372, BS6920, KIWA ATA
Mechanical: DVGW, VDE, SVGW, NF, WRAS, KIWA, RISE, VA, STF, SINTEF, AENOR, SABS,
Watermark, cUPC / UPC
Braiding Options
SOFTPEX DN8
Inlet Connections (Classic Shape)
SOFTPEX DN8
Inlet Connections (Classic Shape)
1/2"
SST (stainless steel)
PA (polyamide)
50.8020.D0038
Inlet Connections (Classic Shape)
50.8020.D0028
Inlet Connections (Round Shape)
Inlet Connections
Inlet Connections
Classic Shape
1/2"
50.8020.D0038
Round Shape
1/2"
50.8020.D0028
More fitting options on request
3/8"
50.8020.D0058
3/8"
50.8020.D0058
3/8"
50.8020.D0027
3/8"
50.8020.D0027
Fitting Material Options
SOFTPEX DN8
SOFTPEX DN8
M10x1
50.8020.D0026
M10×1
M10x1
1/2”
1/2" NPSM
50.8020.D003685
1/2”
1/2" NPSM
50.8020.D006268
50.8020.D0038*
50.8020.D0028*
50.8020.D0026*
1/2” NPSM
1/2” NPSM
1/2" NPSM
1/2" NPSM
M10×1 2 o-rings
50.8020.D0065
50.8020.D0066
M10x1 2 o-rings
50.8020.D0065*
50.8020.D0066*
3/8”
3/8"
50.8020.D0058
50.8020.D0065
35/08."8020.D0066
50.8020.D0058*
50.8020.D0027
Application
Technical Specification
Max. operating temperature
70°C 158°F
Max. temperature
90°C 194°F
Max. working pressure
10 bar 145 psi
Burst pressure
>150bar >2176psi
Tensile strength
>1400N
Bending radius
30 mm
Outer diameter (braided)
9.9mm
Flow rate
(300 mm, 3 bar, open atmosphere)
28 l/min 7.4 gpm
SOFTPEX DN8
Inlet Connections (Round Shape)
SOFTPEX DN8
Outlet Connections
SOFTPEX DN8
Outlet Connections
Outlet Connections
optionally with identification stripes
(red / blue / green / black) for SST & PA
SOFTPEX DN8
Inlet Connections (Round Shape)
1/2"
50.8020.D0026
