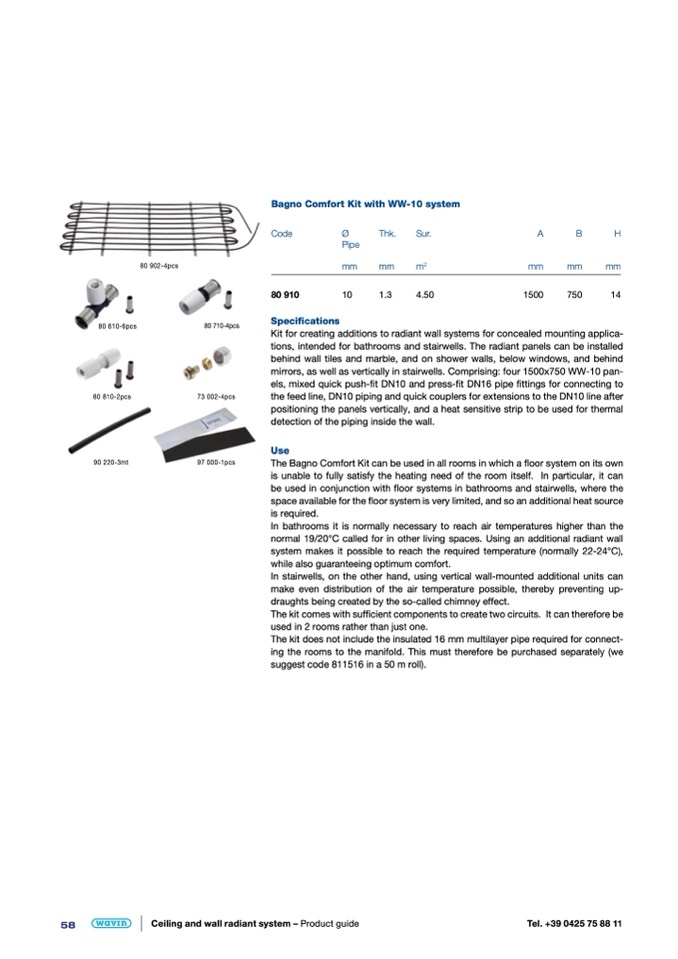

Bagno Comfort Kit with WW-10 system

Code

Ø

Thk.

Sur.

Pipe

A

B

H

mm

mm

mm

1500

750

14

80 610-6pcs

80 810-2pcs

90 220-3mt

80 710-4pcs

73 002-4pcs

97 000-1pcs

80 910

Specifications

Kit for creating additions to radiant wall systems for concealed mounting applica-

tions, intended for bathrooms and stairwells. The radiant panels can be installed

behind wall tiles and marble, and on shower walls, below windows, and behind

mirrors, as well as vertically in stairwells. Comprising: four 1500x750 WW-10 pan-

els, mixed quick push-fit DN10 and press-fit DN16 pipe fittings for connecting to

the feed line, DN10 piping and quick couplers for extensions to the DN10 line after

positioning the panels vertically, and a heat sensitive strip to be used for thermal

detection of the piping inside the wall.

Use

The Bagno Comfort Kit can be used in all rooms in which a floor system on its own

is unable to fully satisfy the heating need of the room itself. In particular, it can

be used in conjunction with floor systems in bathrooms and stairwells, where the

space available for the floor system is very limited, and so an additional heat source

is required.

In bathrooms it is normally necessary to reach air temperatures higher than the

normal 19/20°C called for in other living spaces. Using an additional radiant wall

system makes it possible to reach the required temperature (normally 22-24°C),

while also guaranteeing optimum comfort.

In stairwells, on the other hand, using vertical wall-mounted additional units can

make even distribution of the air temperature possible, thereby preventing up-

draughts being created by the so-called chimney effect.

The kit comes with sufficient components to create two circuits. It can therefore be

used in 2 rooms rather than just one.

The kit does not include the insulated 16 mm multilayer pipe required for connect-

ing the rooms to the manifold. This must therefore be purchased separately (we

suggest code 811516 in a 50 m roll).
