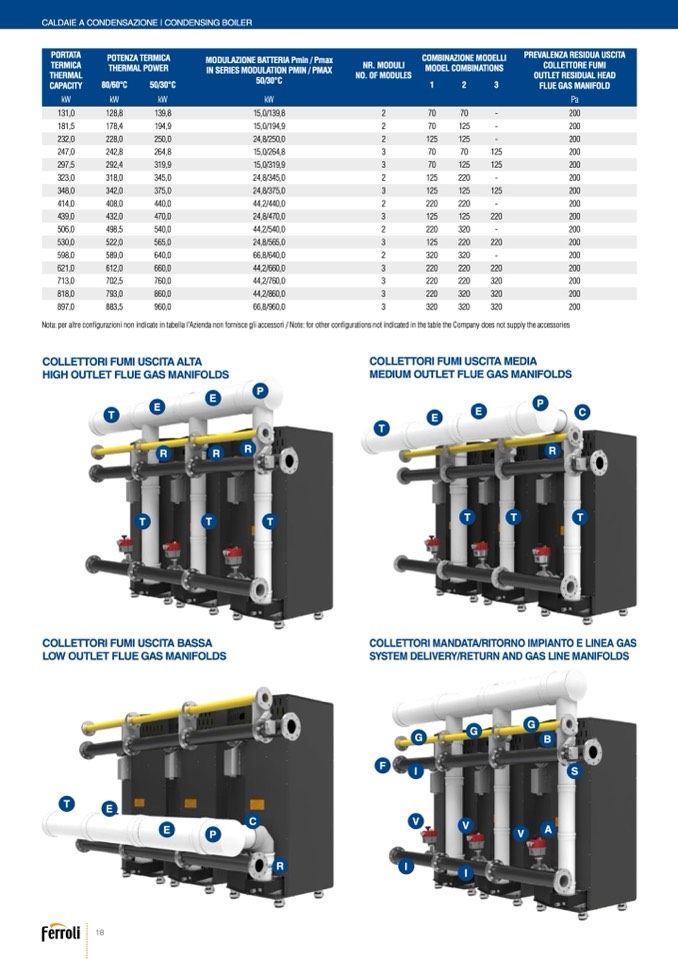

CALDAIE A CONDENSAZIONE | CONDENSING BOILER
PORTATA
TERMICA
THERMAL
CAPACITY
POTENZA TERMICA
THERMAL POWER
MODULAZIONE BATTERIA Pmin / Pmax
IN SERIES MODULATION PMIN / PMAX
50/30°C
NR. MODULI
NO. OF MODULES
COMBINAZIONE MODELLI
MODEL COMBINATIONS
PREVALENZA RESIDUA USCITA
COLLETTORE FUMI
OUTLET RESIDUAL HEAD
FLUE GAS MANIFOLD
80/60°C
50/30°C
1
2
3
kW
kW
kW
kW
Pa
131,0
128,8
139,8
15,0/139,8
2
70
70
-
200
181,5
178,4
194,9
15,0/194,9
2
70
125
-
200
232,0
228,0
250,0
24,8/250,0
2
125
125
-
200
247,0
242,8
264,8
15,0/264,8
3
70
70
125
200
297,5
292,4
319,9
15,0/319,9
3
70
125
125
200
323,0
318,0
345,0
24,8/345,0
2
125
220
-
200
348,0
342,0
375,0
24,8/375,0
3
125
125
125
200
414,0
408,0
440,0
44,2/440,0
2
220
220
-
200
439,0
432,0
470,0
24,8/470,0
3
125
125
220
200
506,0
498,5
540,0
44,2/540,0
2
220
320
-
200
530,0
522,0
565,0
24,8/565,0
3
125
220
220
200
598,0
589,0
640,0
66,8/640,0
2
320
320
-
200
621,0
612,0
660,0
44,2/660,0
3
220
220
220
200
713,0
702,5
760,0
44,2/760,0
3
220
220
320
200
818,0
793,0
860,0
44,2/860,0
3
220
320
320
200
897,0
883,5
960,0
66,8/960,0
3
320
320
320
200
Nota: per altre configurazioni non indicate in tabella l’Azienda non fornisce gli accessori / Note: for other configurations not indicated in the table the Company does not supply the accessories
COLLETTORI FUMI USCITA ALTA
HIGH OUTLET FLUE GAS MANIFOLDS
COLLETTORI FUMI USCITA MEDIA
MEDIUM OUTLET FLUE GAS MANIFOLDS
T
E
E
R
R
P
R
E
T
E
P
C
R
T
T
T
COLLETTORI FUMI USCITA BASSA
LOW OUTLET FLUE GAS MANIFOLDS
COLLETTORI MANDATA/RITORNO IMPIANTO E LINEA GAS
SYSTEM DELIVERY/RETURN AND GAS LINE MANIFOLDS
T
T
T
G
B
G
I
S
E
C
V
V
A
P
V
R
I
G
F
T
E
I
