100

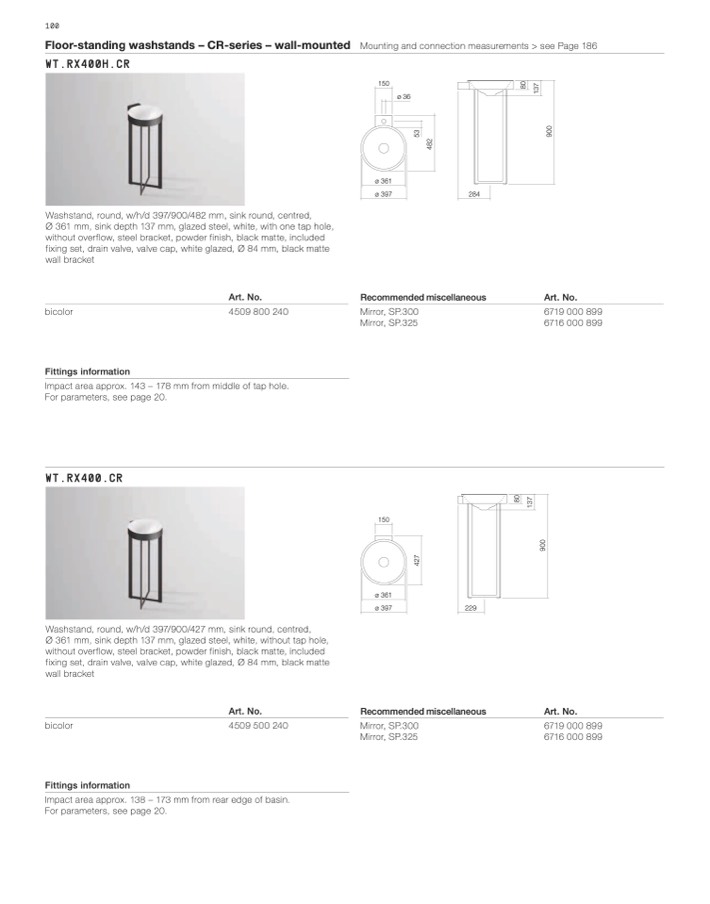

Floor-standing washstands – CR-series – wall-mounted
WT.RX400H.CR
Mounting and connection measurements > see Page 186
150
ø 36
ø 361
Washstand, round, w/h/d 397/900/482 mm, sink round, centred,
Ø 361 mm, sink depth 137 mm, glazed steel, white, with one tap hole,
without overflow, steel bracket, powder finish, black matte, included
fixing set, drain valve, valve cap, white glazed, Ø 84 mm, black matte
wall bracket
Art. No.
bicolor
4509 800 240
Fittings information
Impact area approx. 143 – 178 mm from middle of tap hole.
For parameters, see page 20.
WT.RX400.CR
Recommended miscellaneous
Art. No.
6719 000 899
6716 000 899
Washstand, round, w/h/d 397/900/427 mm, sink round, centred,
Ø 361 mm, sink depth 137 mm, glazed steel, white, without tap hole,
without overflow, steel bracket, powder finish, black matte, included
fixing set, drain valve, valve cap, white glazed, Ø 84 mm, black matte
wall bracket
Art. No.
bicolor
4509 500 240
Fittings information
Impact area approx. 138 – 173 mm from rear edge of basin.
For parameters, see page 20.
Recommended miscellaneous
Mirror, SP.300
Mirror, SP.325
Art. No.
6719 000 899
6716 000 899
ø 397
284
Mirror, SP.300
Mirror, SP.325
150
ø 361
ø 397
229
