106

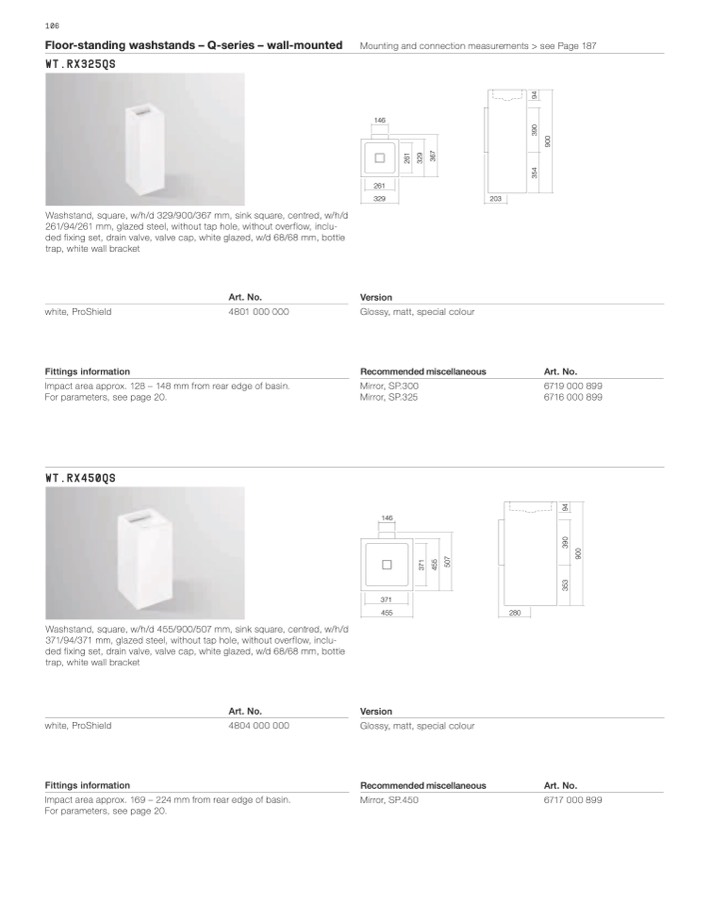

Floor-standing washstands – Q-series – wall-mounted

WT.RX325QS

Mounting and connection measurements > see Page 187

146

261

Washstand, square, w/h/d 329/900/367 mm, sink square, centred, w/h/d

261/94/261 mm, glazed steel, without tap hole, without overflow, inclu-

ded fixing set, drain valve, valve cap, white glazed, w/d 68/68 mm, bottle

trap, white wall bracket

Art. No.

white, ProShield

4801 000 000

Fittings information

Impact area approx. 128 – 148 mm from rear edge of basin.

For parameters, see page 20.

WT.RX450QS

Version

Glossy, matt, special colour

Recommended miscellaneous

Mirror, SP.300

Mirror, SP.325

146

Art. No.

6719 000 899

6716 000 899

329

203

371

Washstand, square, w/h/d 455/900/507 mm, sink square, centred, w/h/d

371/94/371 mm, glazed steel, without tap hole, without overflow, inclu-

ded fixing set, drain valve, valve cap, white glazed, w/d 68/68 mm, bottle

trap, white wall bracket

Art. No.

white, ProShield

4804 000 000

Fittings information

Impact area approx. 169 – 224 mm from rear edge of basin.

For parameters, see page 20.

Version

Glossy, matt, special colour

Recommended miscellaneous

Mirror, SP.450

Art. No.

6717 000 899

455

280
